Austin Fire Department, TX Heavy Rescue #1202

Austin Fire Department, TX Heavy Rescue #1202

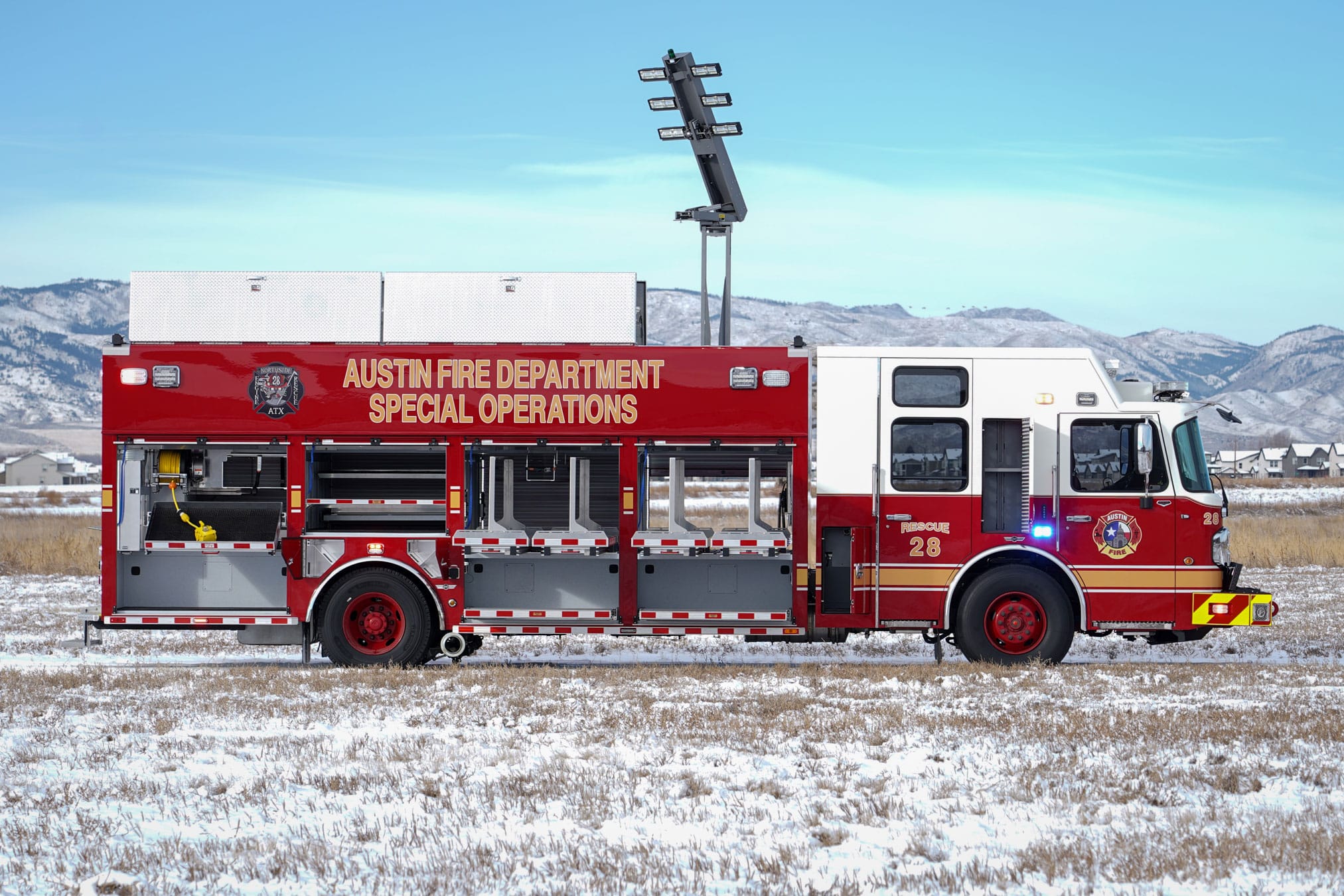

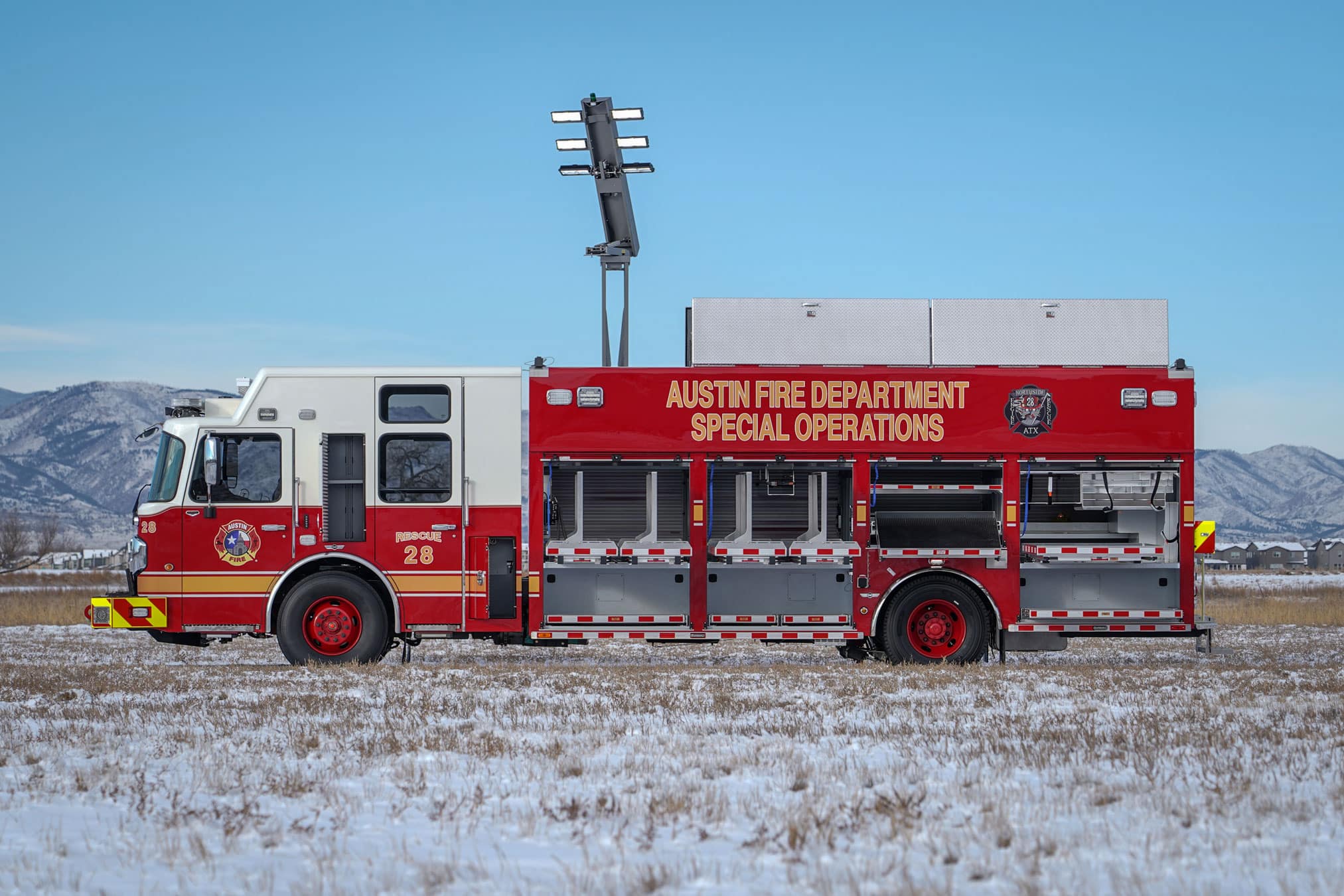

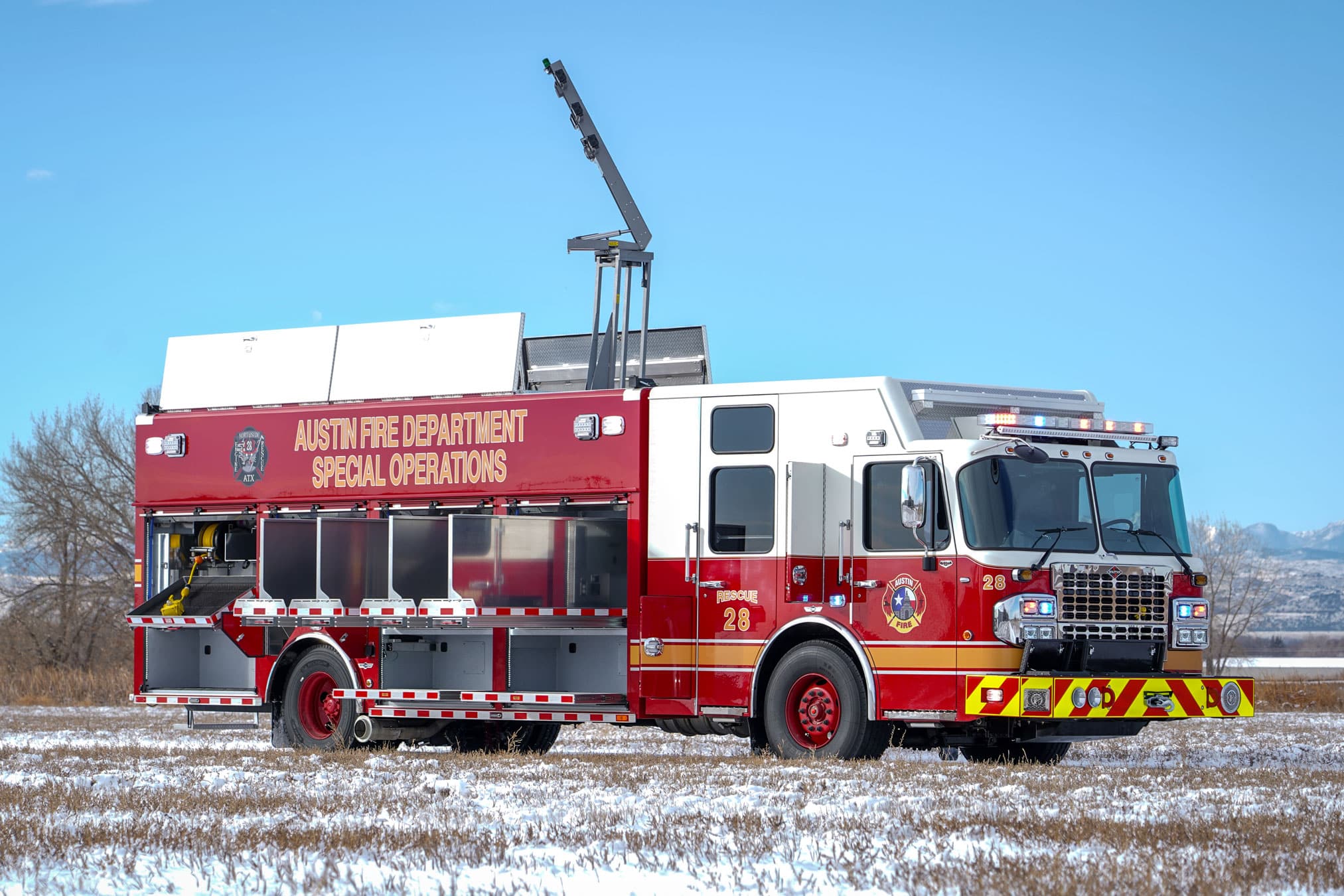

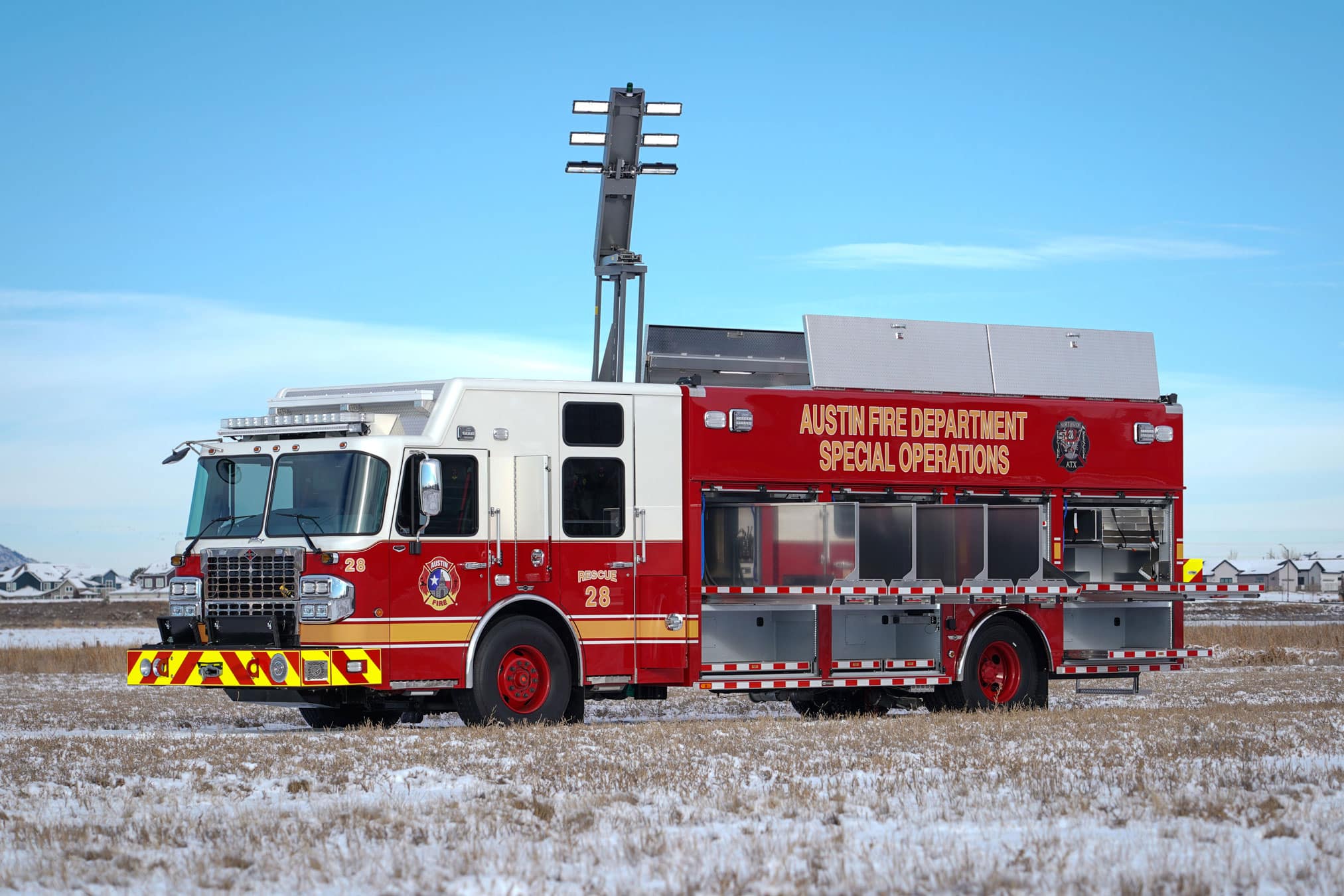

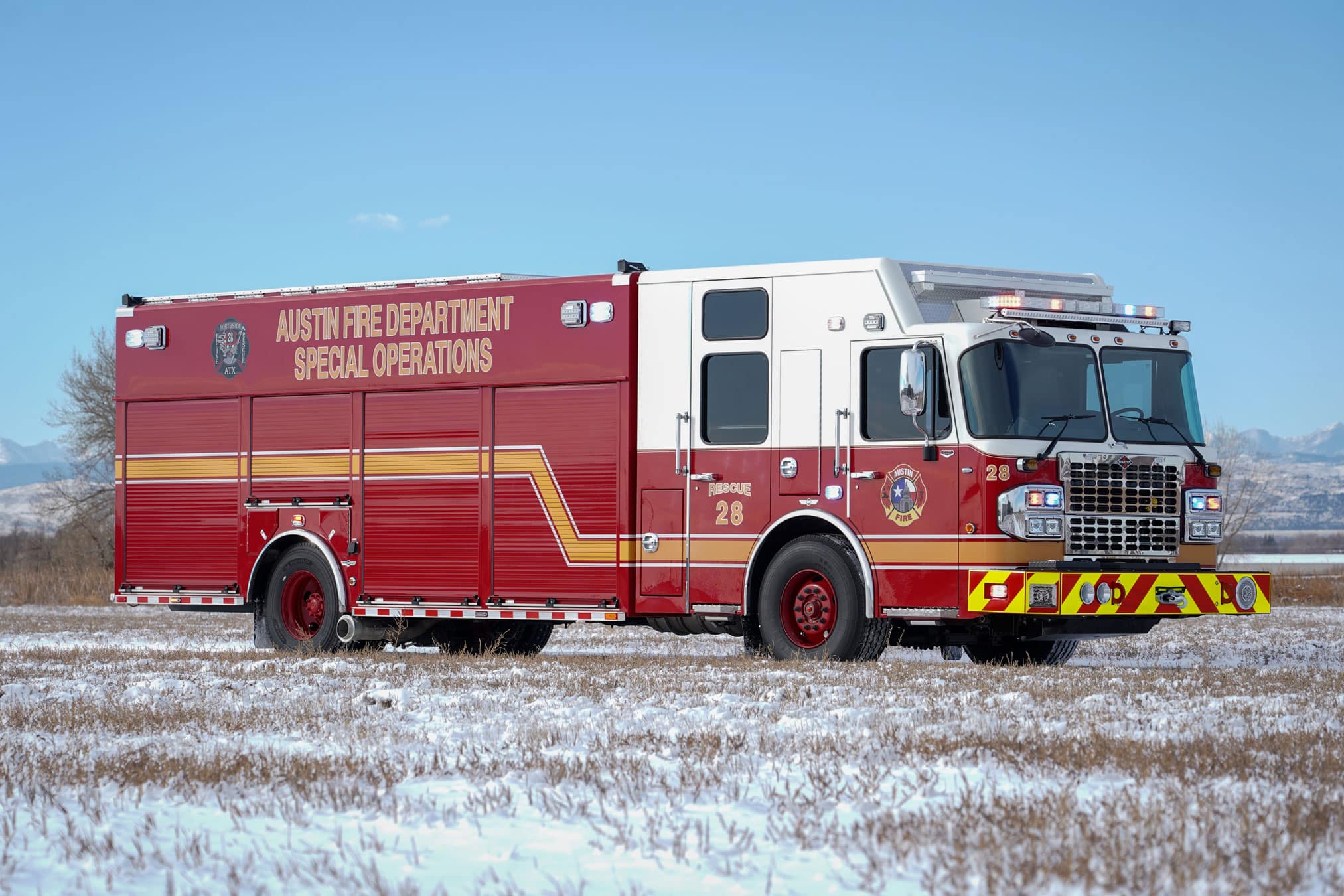

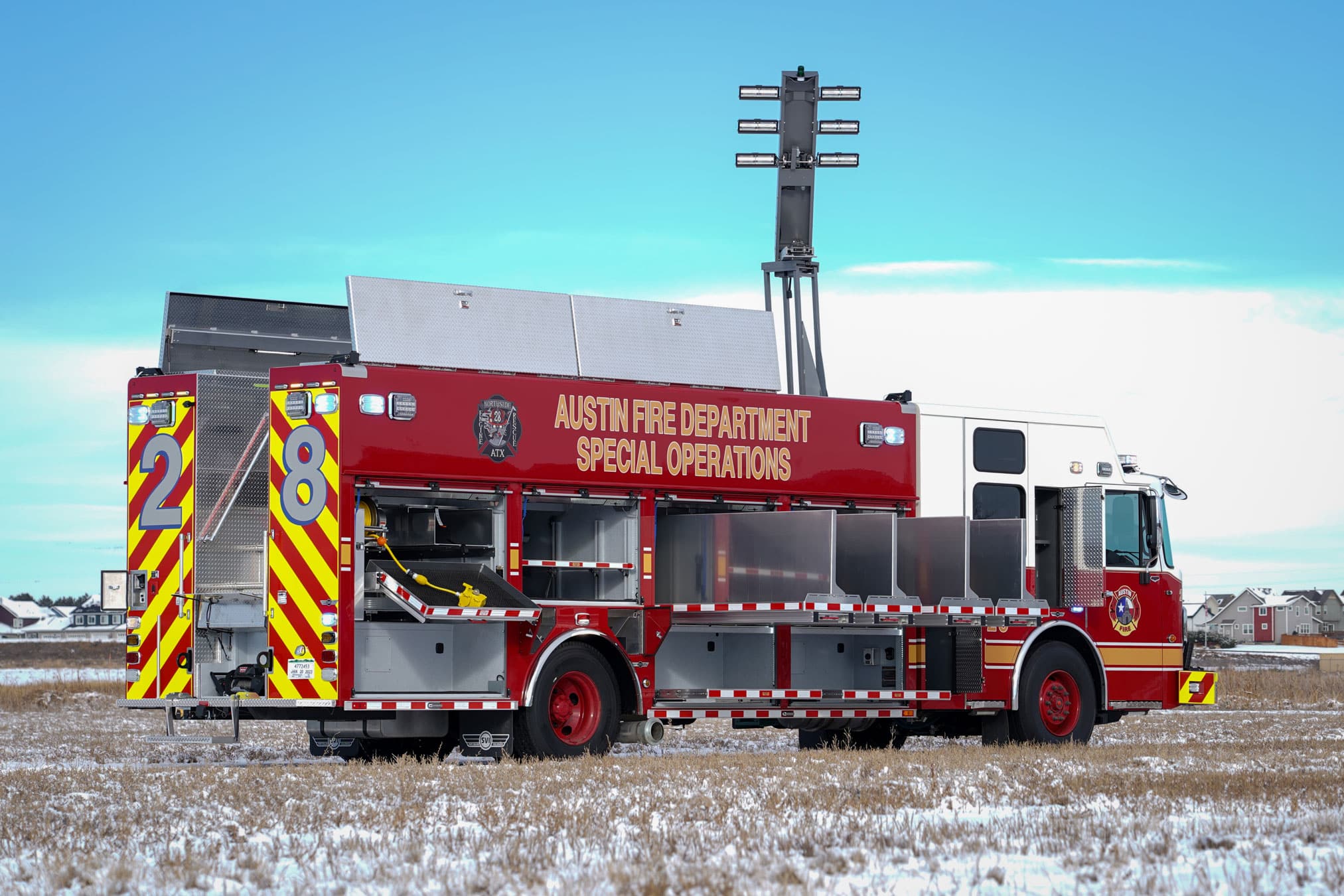

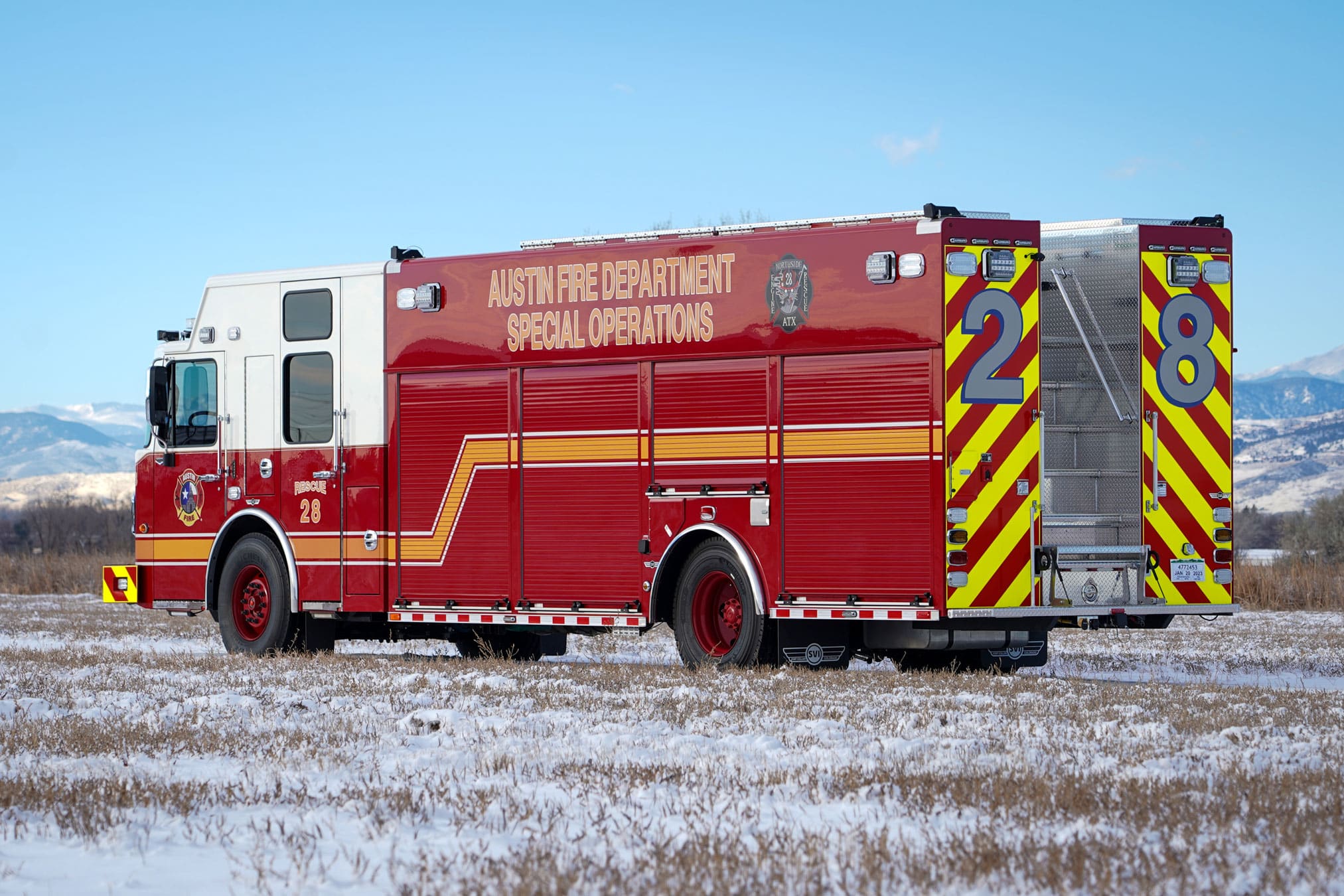

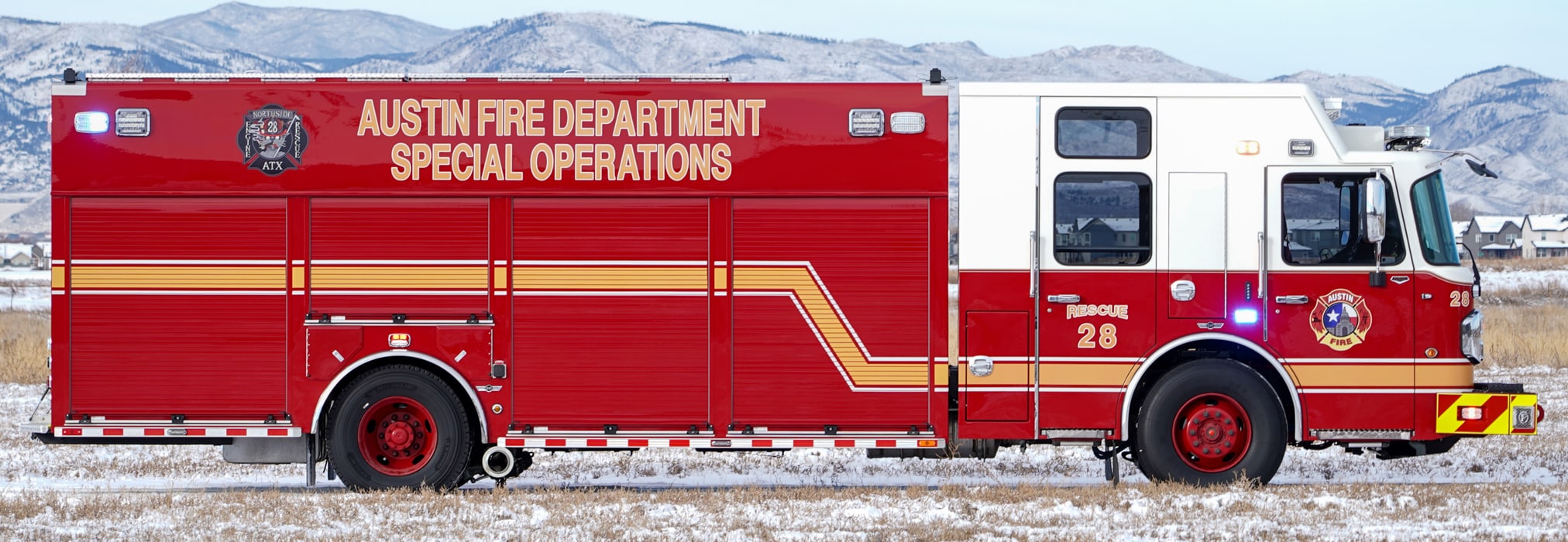

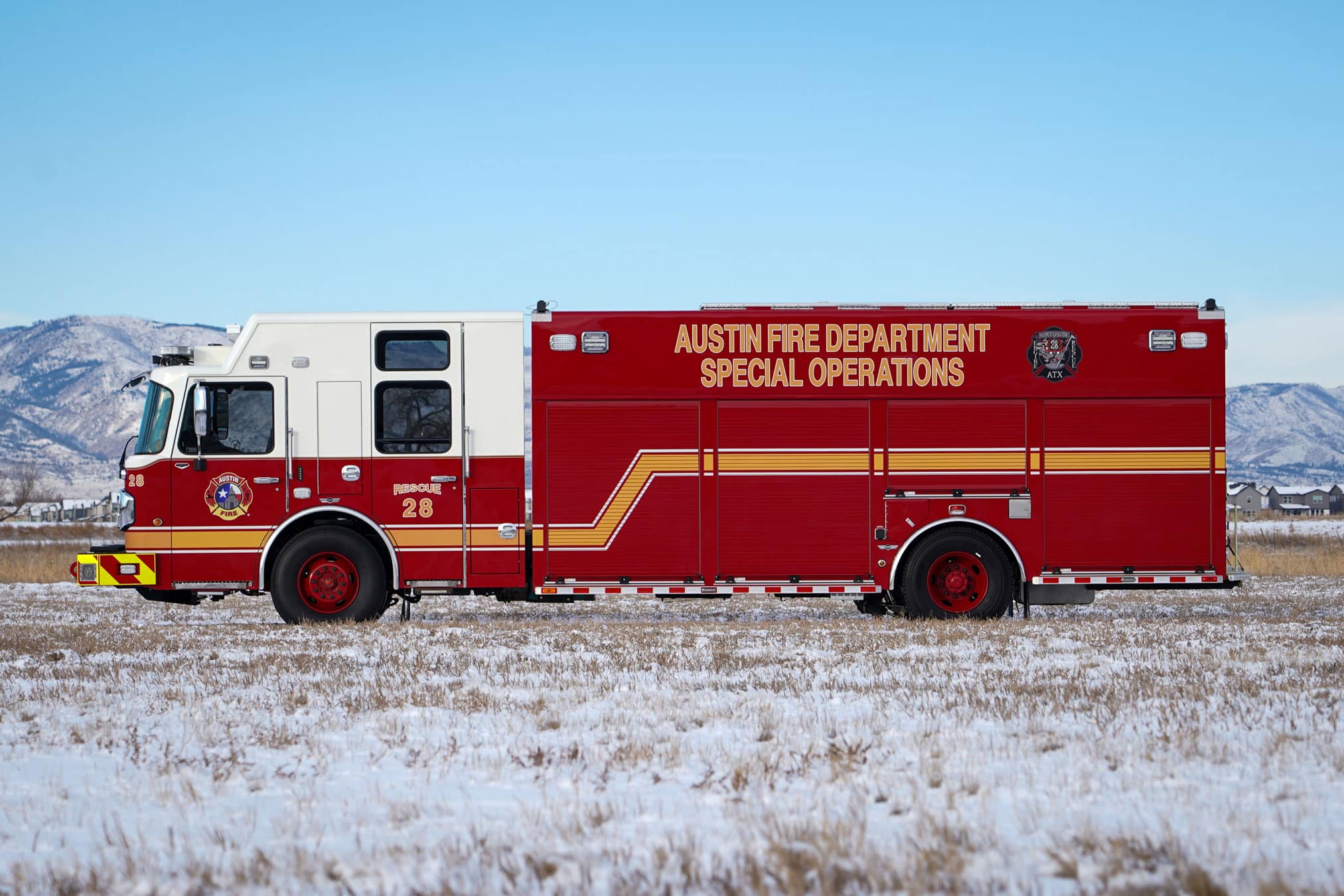

When spec’ing its new Heavy Rescue, Austin Fire Department chose an 22′ aluminum SVI body mounted on a Spartan Gladiator chassis, which houses an X15 Cummins engine and Allison 4000 6-speed transmission. This Heavy Rescue apparatus comes with a rear suspension kneeling feature, Warn M15000 electric winch, Hannay ECR1616-17-18 electric cable reel and much more.

For more information about this apparatus, choose one of the options below or contact us for more details.

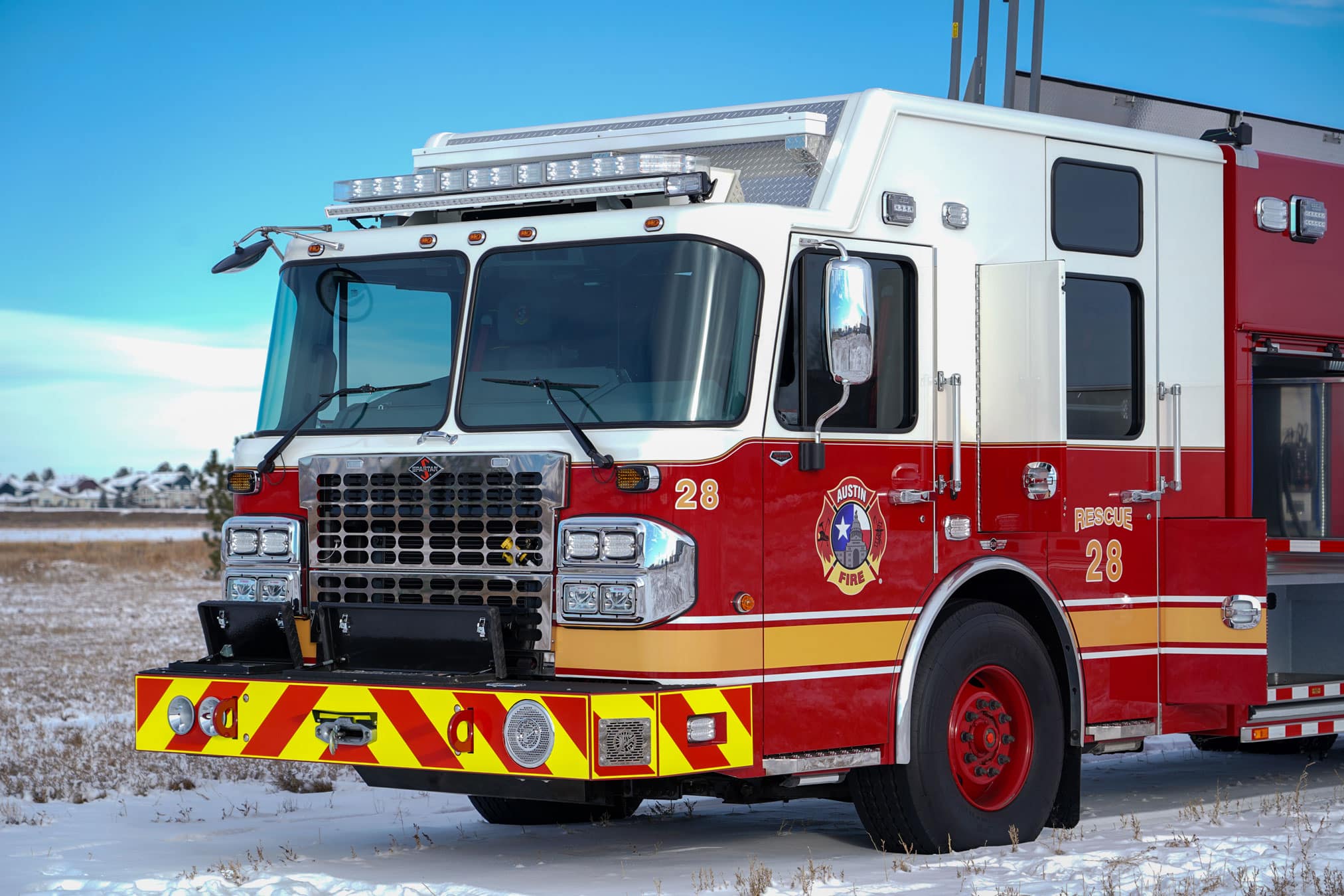

Cab: Spartan Gladiator Raised Roof
Engine: Cummins X15
Transmission: Allison 4000 EVS
Wheelbase: 238″


Material: Aluminum
Body Length: 22′
Overall Height: 10′-9”
Overall Length: 37’– 7″


  • Rear Suspension Kneeling Feature
  • 10,000 lbs. Class IV Trailer Hitch
  • Front Bumper Warn M15000 Electric Winch
  • Front Bumper Warn M15000 Electric Winch
  • Portable Warn Zeon 8 Multi-Mount Winch
  • Hannay ECR1616-17-18 Electric Cable Reel
  • Command Light CL Series Light Tower
  • FireTech Scene Lighting
  • Roof Access Fold-Down Step
  • OnScene Solutions Access LED Compartment Lighting

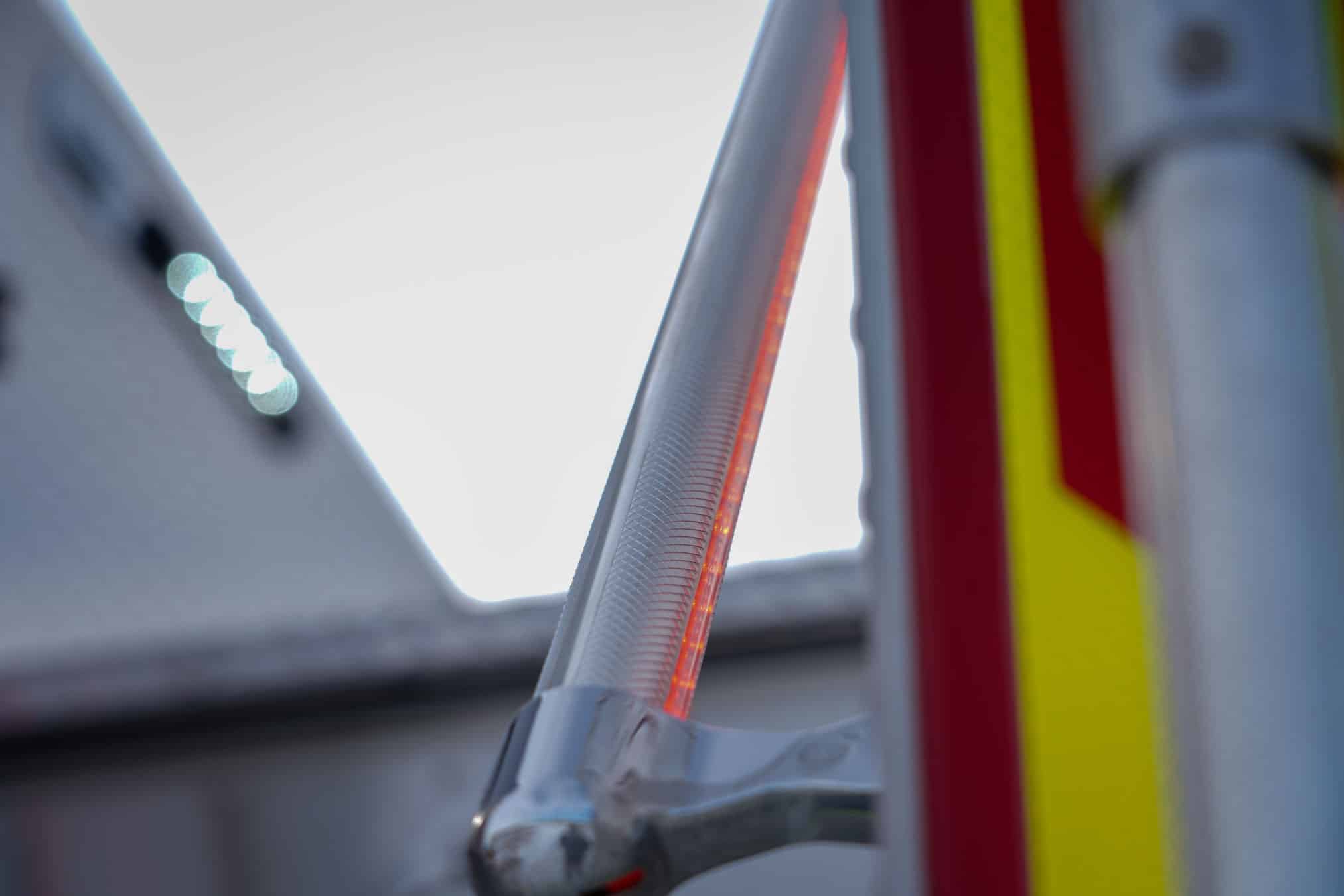

  • Hansen International Backlit Handrails
