WALK-IN RESCUES


WALK-IN RESCUE TRUCKS


Escape the elements with a Walk-In Rescue Truck or a Walk-Thru Rescue Apparatus, built on your choice of custom chassis. Access the interior of this heavy-duty body through the cab interior, a side door or rear entry — or configure for multiple access points. Work stations can be added for command center capability to create the ultimate walk-in rescue fire truck.


BODY LENGTH

16'-26'

CAB/CHASSIS

CHASSIS: Single- or tandem-axle custom chassis (Spartan or Sutphen)
CAB: 2, 3 or 4 doors

Construction

SUB-FRAME: Aluminum or stainless steel
BODY MATERIAL: 3/16″ aluminum or 12 ga. stainless steel
BODY CONSTRUCTION: Formed double-panel construction

Compartments

USABLE DEPTH (BELOW FRAME): 24″
USABLE DEPTH (ABOVE FRAME): 96″
DOORS: Hinged or roll-up

WALK-IN Configurations

• Cab walk-thru entrance
• Side- or rear-body entrance
• Individual or bench seating
• Desk and work stations
• Storage cabinets with hinged doors, roll-up doors or cargo nets
• Climate control (ACs, fridges)

Exterior Equipment

• PTO, hydraulic or diesel generators
• Light towers and traffic flow boards
• Hydraulic rescue tool systems
• Winches, receivers and tie-off points
• Electric-powered awnings
• Cascade air systems
• Trailer hitch


walk-in rescue deliveries — specs, drawings and photos

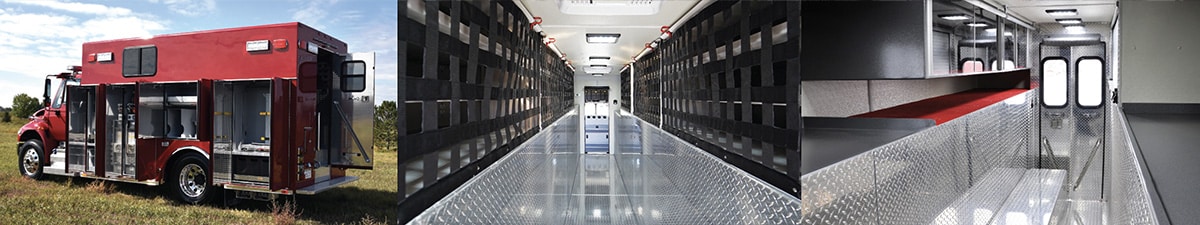

LEFT: Smaller walk-in units available.    CENTER: Walk-in interior with net-secured storage.      RIGHT: Multiple entrance configurations.
