Cedar Park, TX Fire Department Heavy Rescue #1106

Cedar Park, TX Fire Department Heavy Rescue #1106

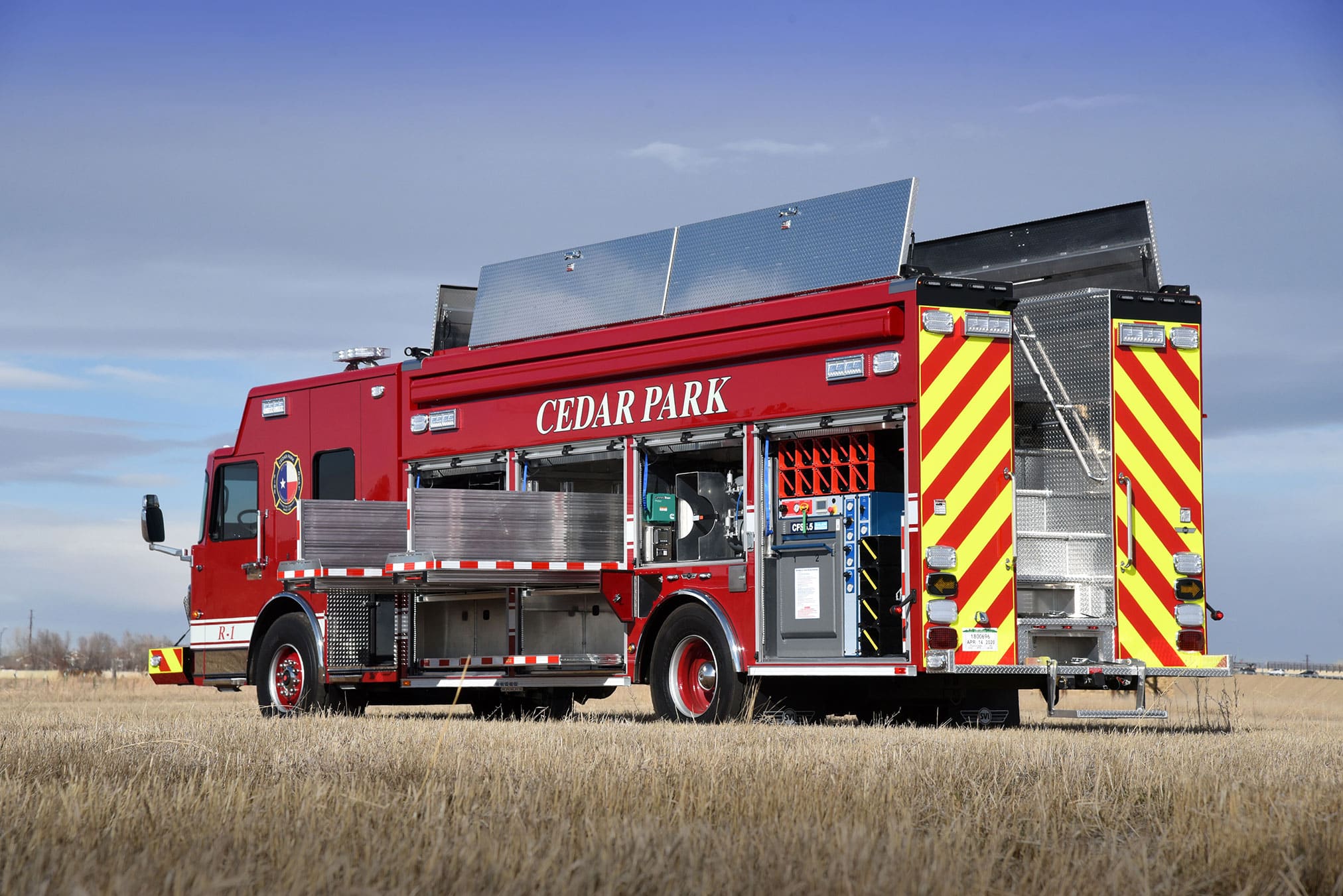

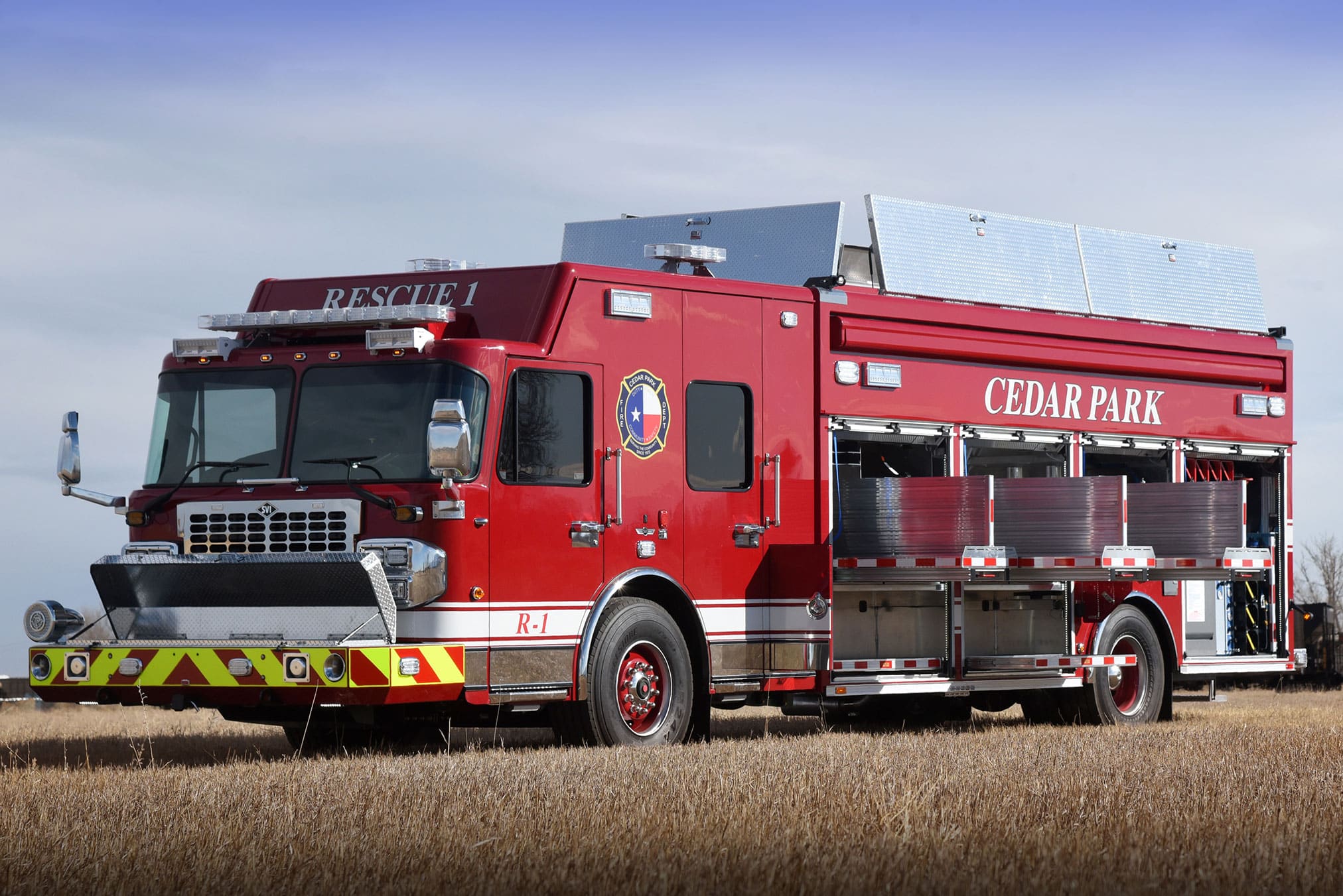

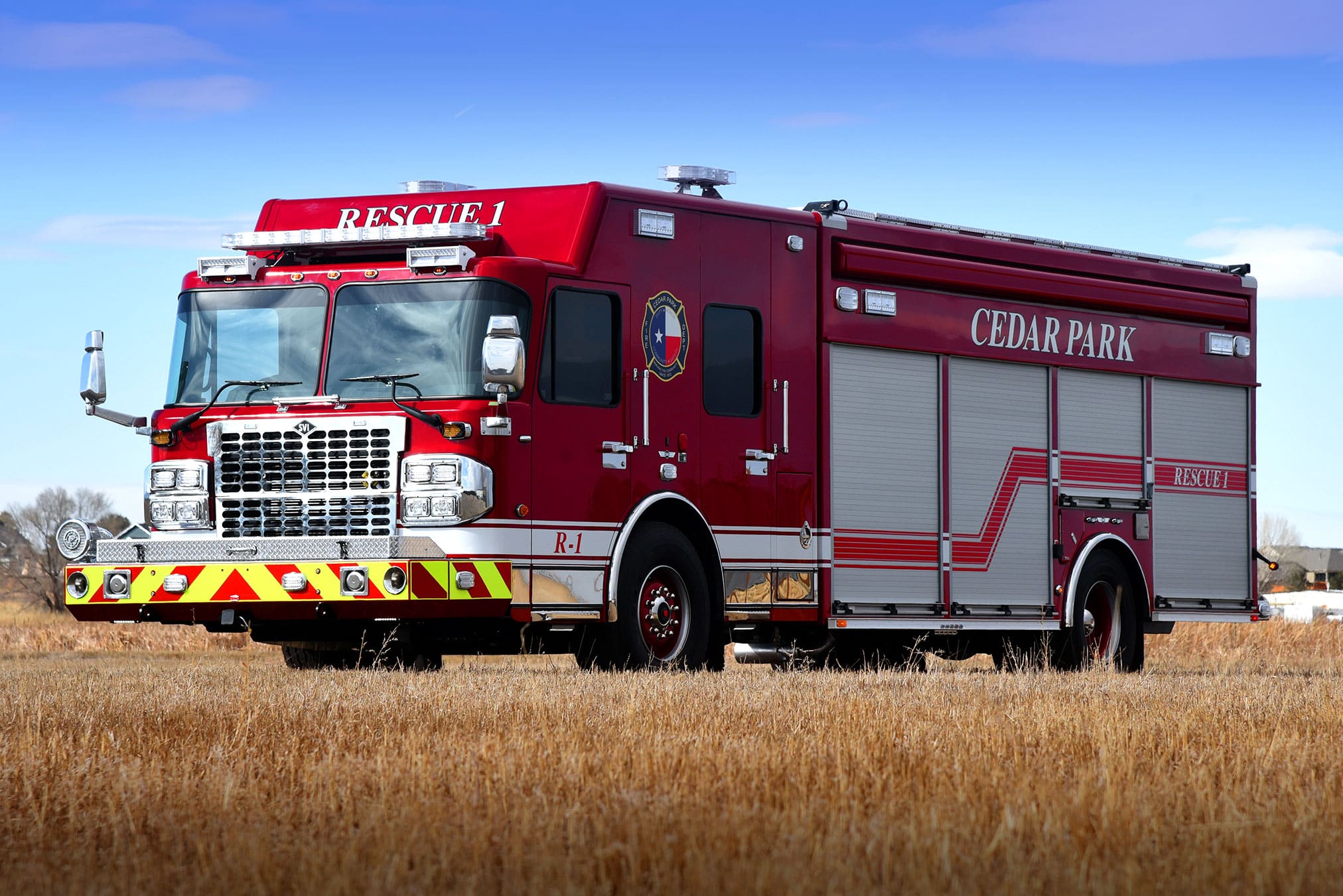

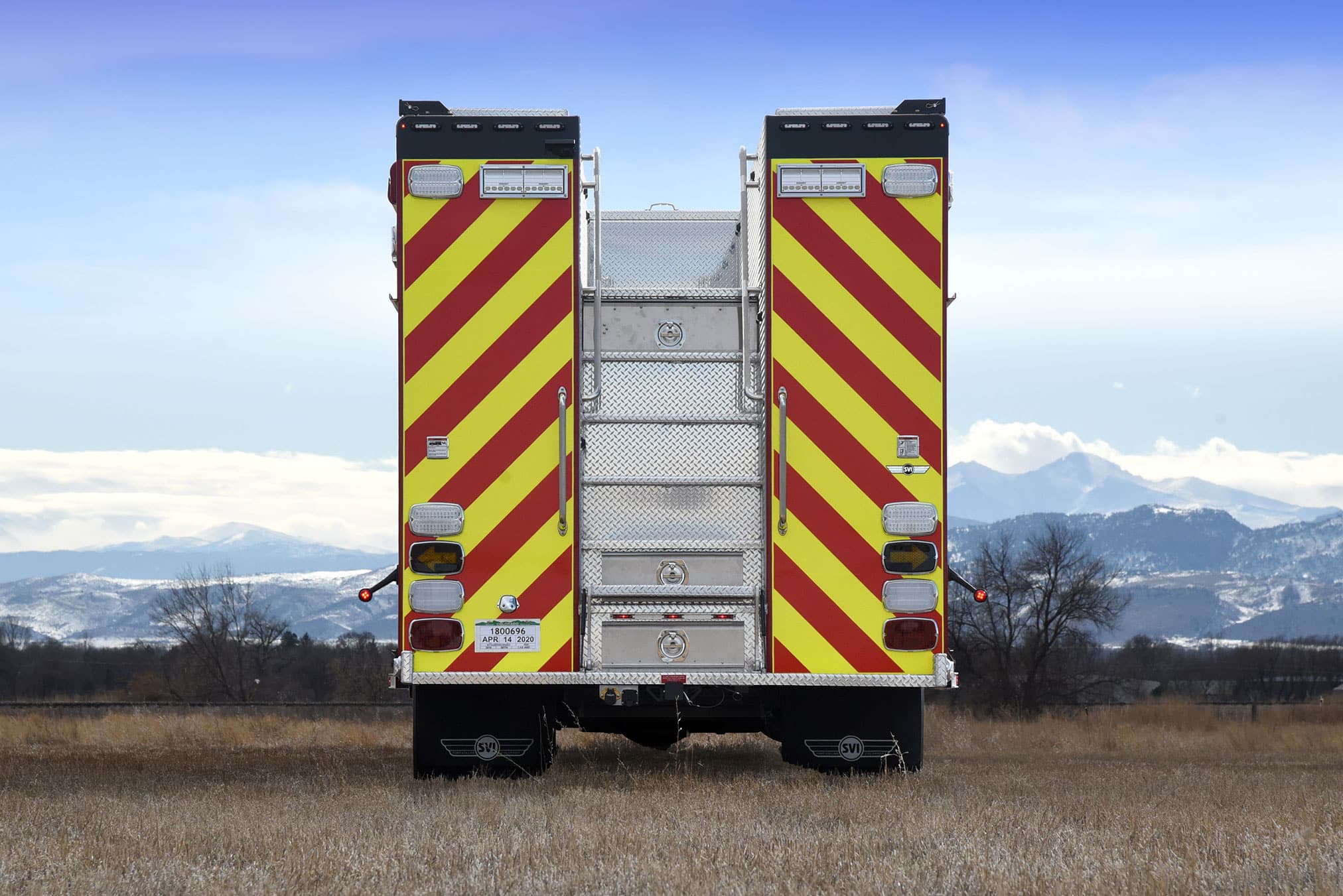

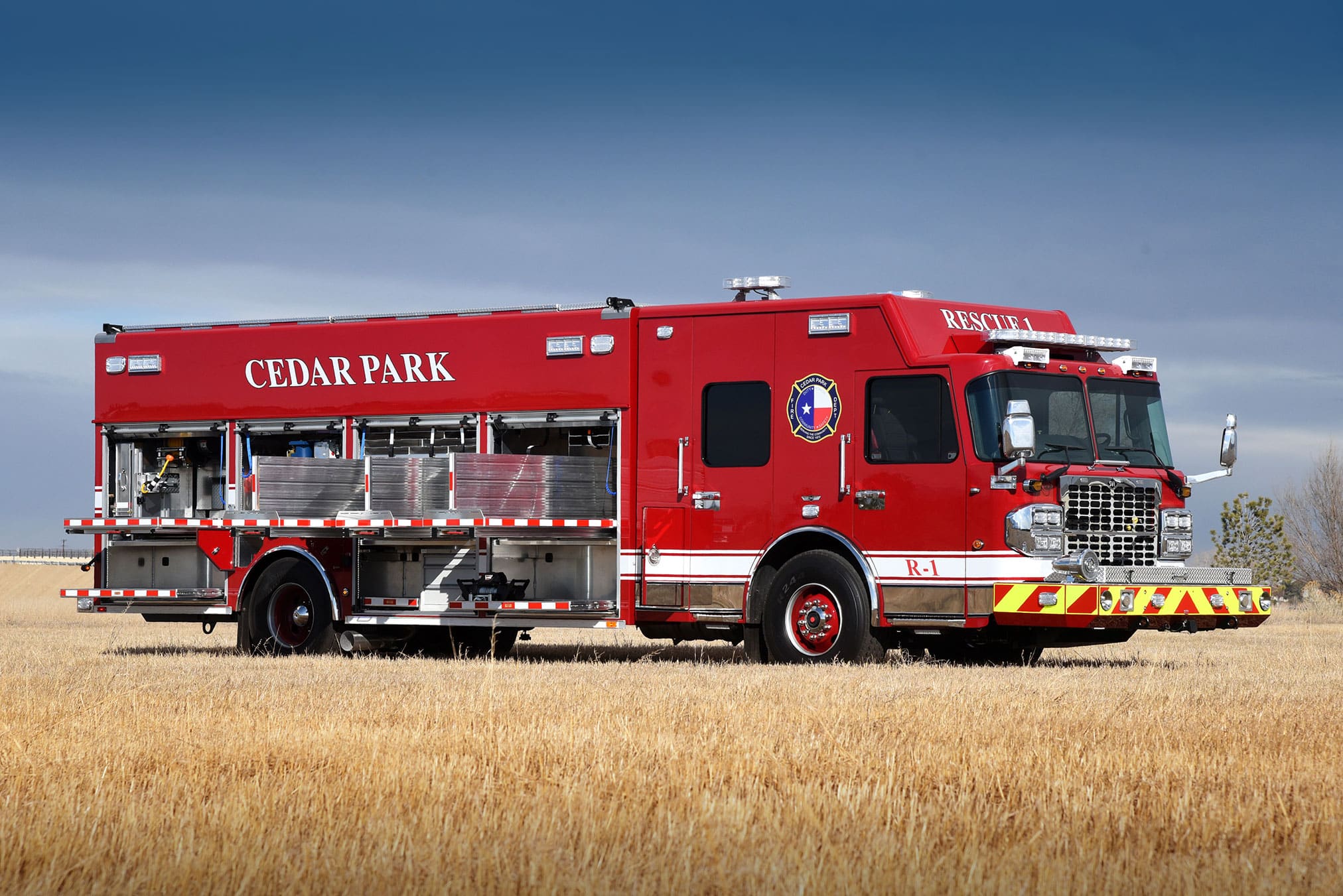

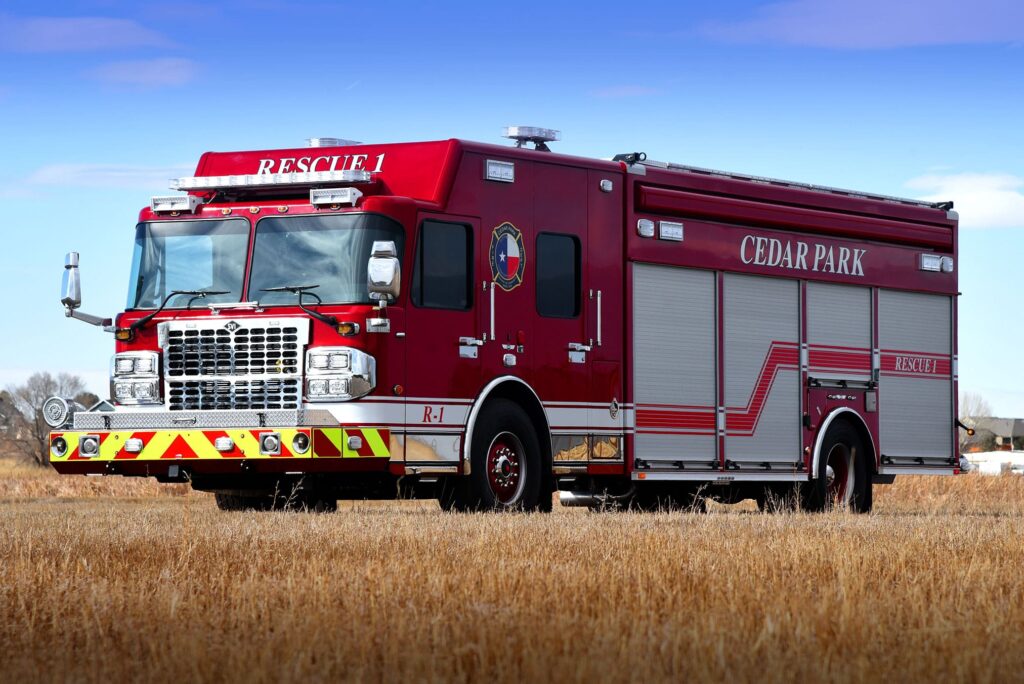

When spec’ing its new Heavy Rescue, the Cedar Park, TX Fire Department chose a 22′ aluminum SVI body mounted on a 20″ raised-roof Spartan Gladiator chassis, which houses a powerful 505 HP Cummins X15 engine. This apparatus is equipped with a 32,000-watt Onan Protec PTO generator to power the Bauer air compressor with Type 2 fill station. A Hannay high-pressure air hose reel, custom-mounted Paratech struts, Carefree Mirage lateral-arm patio awning and OnScene Solutions aluminum heavy-duty cargo slides add to this heavy rescue powerhouse.

For more information about this apparatus, choose one of the options below or contact us for more details.

Chassis

Cab: Spartan Gladiator 22’ with 20″ RR
Engine: Cummins X15 505 HP HP
Transmission: Allison EVS 4000
Wheelbase: 238″

Body

Material: Aluminum
Body Length: 22′
Overall Height: 10′ – 9″
Overall Length: 38′ – 3″

Features

  • 32,000-Watt Onan Protec PTO Generator System
  • Bauer Air Compressor with Type 2 Fill Station
  • Hannay High-Pressure Air Hose Reel
  • Custom-Mounted Paratech Struts and Kits

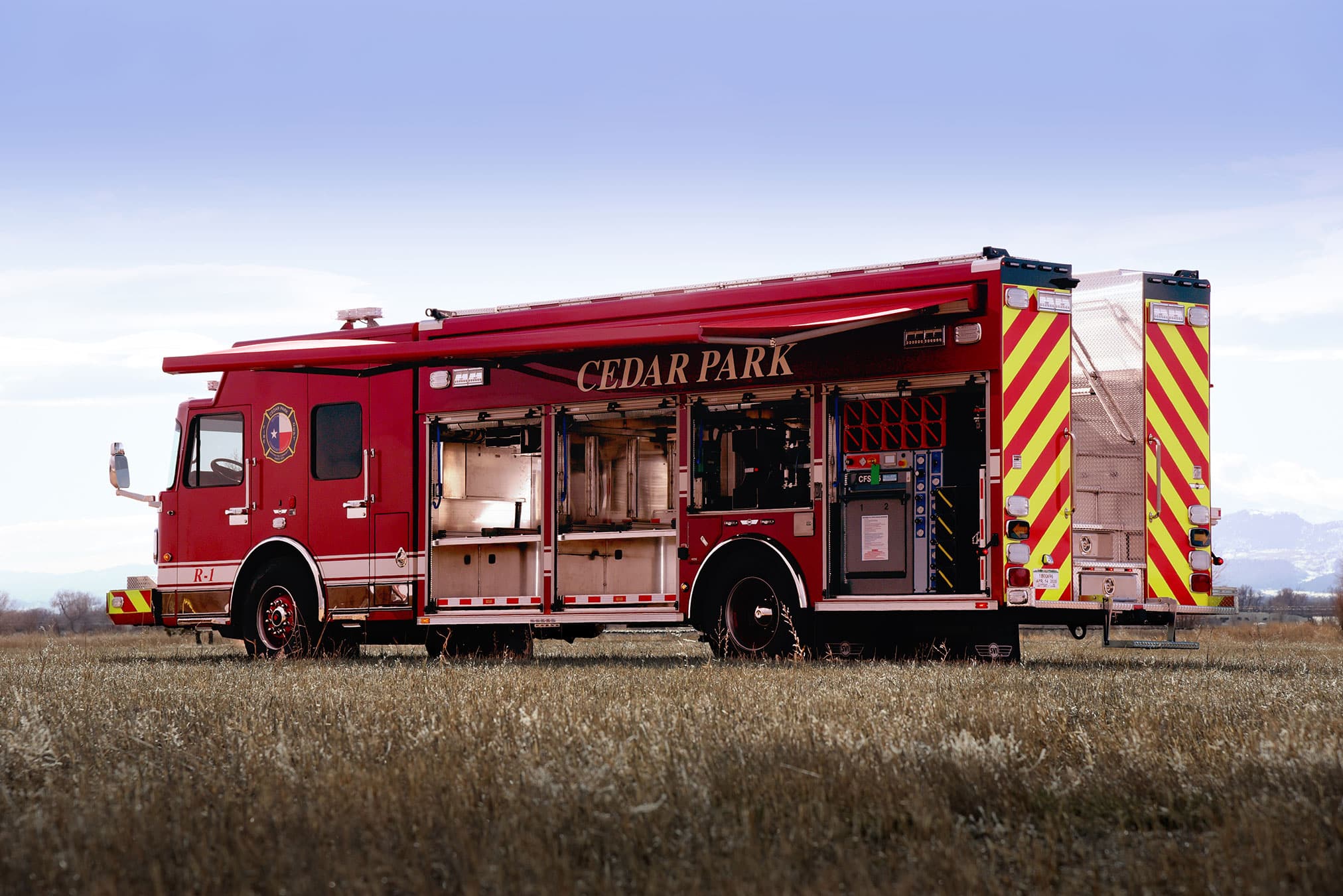

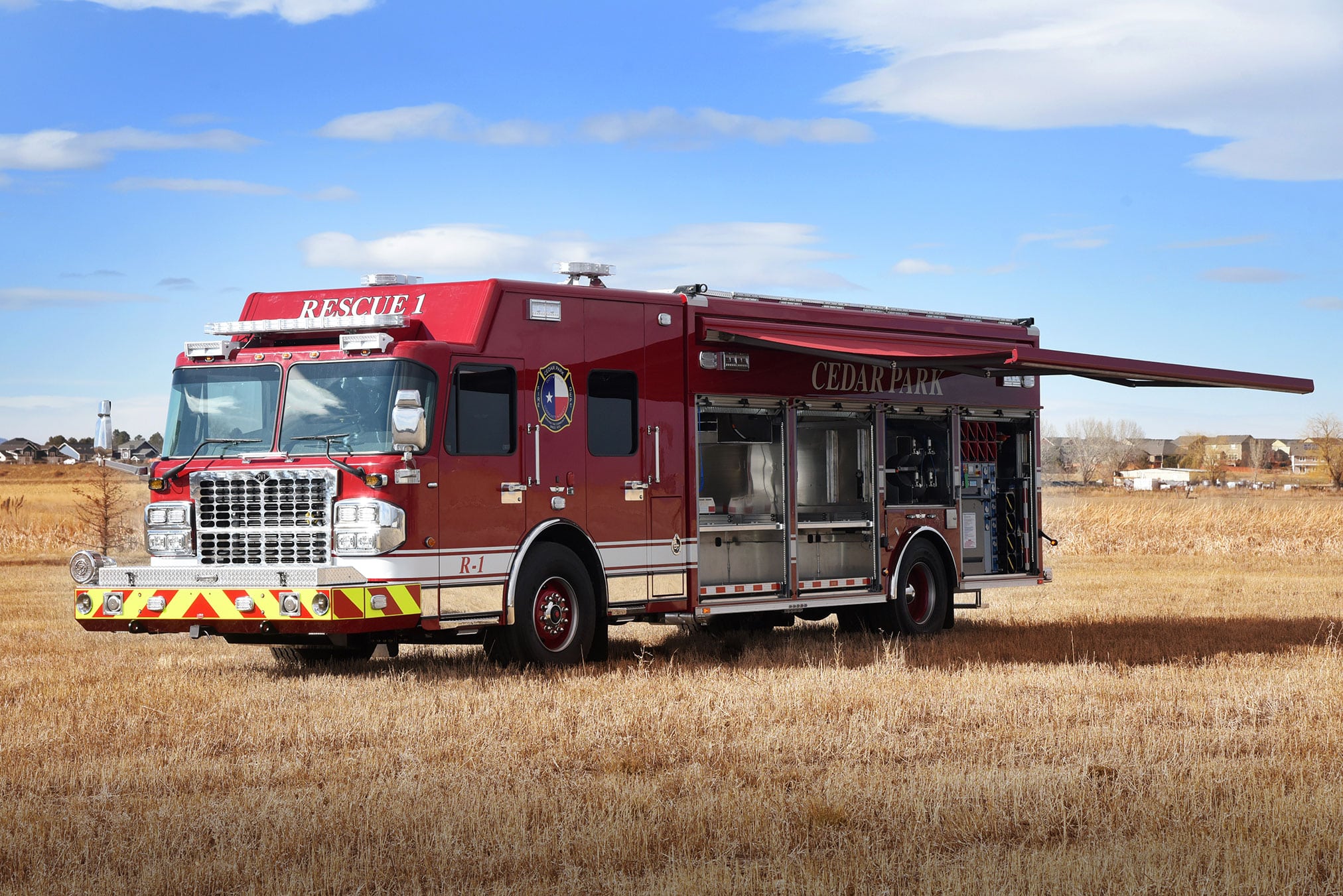

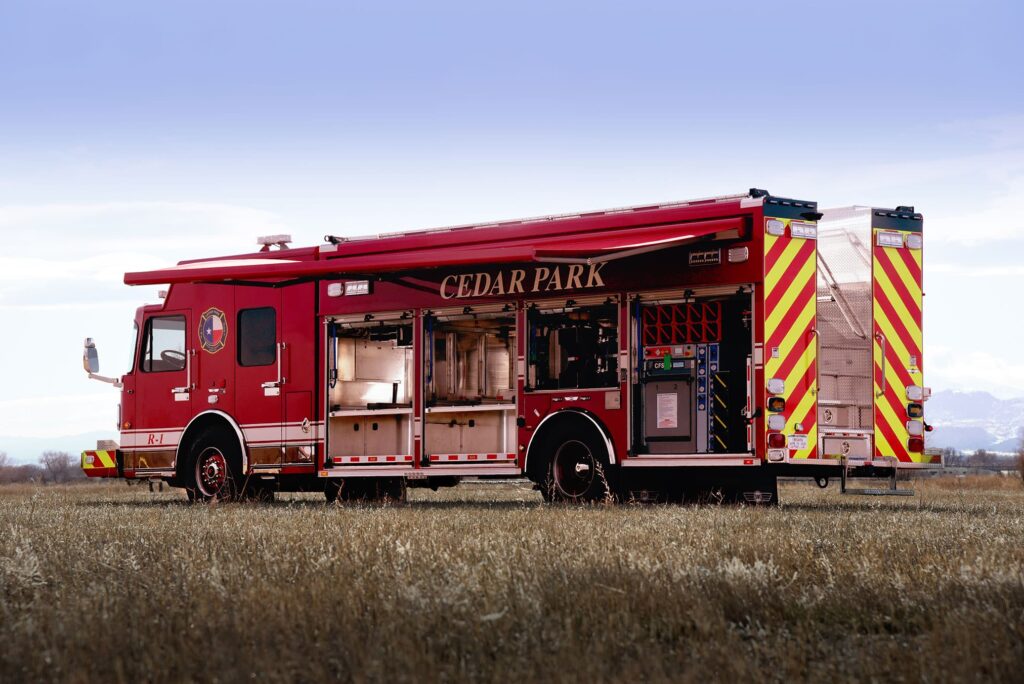

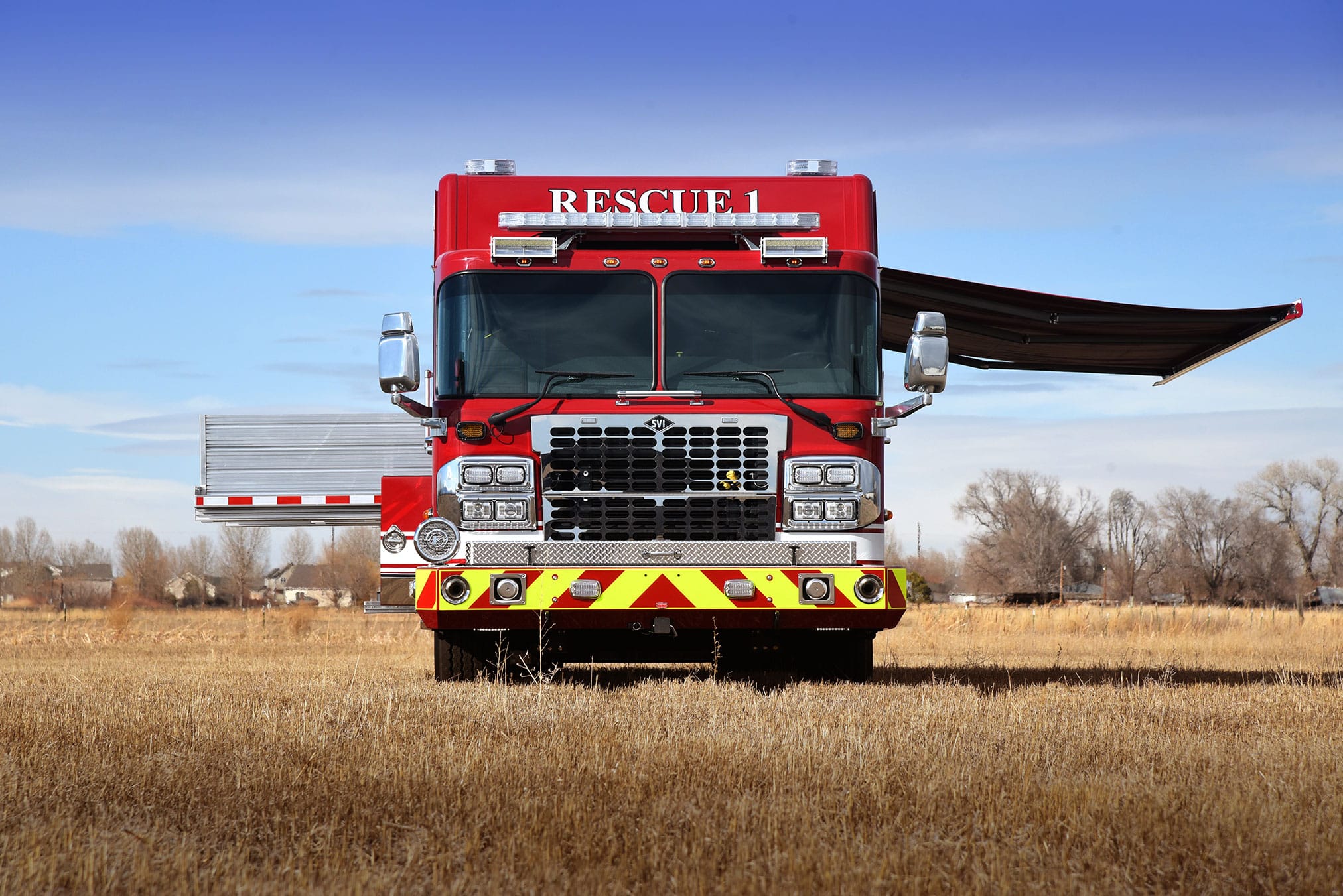

  • Carefree Mirage Lateral Arm Acrylic Patio Awning
  • Whelen Pioneer Scene Lights
  • OnScene LED Compartment Lighting and Ground Lights
  • OnScene Solutions Aluminum Heavy-Duty Cargo Slides
Detailed Specs
Download Spec Sheet

View All Photos
