Delta, BC Fire Department Heavy Rescue #1062

Delta, BC Fire Department Heavy Rescue #106

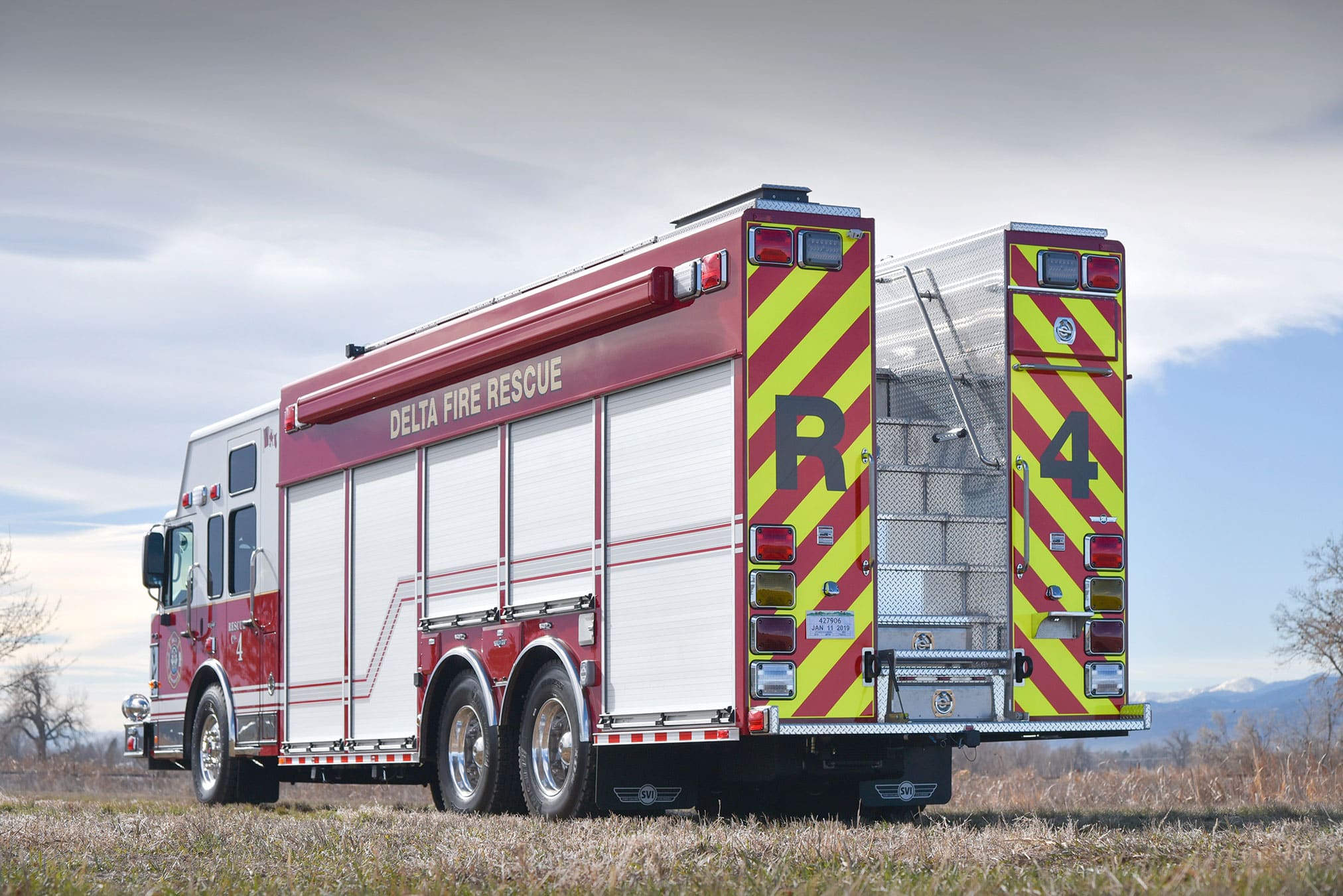

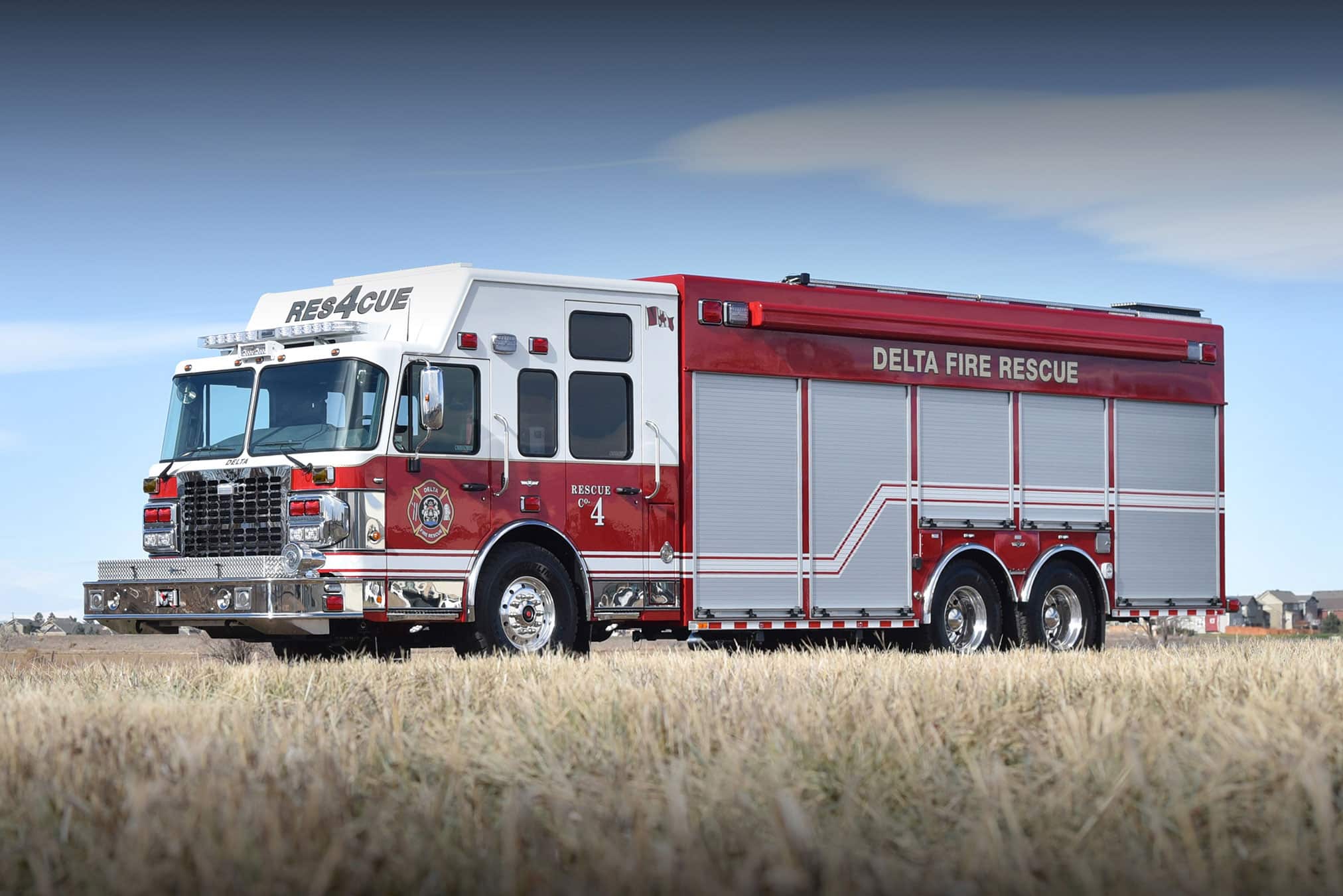

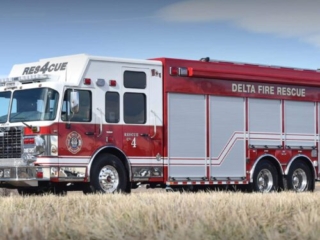

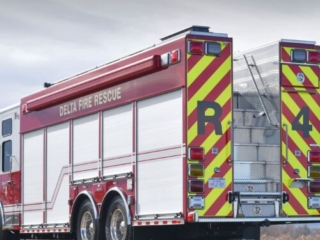

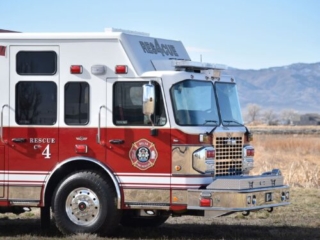

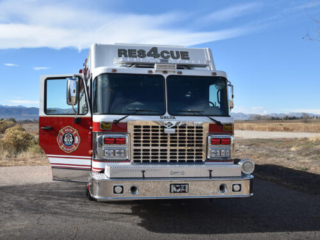

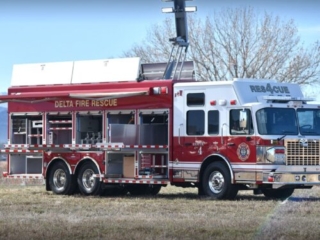

Delta, BC Fire Department’s SVI-built Tandem Heavy Rescue features a strong 24-foot aluminum body, mounted on a Spartan Gladiator LFD chassis with a 24-inch raised roof. The Gladiator houses a Cummins ISX15 565HP engine.

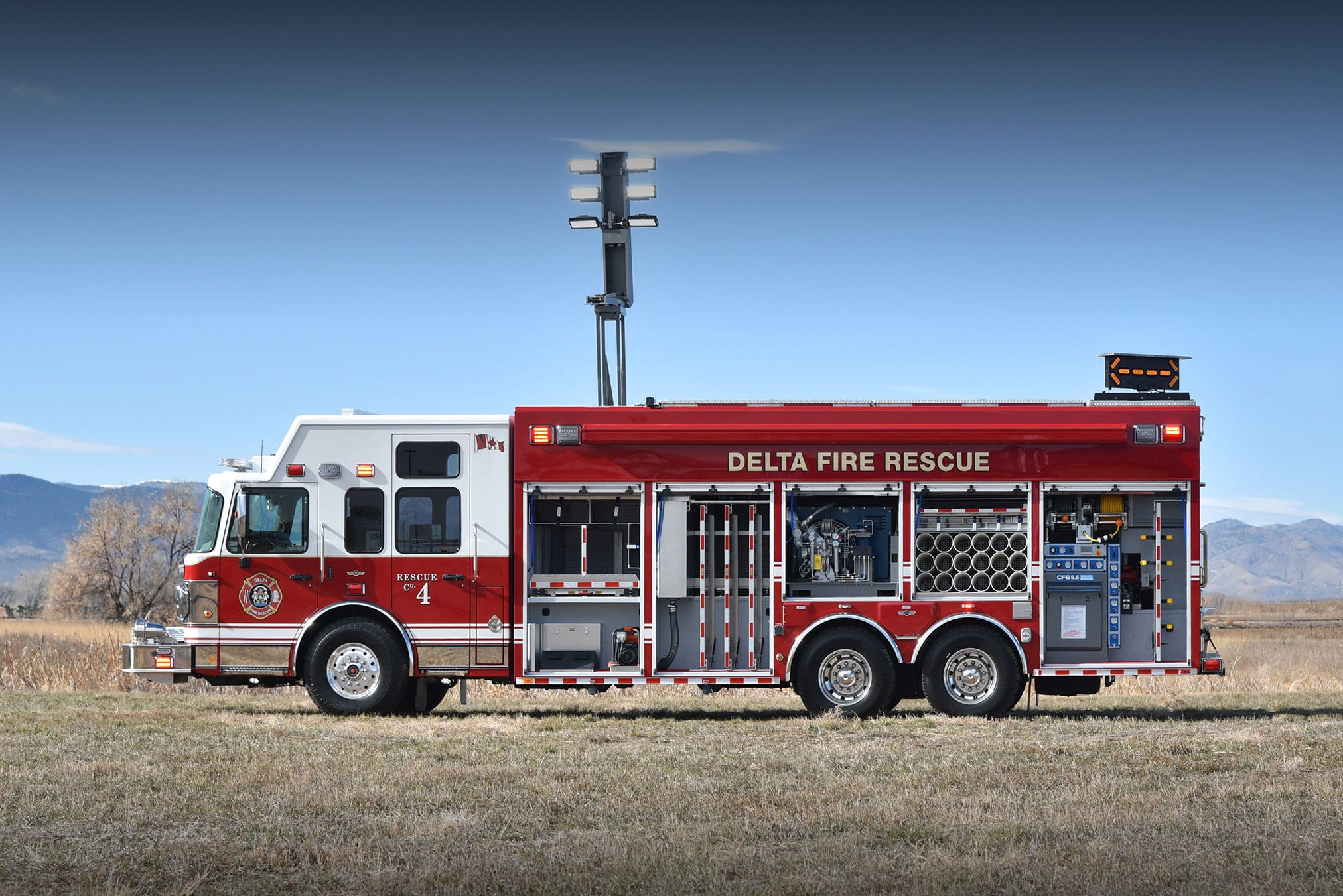

The new walk-around Heavy Rescue features Command Light’s TFB-V5 Traffic Flow Board and CL602A-FX light tower with 168,000 lumens. The department chose Holmatro’s CORE Rescue Tool System with an HPU capable of operating two rescue tools simultaneously and a rescue-style front bumper with 60′ hydraulic reels. The SCBA filling system includes a Bauer two-position fill station and an abundance of bottle storage.

For more information about this apparatus, choose one of the options below or contact us for more details.

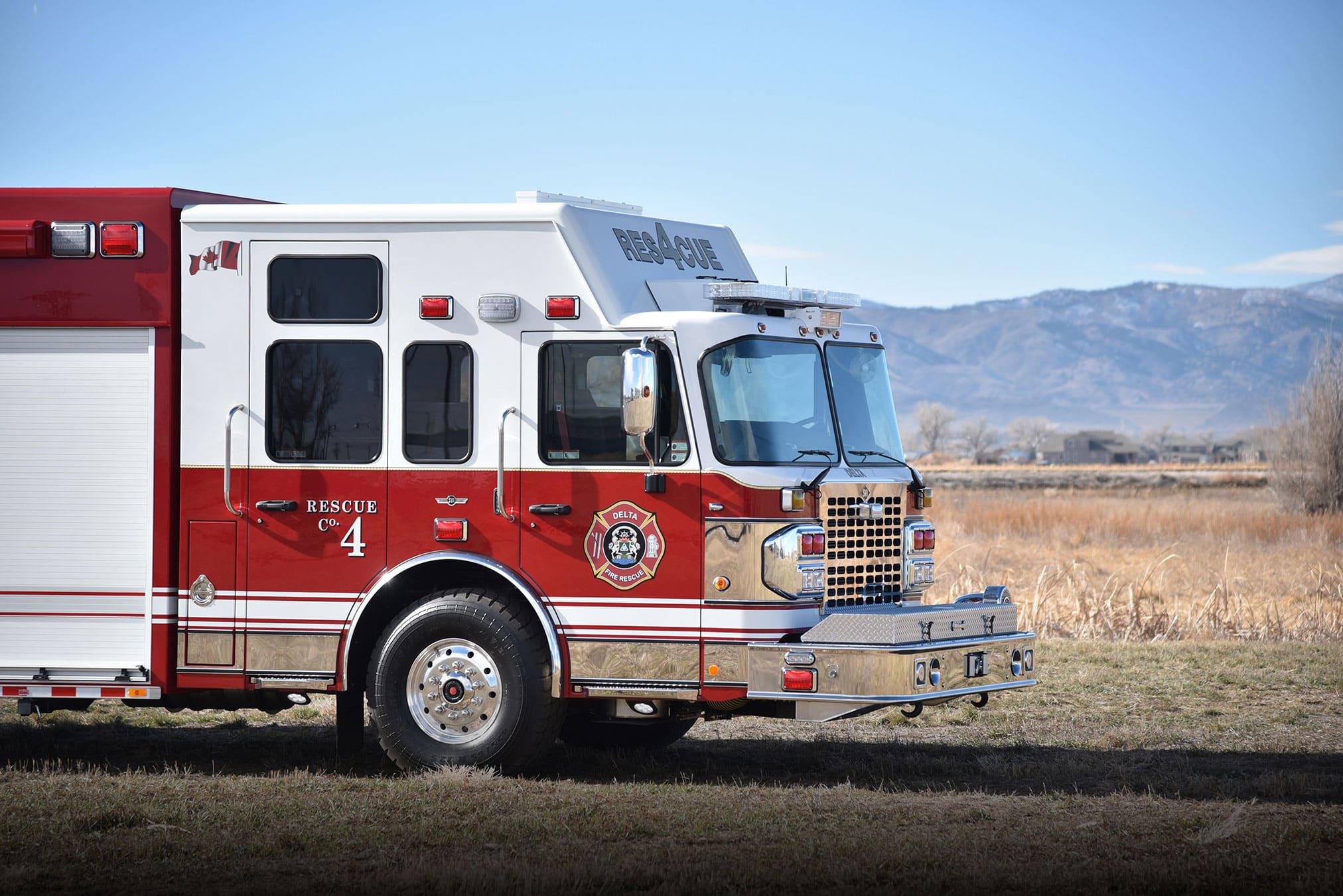

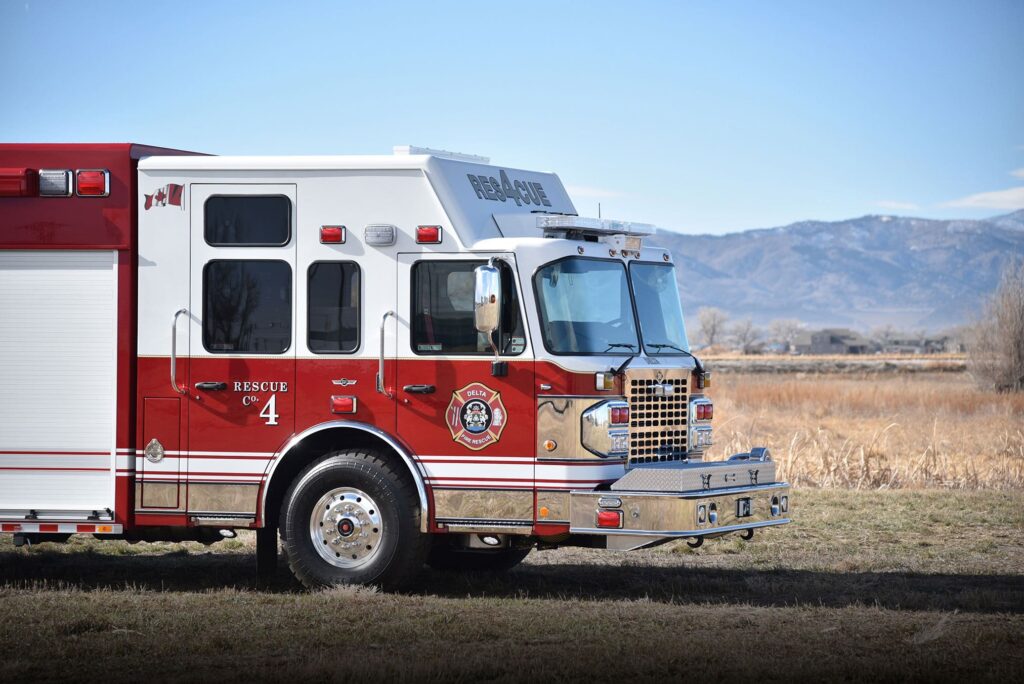

Cab: Spartan Gladiator LFD w/24″ RR
Engine: Cummins ISX15, 565HP
Transmission: Allison EVS 4000
Wheelbase: 242″


Material: Aluminum
Body Length: 24′
Overall Height: 11′-5″
Overall Length: 40′- 7″


  • Lima MAC 360 40,000 Watt PTO Generator
  • Bauer 6,000 PSI Air Compressor
  • Bauer 2 Position SCBA Fill Station
  • OnScene Solutions LED Compartment Lighting
  • Whelen LED Warning & Scene Light Package

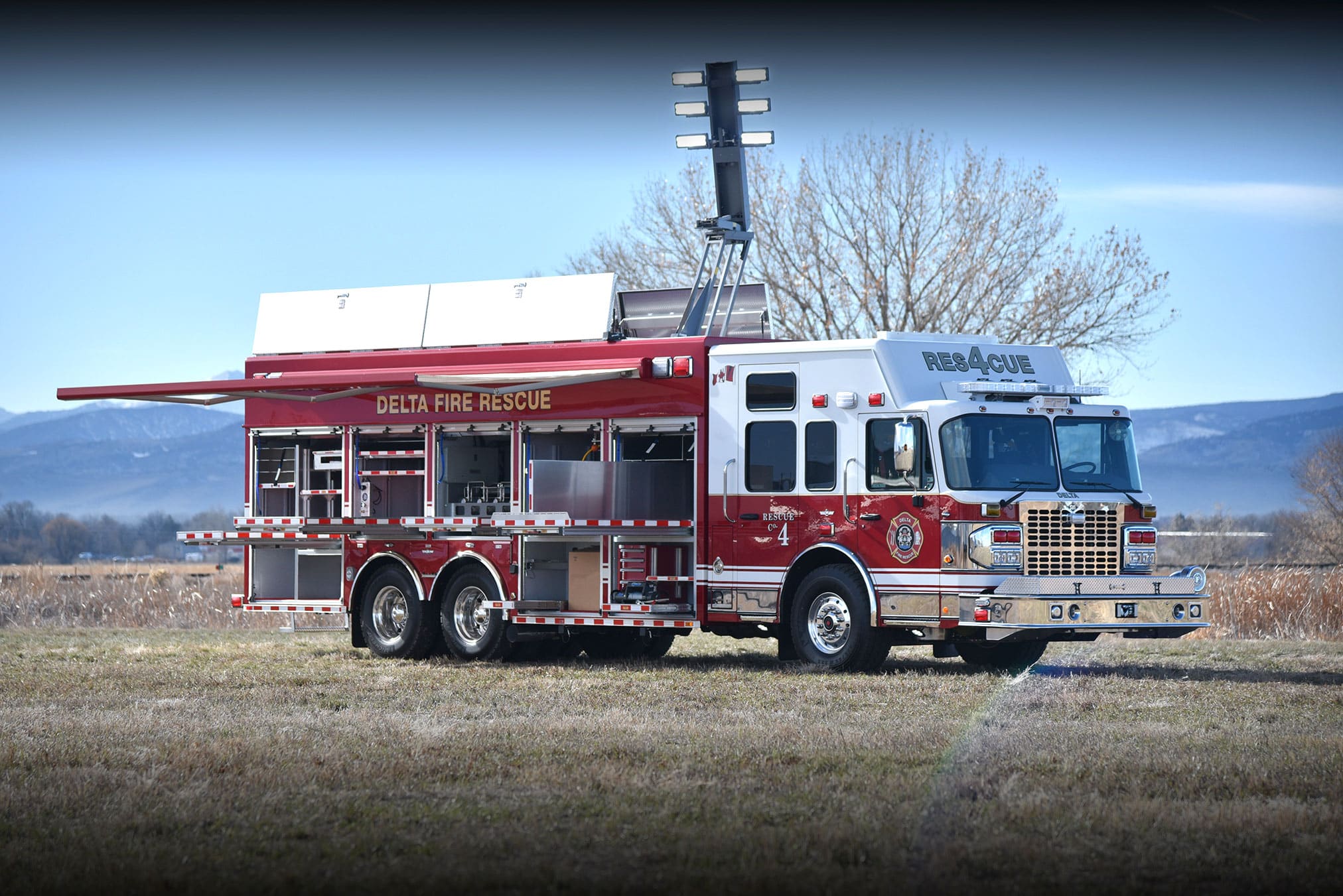

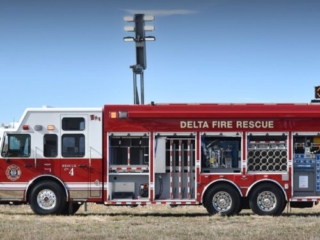

  • Command Light CL602A-FX Light Tower
  • Command Light TFB V5 Traffi c Flow Board
  • OnScene Solutions Aluminum Cargo Slides
  • Holmatro Core 3-stage Hydraulic Power Unit

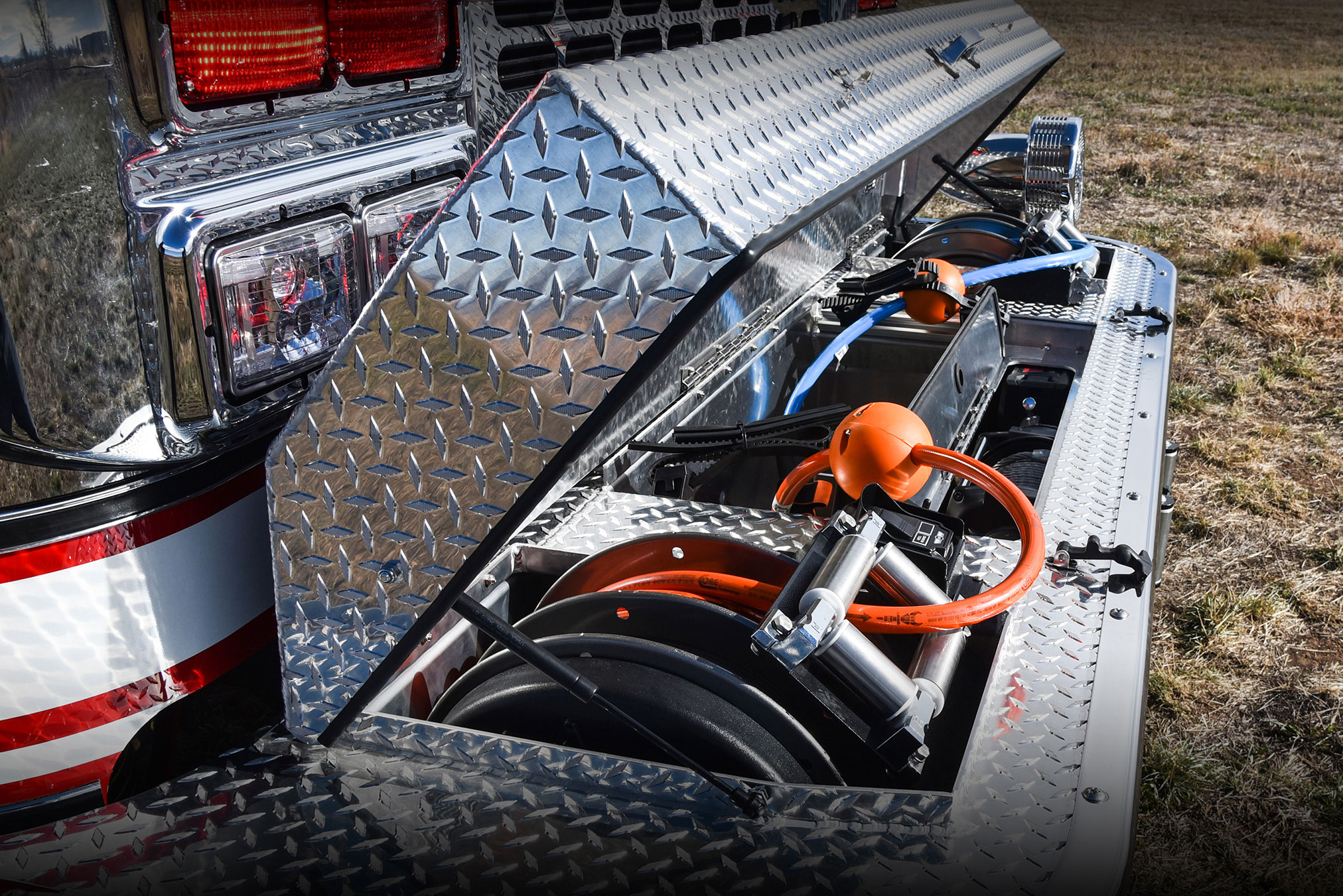

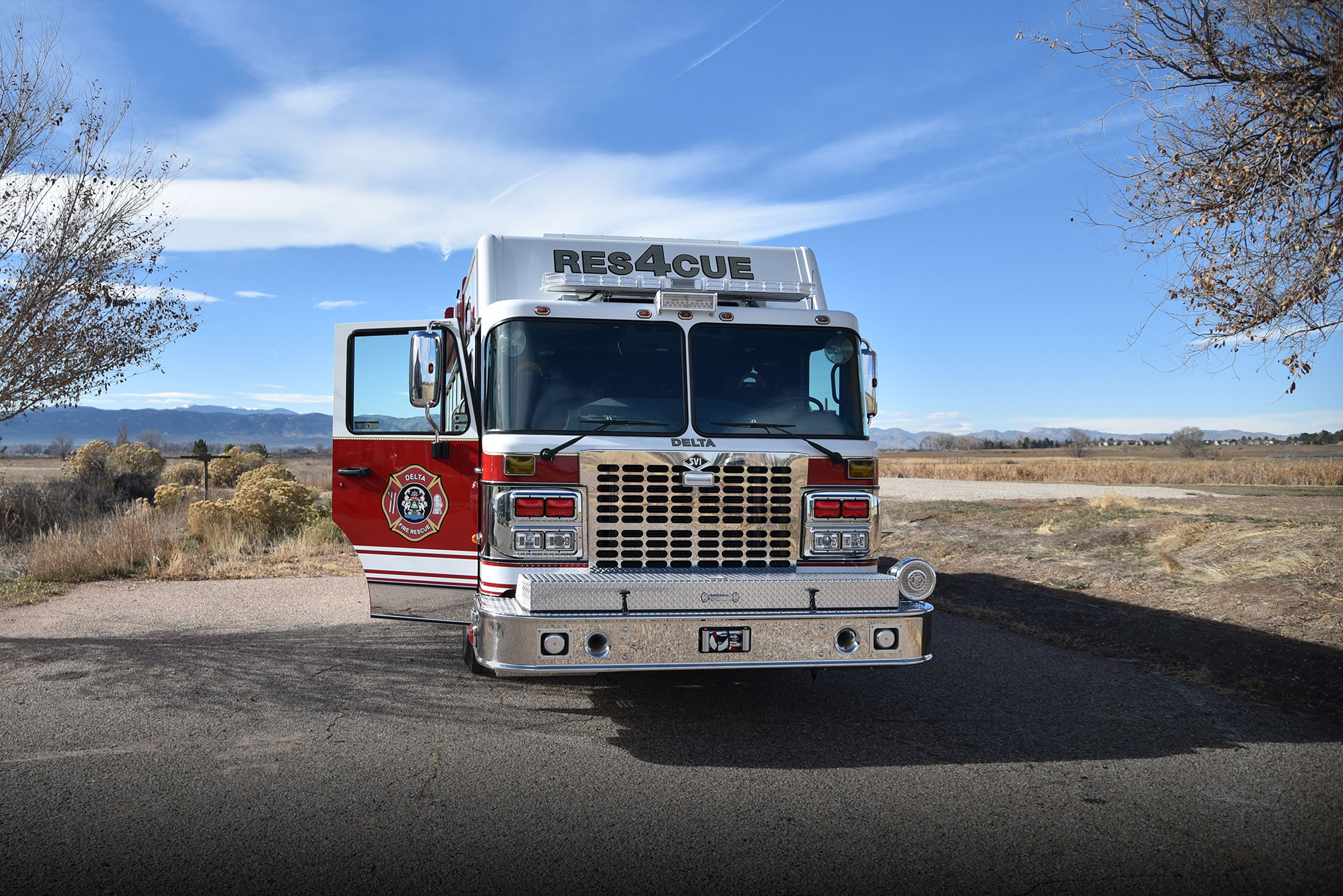

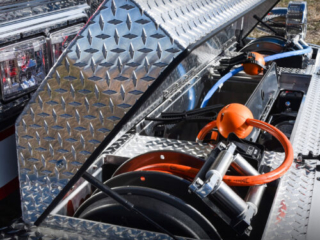

  • Rescue-Style Bumper with Holmatro Core Hose
  • V-MUX Vista IV Multiplex System Interface Display
