Fort Worth, TX Fire Department Heavy Rescue #1057

Fort Worth, TX Fire Department Tandem Rear Axle Heavy Rescue

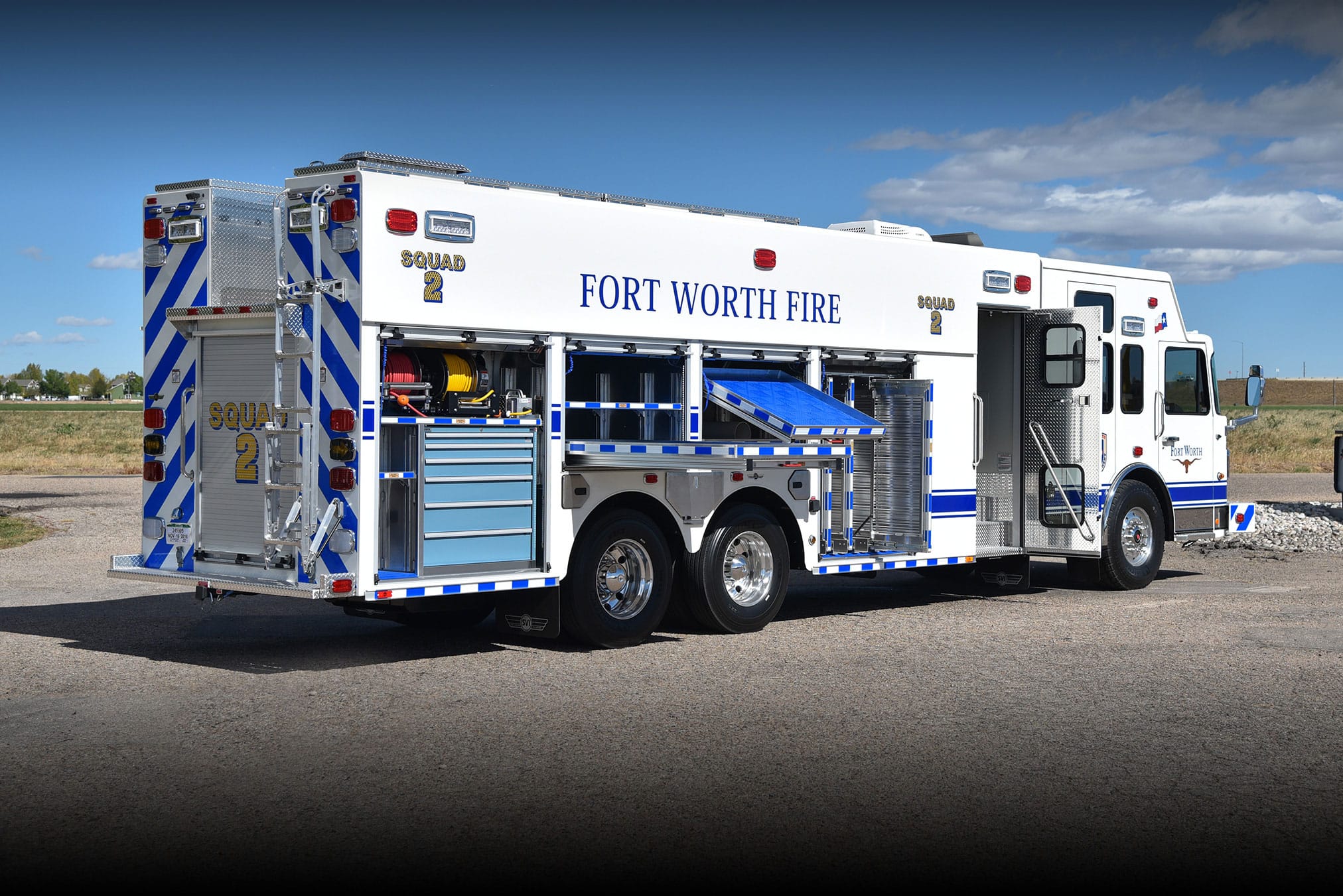

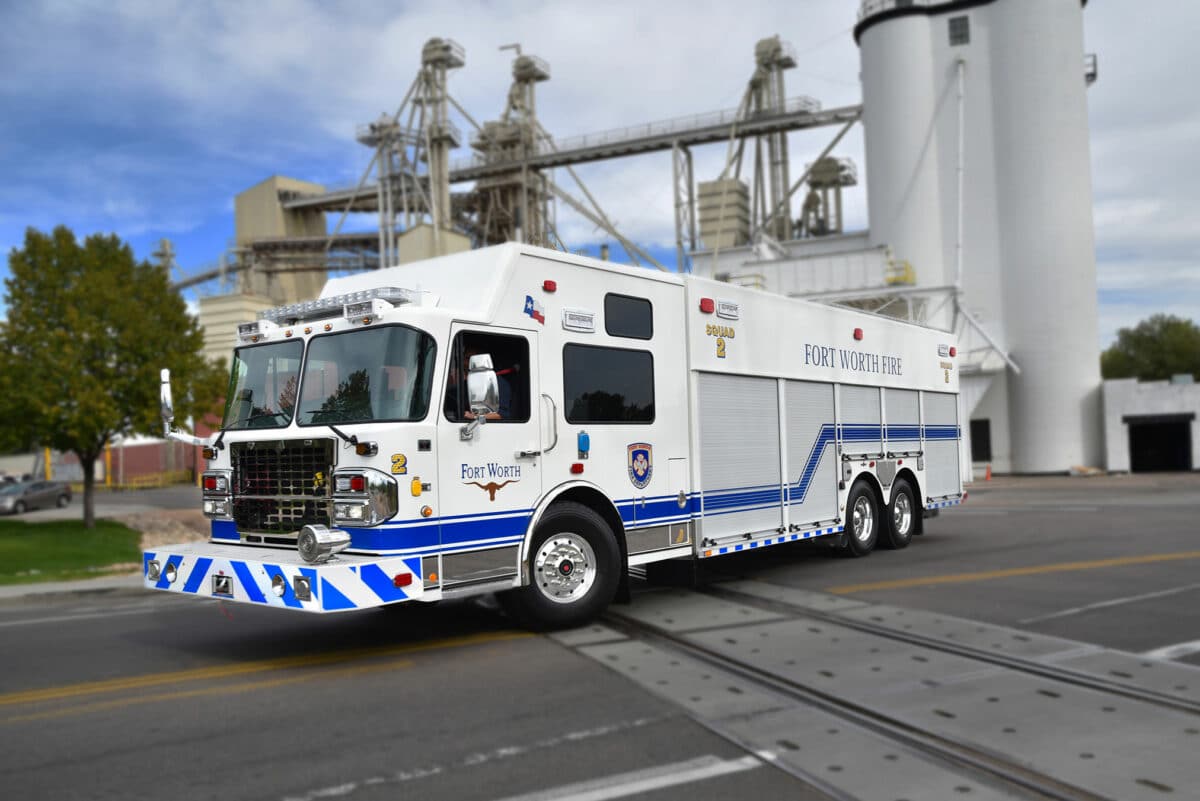

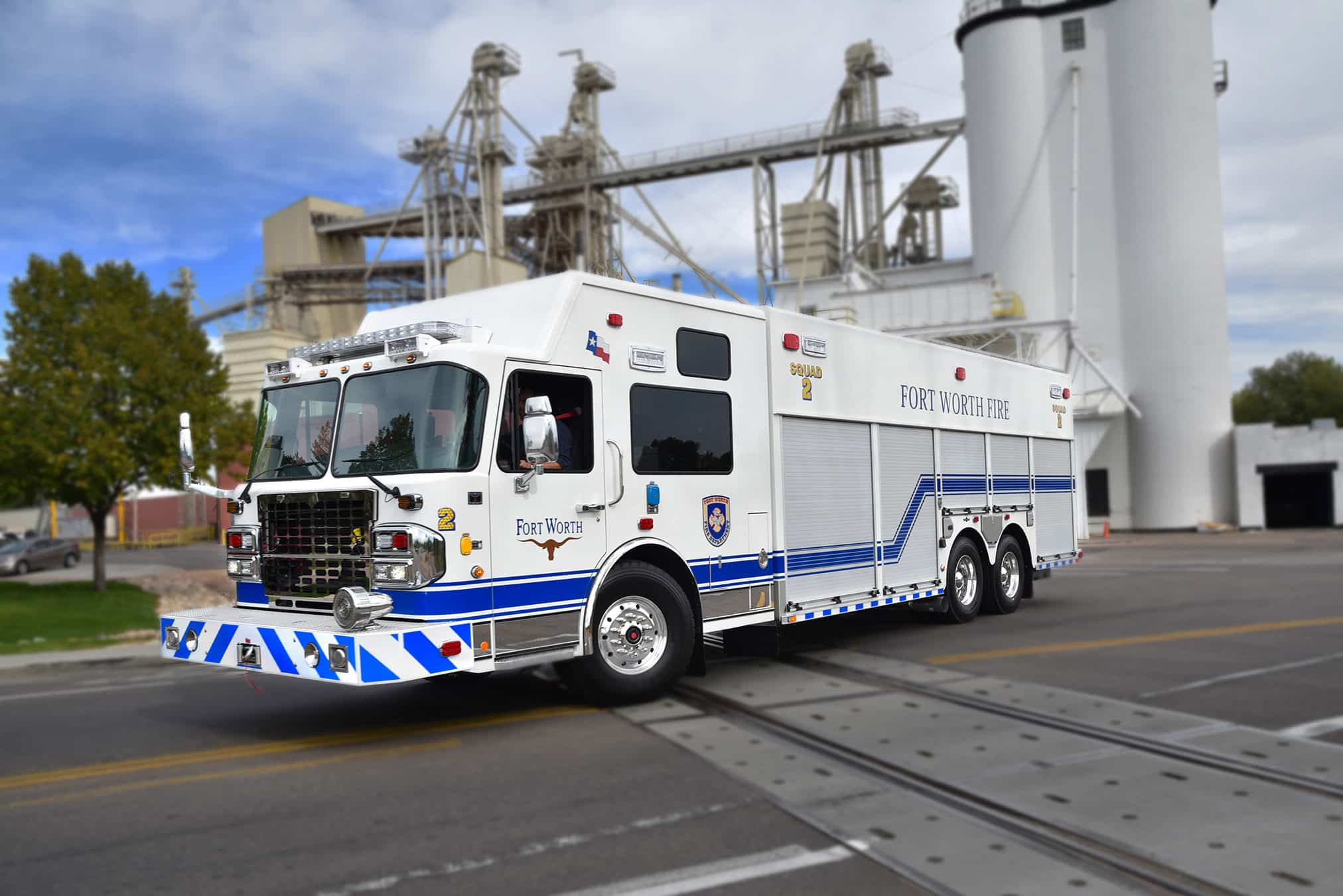

Fort Worth, Texas’ SVI-built Heavy Rescue features a 24′ aluminum body with a walk-in area, all mounted on a Spartan Gladiator LFD chassis with a 24-inch raised roof and powered by a Cummins X15 505HP engine. This truck features a powerful 180,000-lumen LED Command Light CL602A-W4 light tower, a Holmatro Core rescue tool system, OnScene Solutions heavy-duty aluminum cargo slides and much more!

For more information about this apparatus, choose one of the options below or contact us for more details.


Cab: Spartan Gladiator LFD w/24″ RR
Engine: Cummins X15, 505HP
Transmission: Allison EVS 3000
Wheelbase: 256″


Material: Aluminum
Body Length: 24′
Overall Height: 11′-6″
Overall Length: 40′- 9″

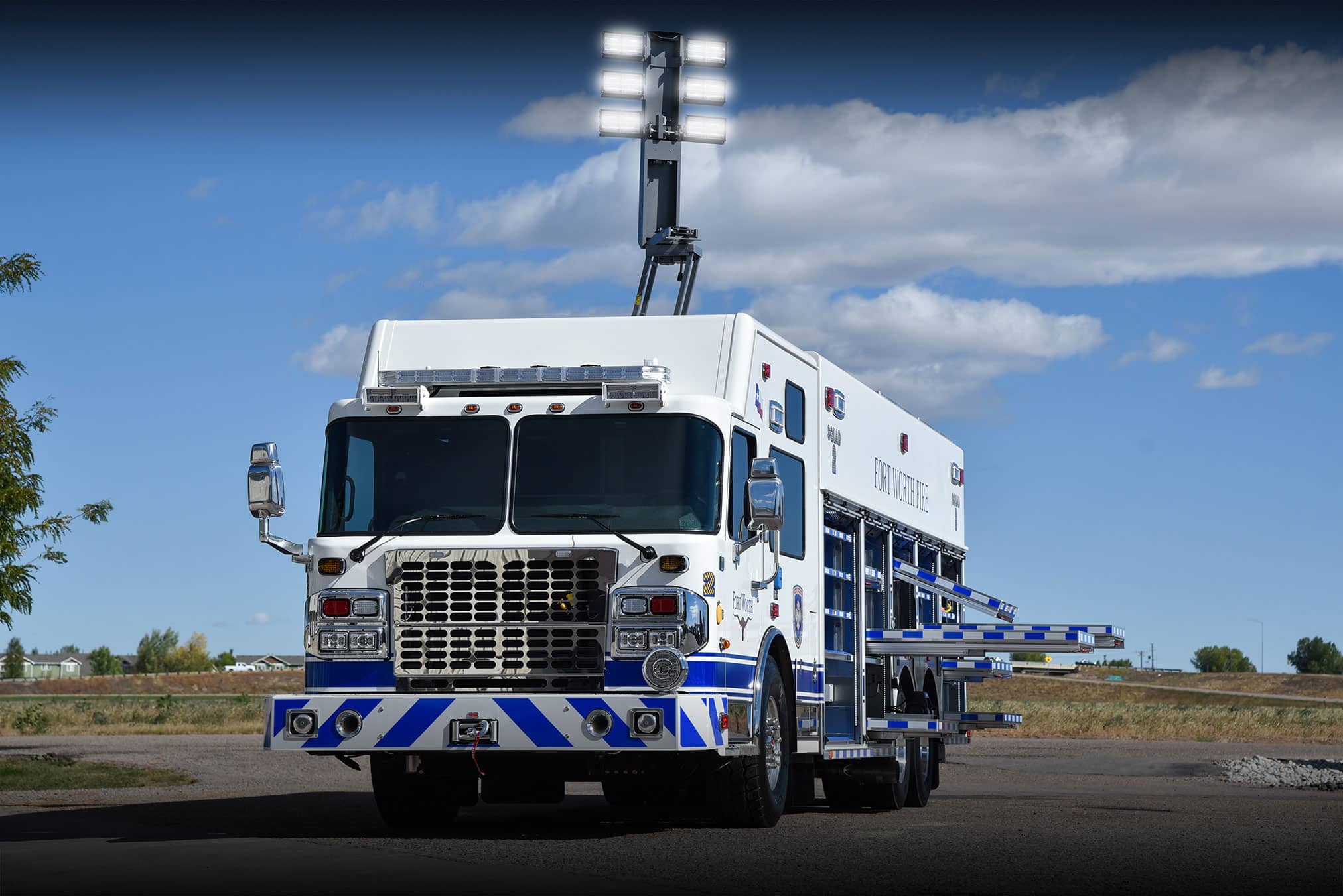

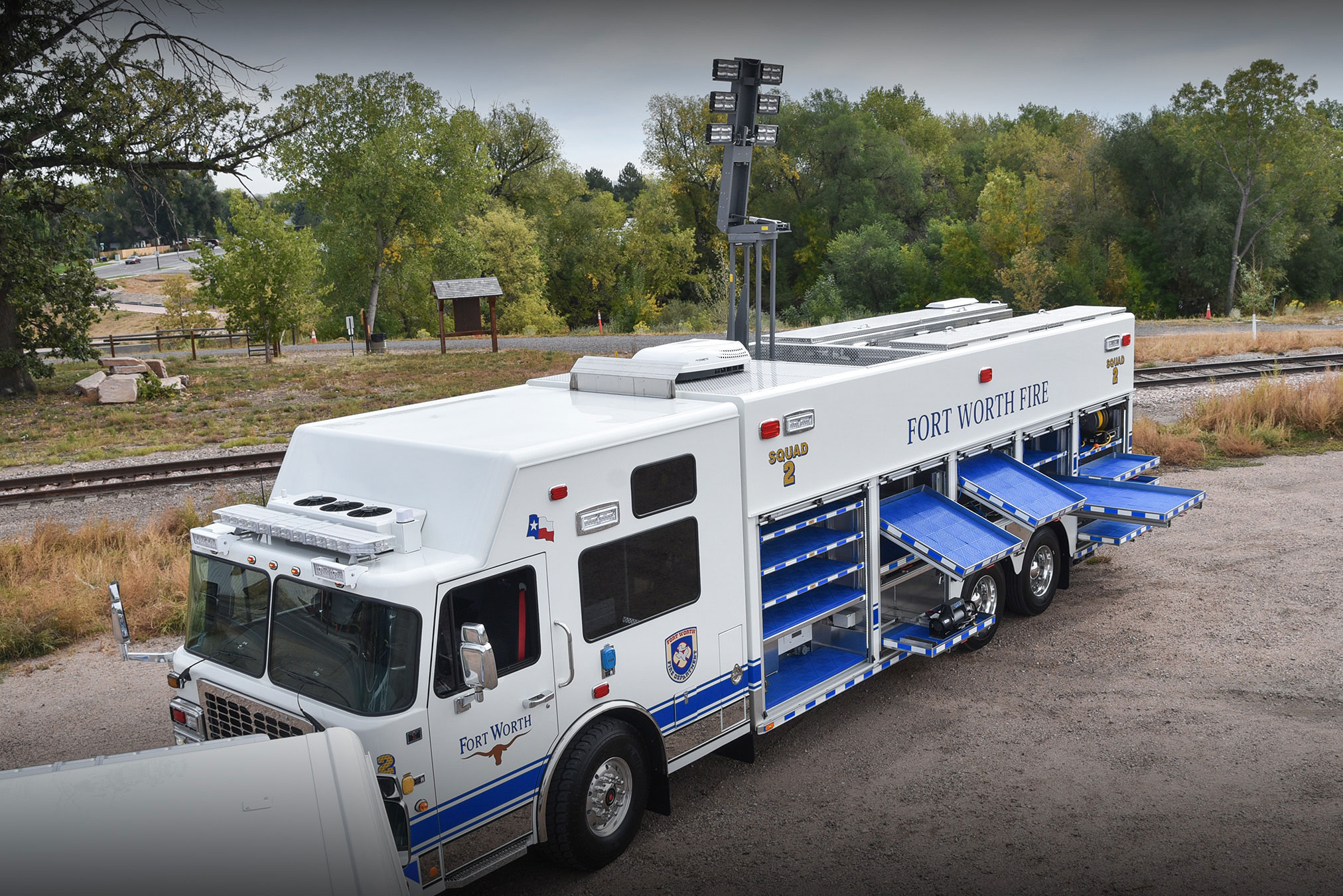

  • Command Light CL602A-W4 Light Tower
  • Onan Protec 25,000 Watt PTO Generator
  • OnScene Solutions LED Compartment Lighting
  • Whelen LED Warning & Scene Light Package

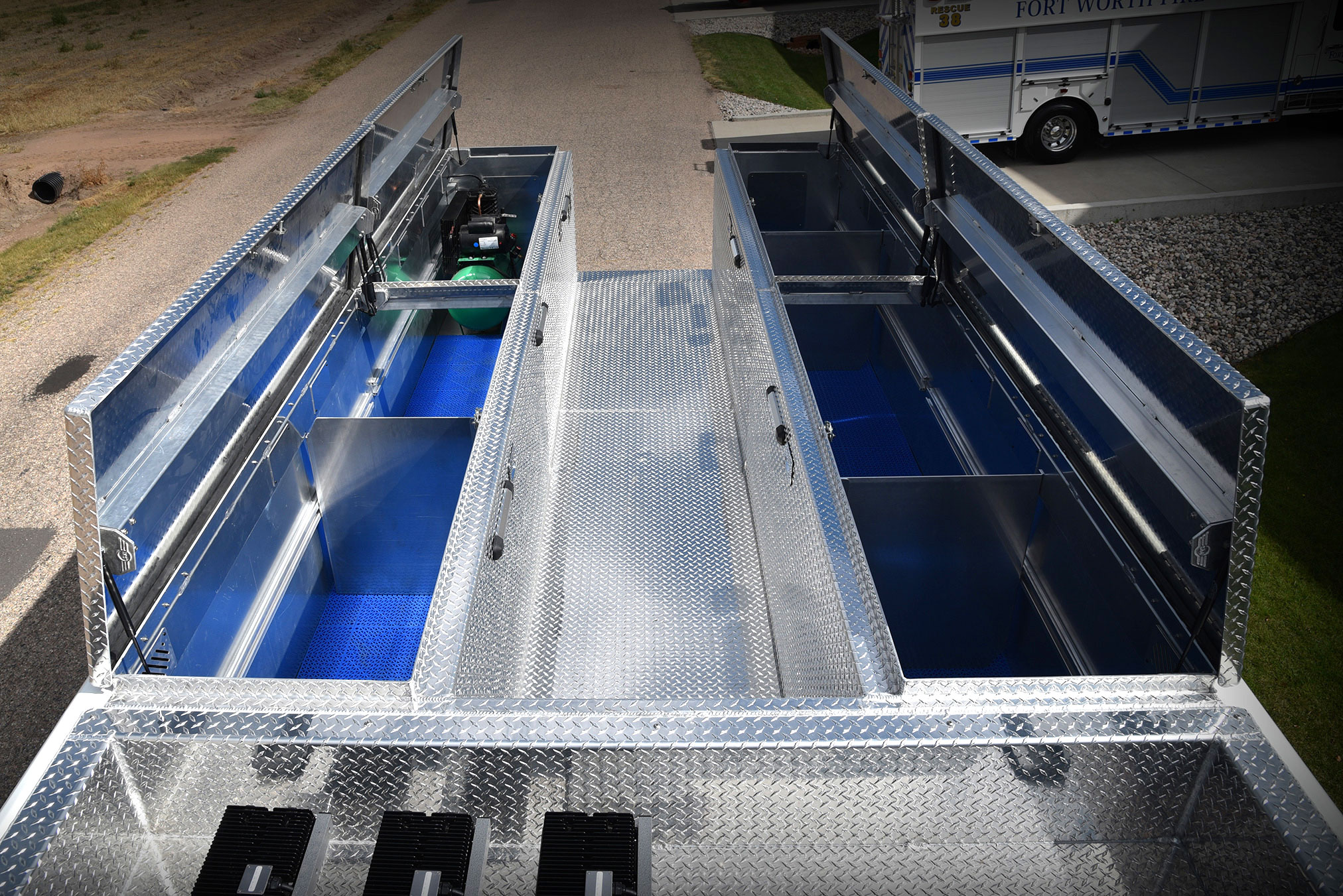

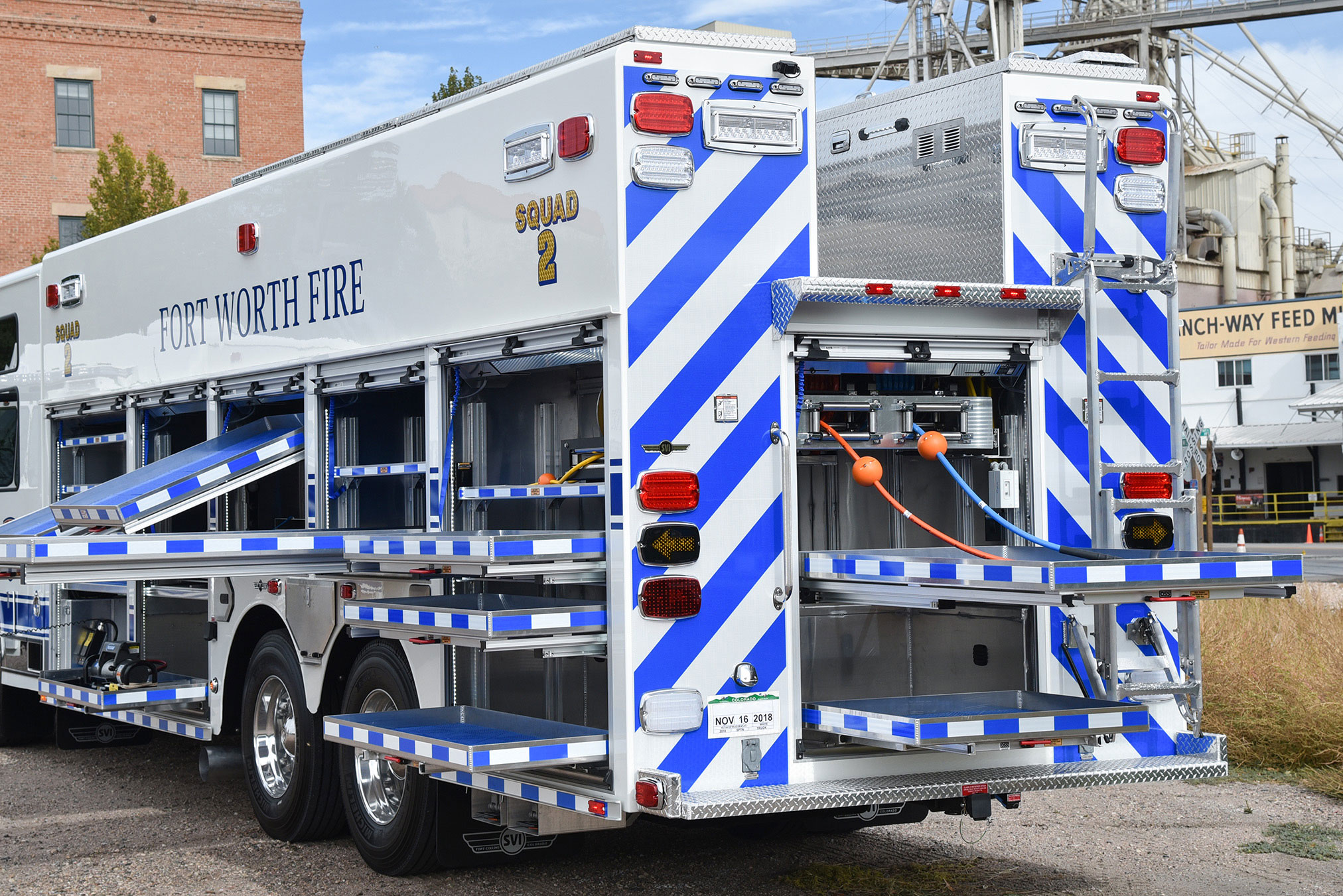

  • OnScene Aluminum Heavy-Duty Cargo Slides
  • (2) Hannay 200’ Electric Cable Reels
  • Hannay 200’ Low Pressure Air Hose Reel
  • Holmatro Core 3-Stage Hydraulic Power Unit (HPU)
  • 100’ Holmatro Core Hydraulic Hose Reels
  • V-MUX Vista IV Multiplex System Interface Display
  • Warn 16,500-lb. Rated 12 Volt Bumper Winch
