Charlotte, NC Heavy Rescues #1065-1066

Charlotte, NC Heavy Rescue #1065-1066

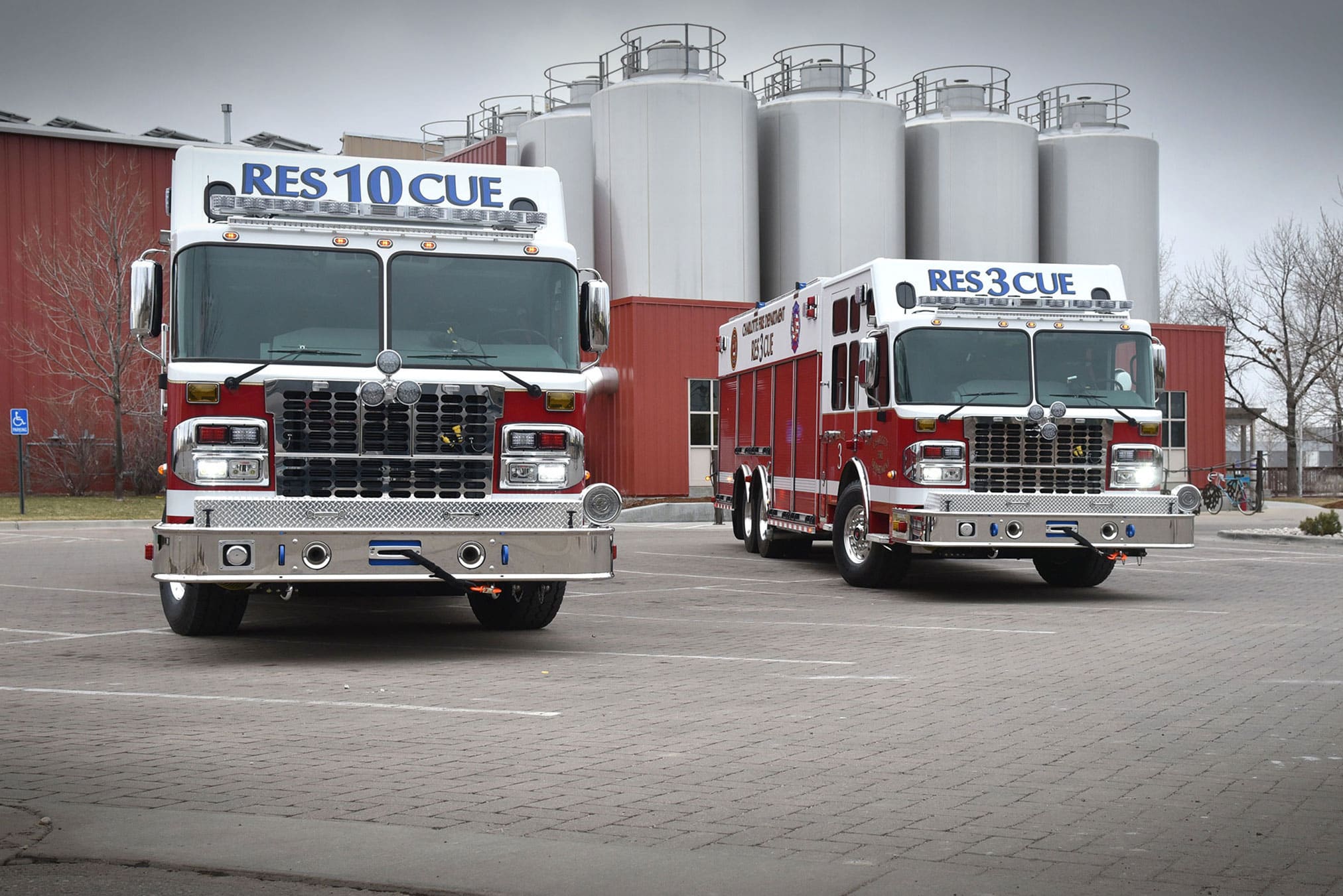

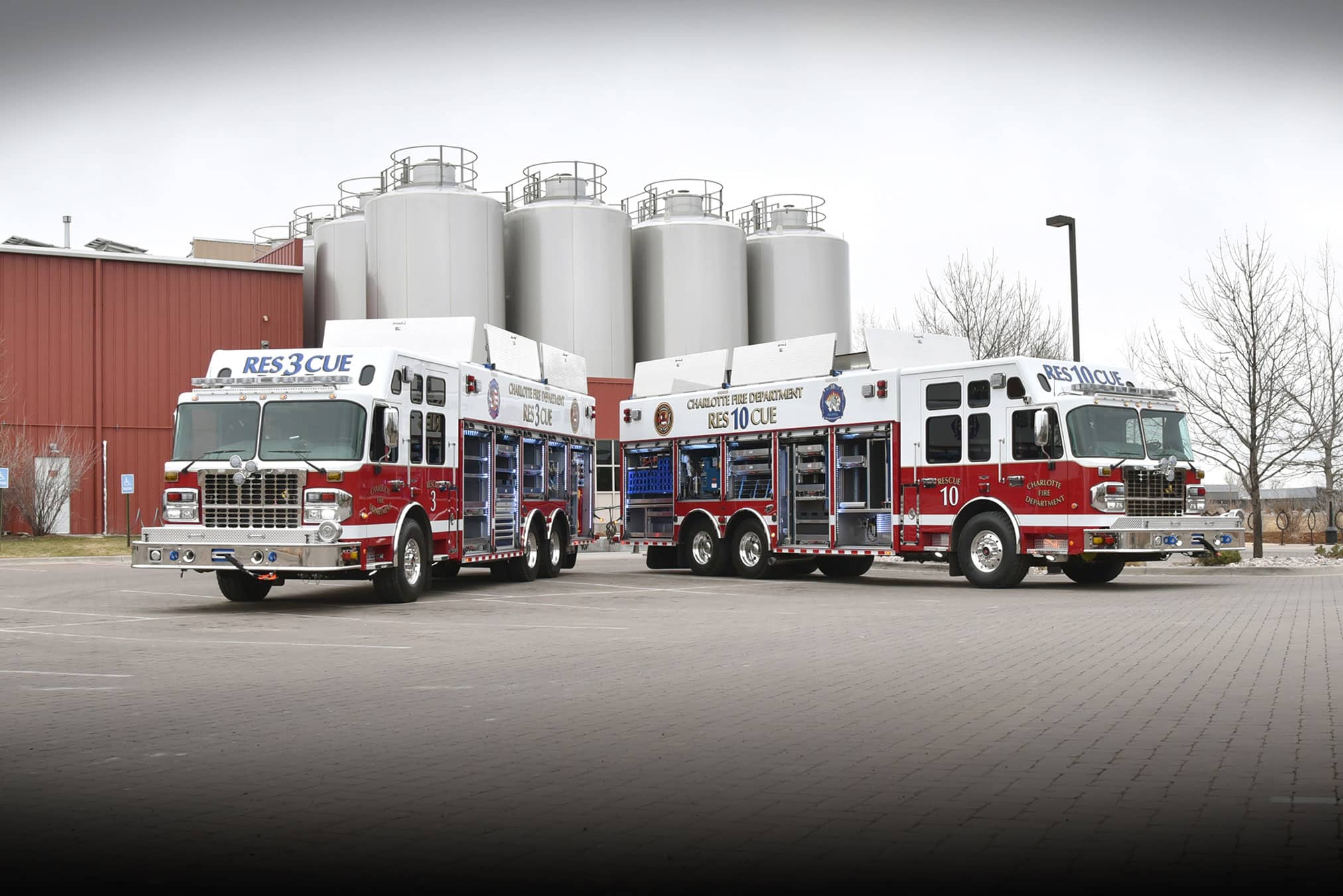

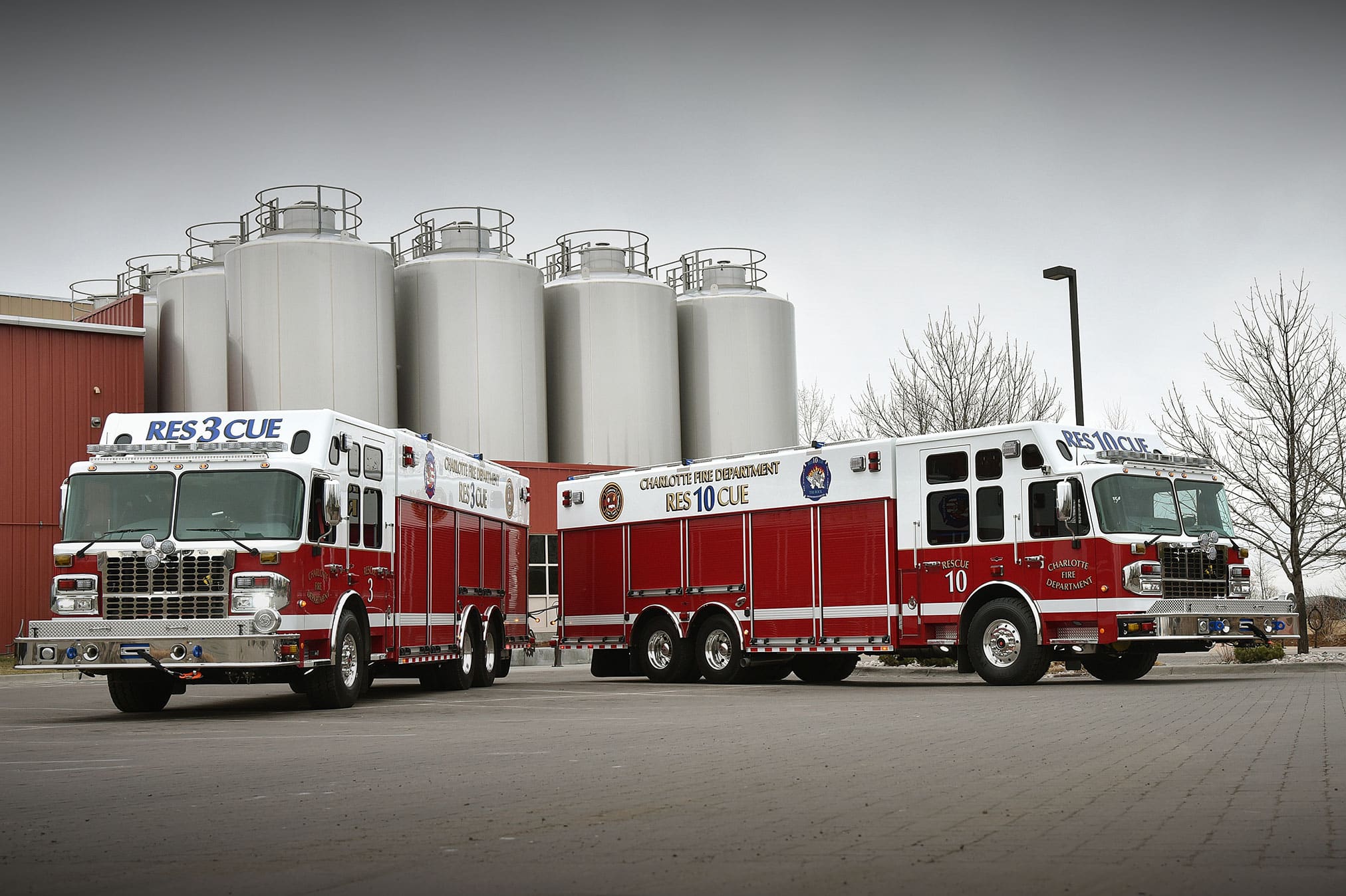

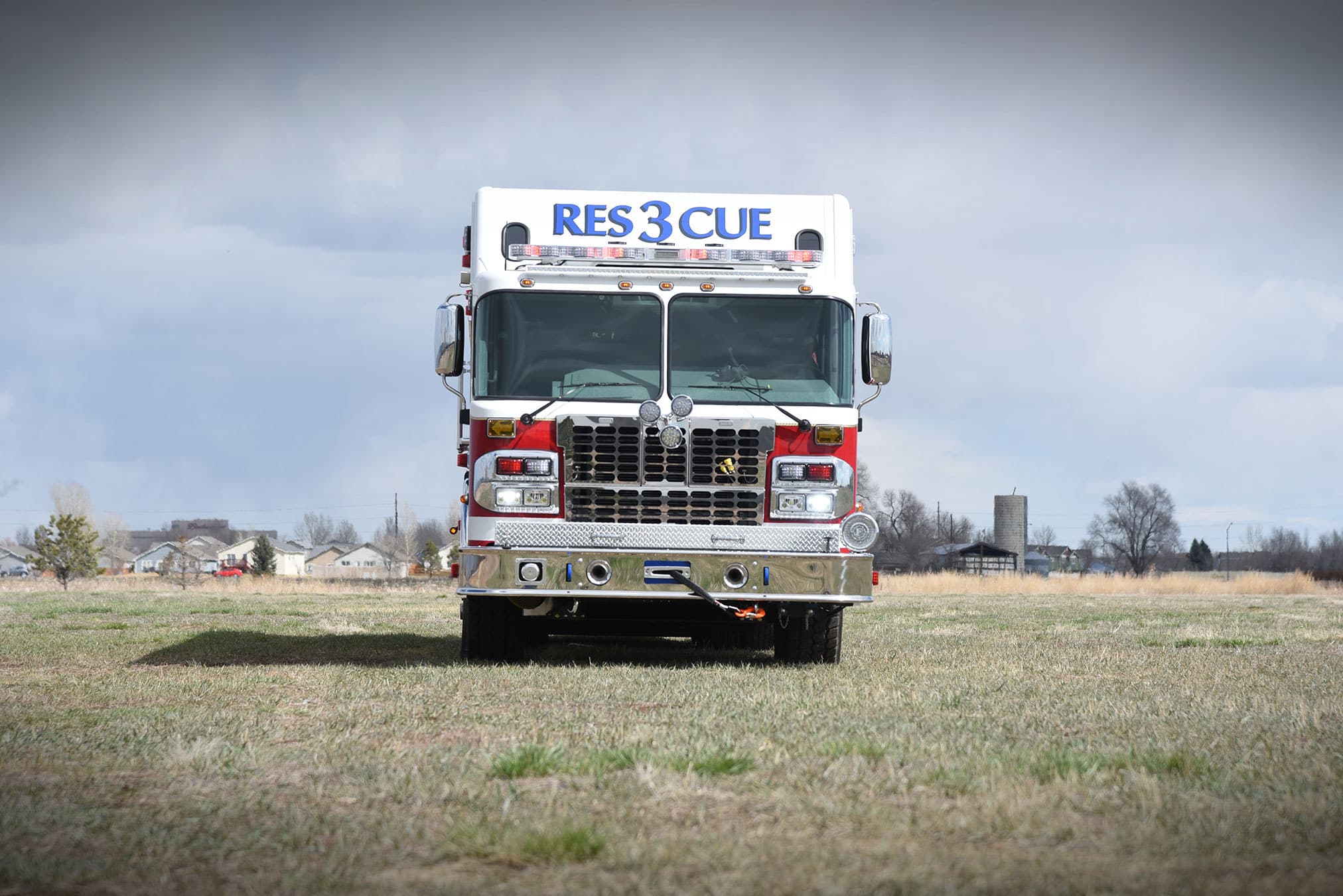

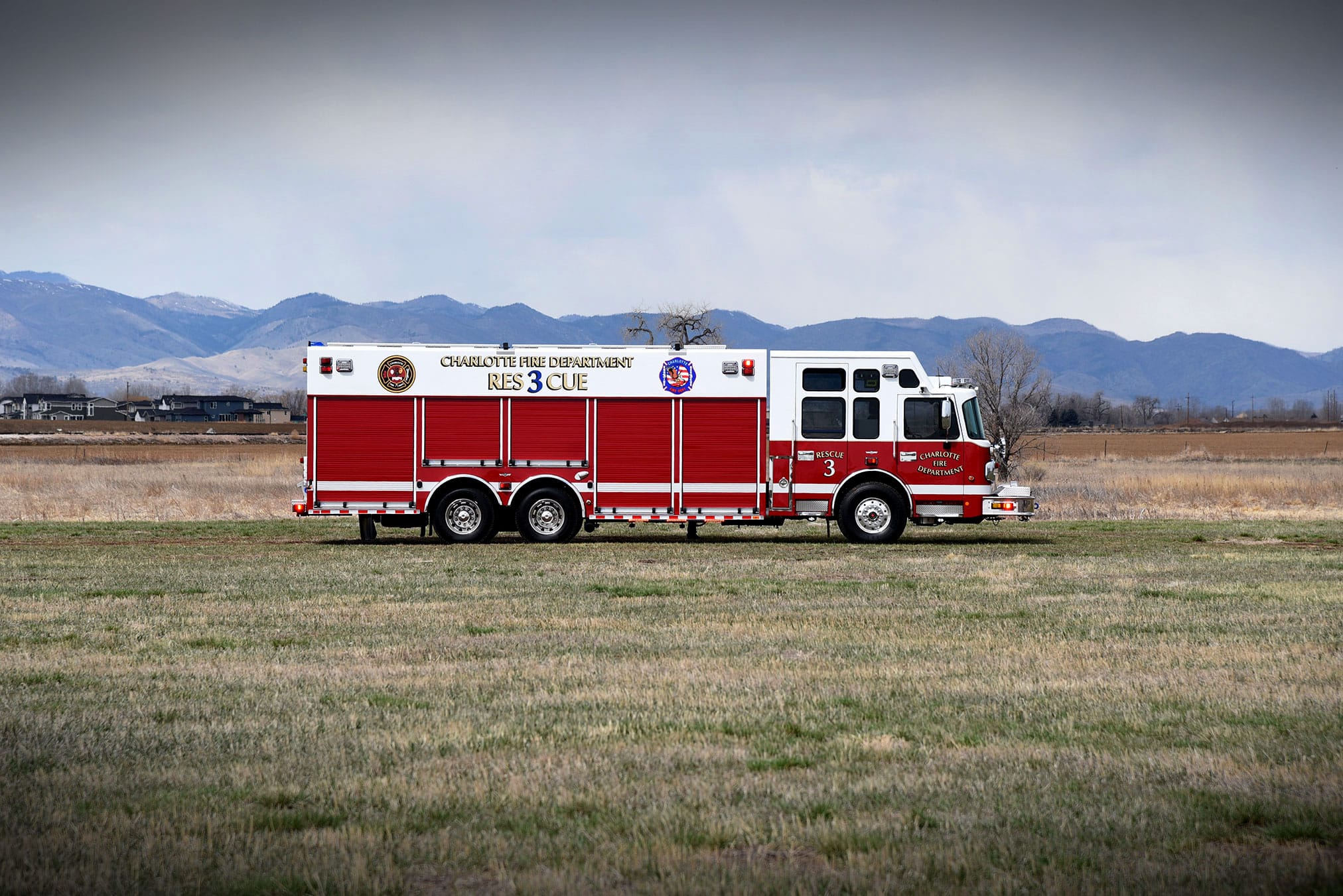

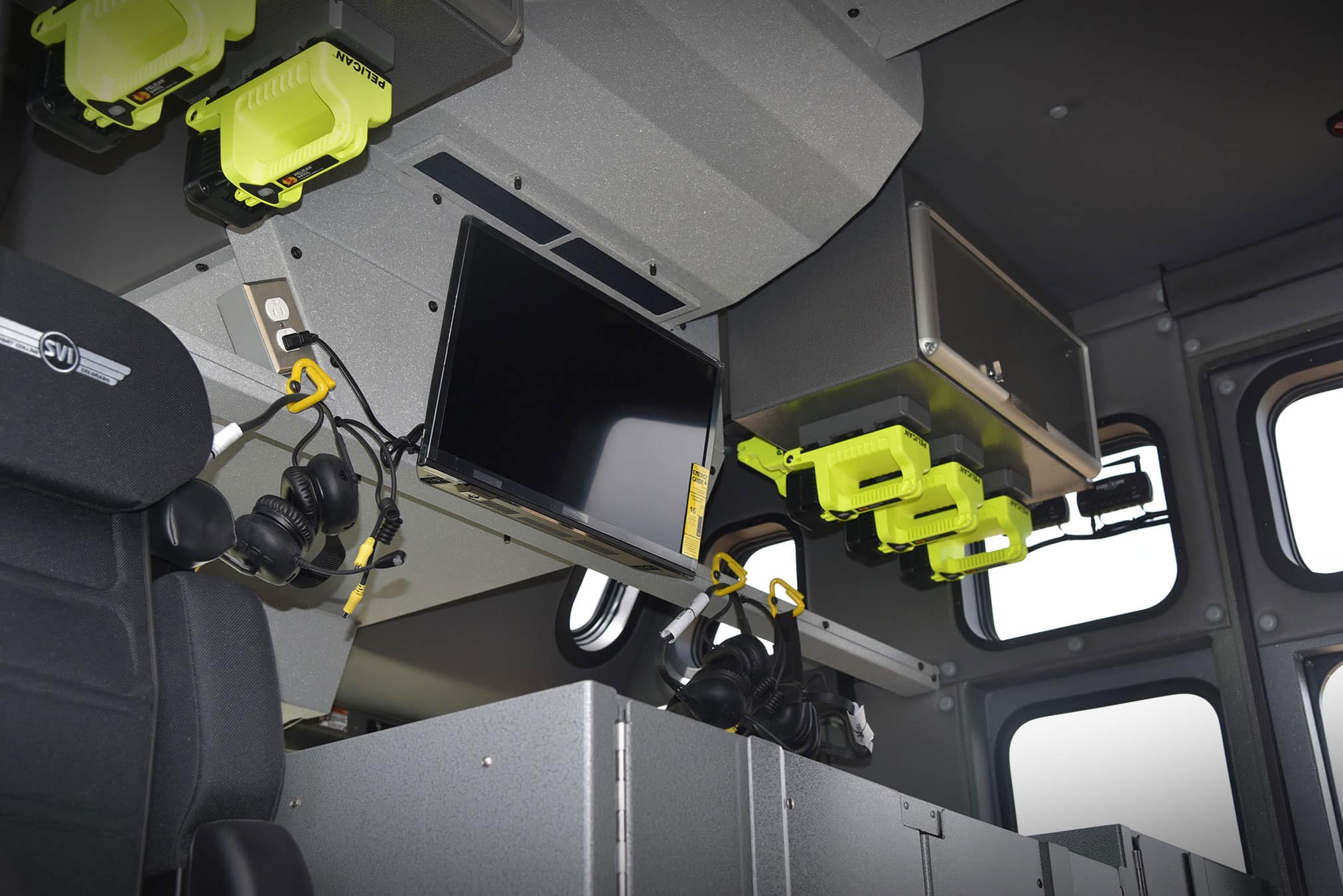

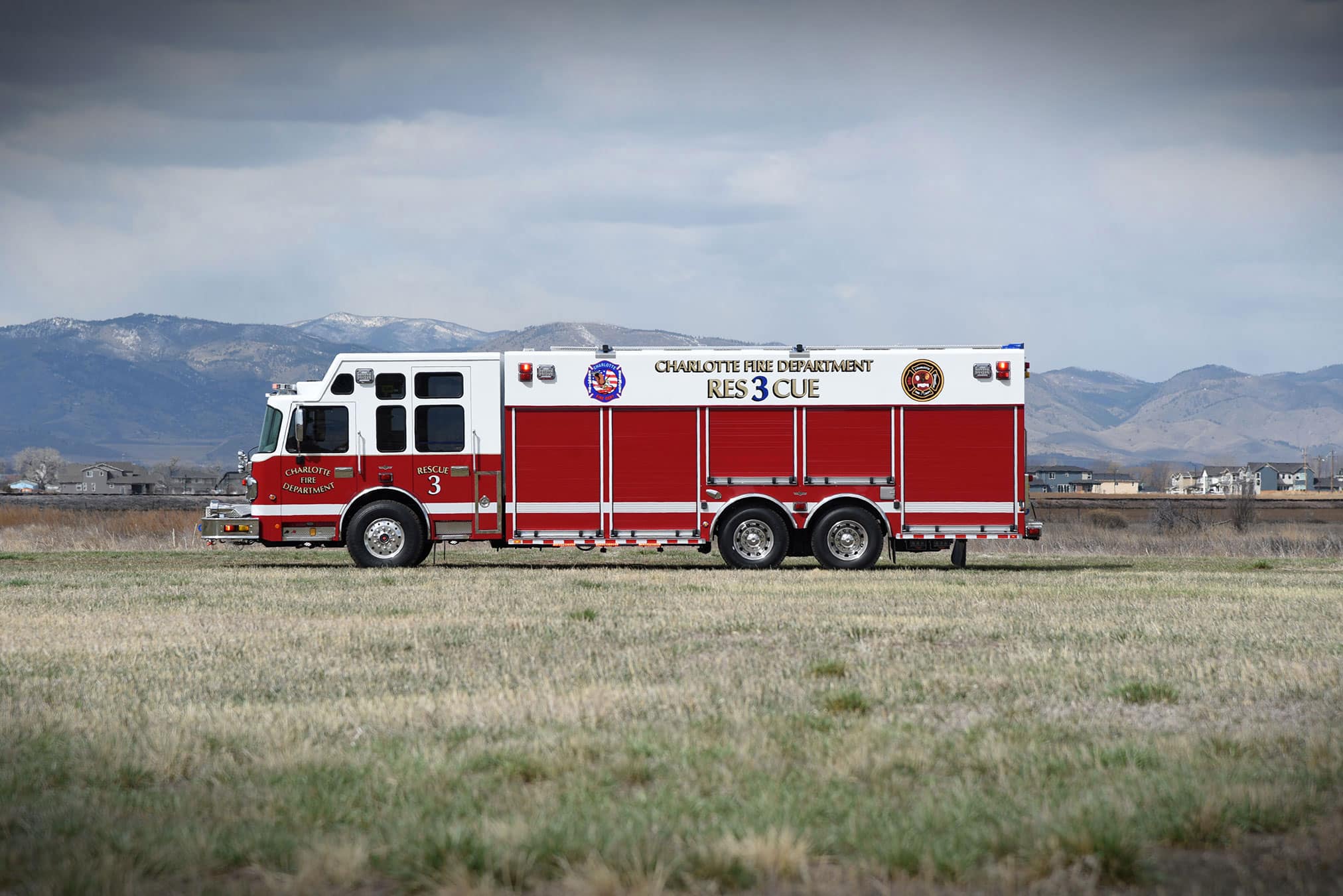

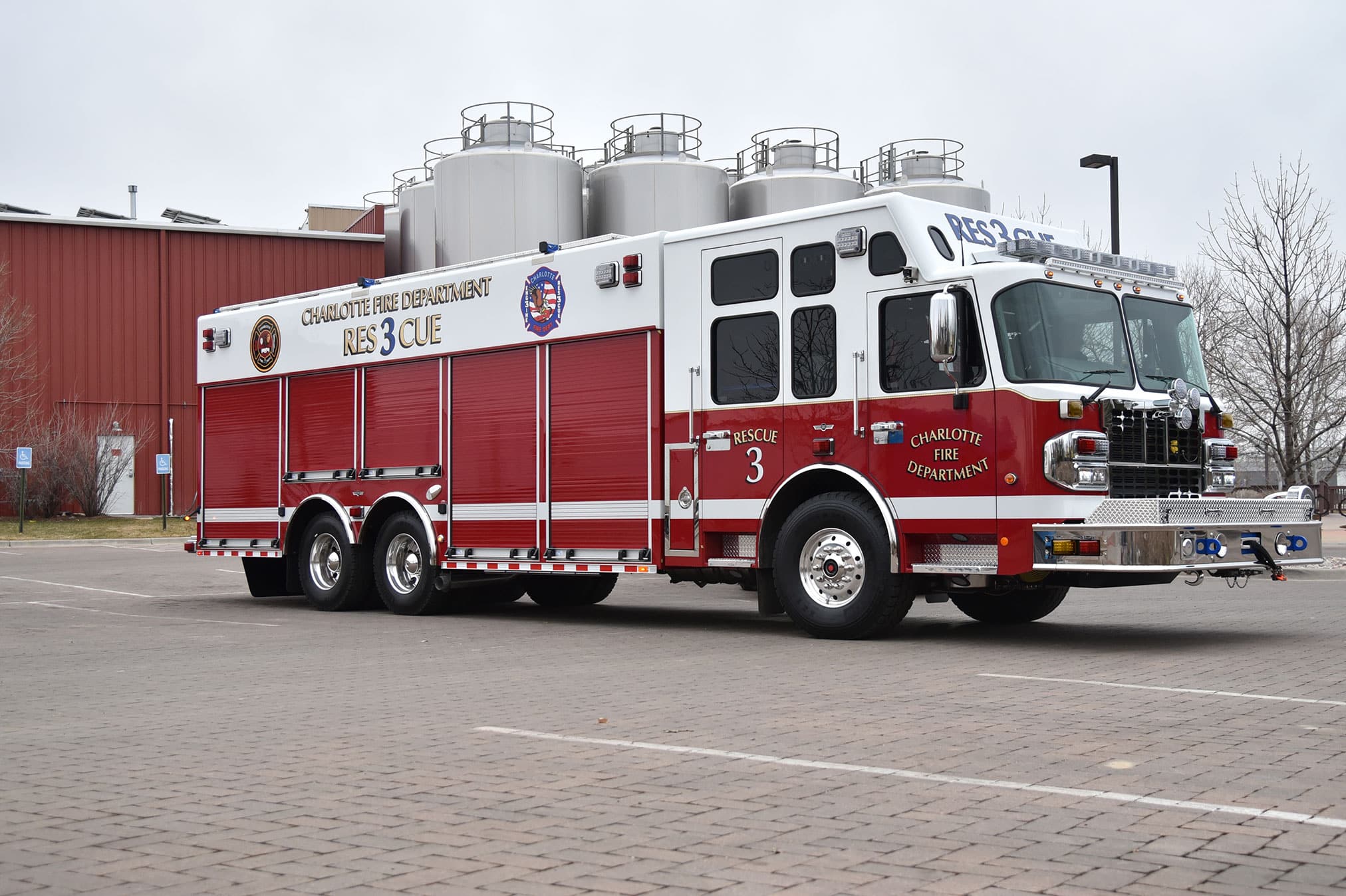

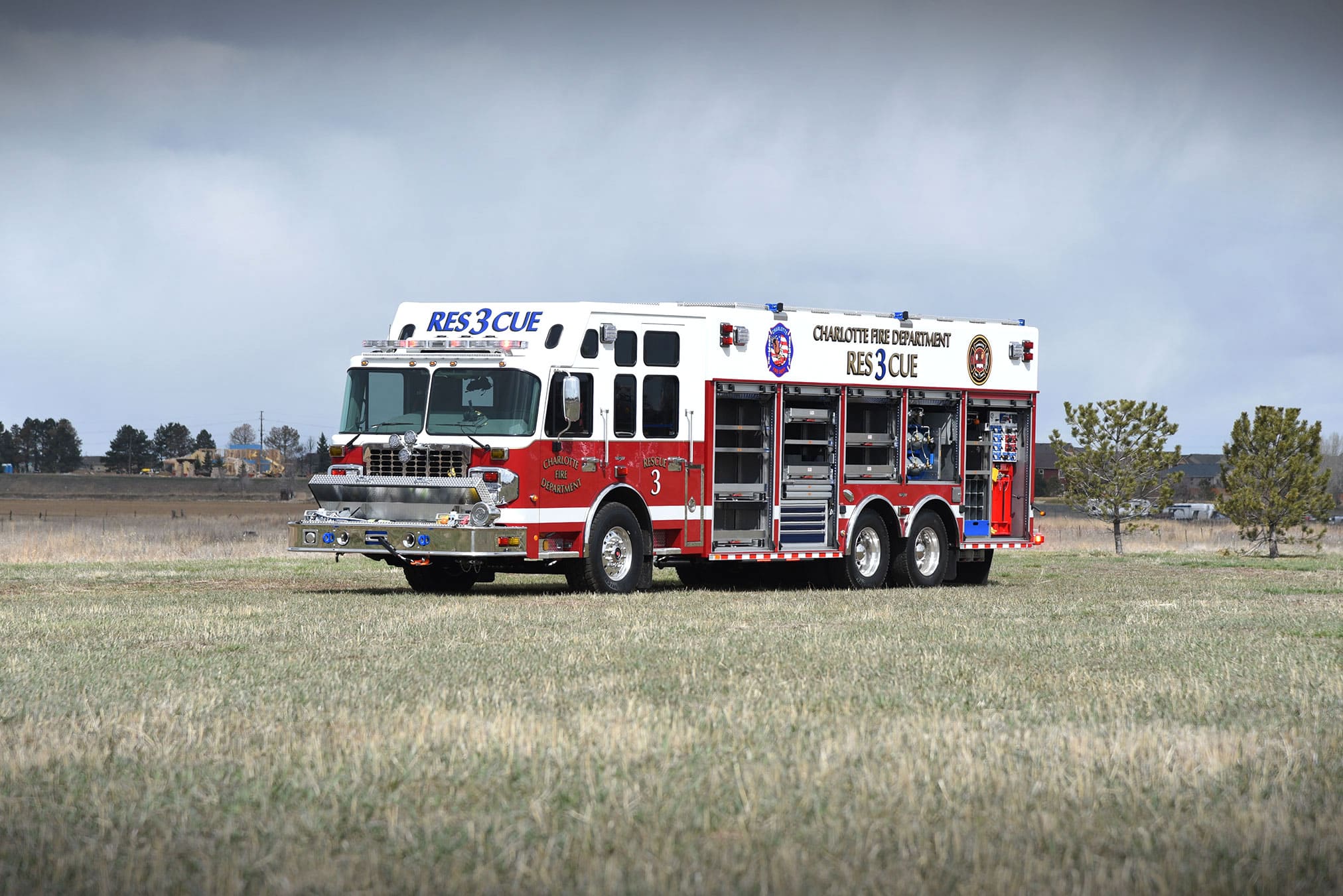

Charlotte (NC) Fire Department needed an apparatus as versatile as the department’s duties when speccing its two new heavy rescue units. Charlotte chose to build its two trucks on 25′ SVI stainless-steel bodies, each mounted on a Spartan four-door chassis with a powerful 600HP Cummins X15 engine. These two trucks are feature-packed units, featuring UNI DOT 6,000-PSI Storage, a Will-Burt Night Scan light tower, a Bauer BP25 25CFM 6,000-PSI Compressor, a Samsung  24″ LED smart TV, OnScene LED compartment lighting with cargo slides and a rear compartment under the stair walkway with powered lift door.

For more information about this apparatus, choose one of the options below or contact us for more details.



Cab: Spartan Gladiator LFD with 24″ RR
Engine: Cummins IS X15, 600 HP
Transmission: Allison 4000 EVPR
Wheelbase: 242″


Material: 12 Gallon Stainless Steel
Body Length: 25′
Overall Height: 11′
Overall Length: 41′

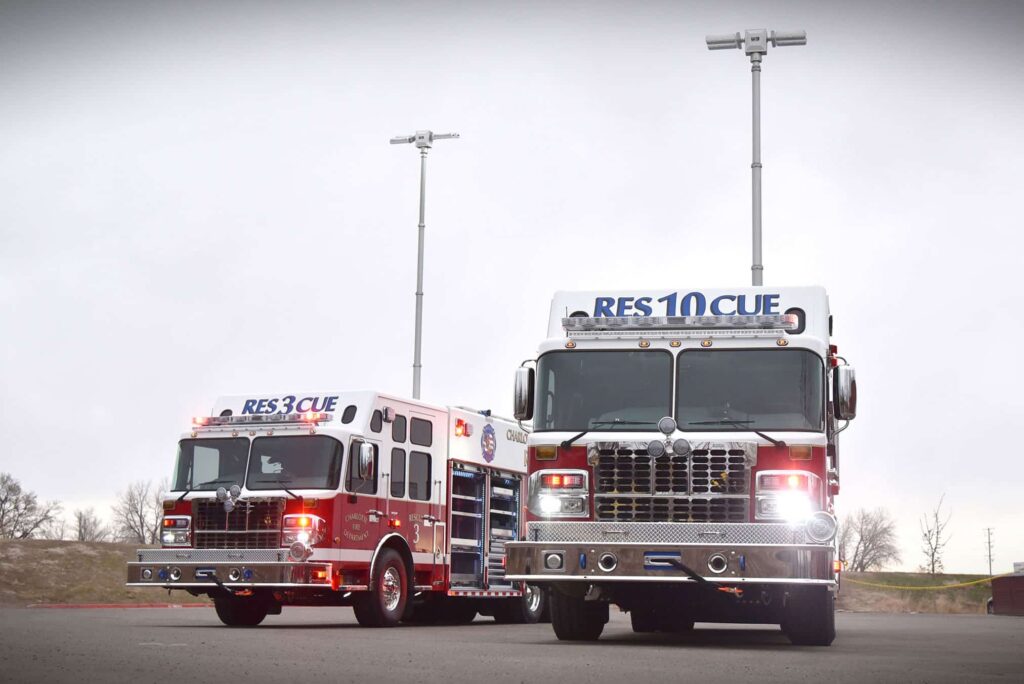

  • Will-Burt Night Scan VRT-4xXL 200 LED Light Tower
  • Lima MAC 360 40,000 Watt PTO Generator
  • OnScene Solutions LED Compartment Lighting
  • Whelen Freedom IV Rota-Beam LED 81″ lightbar

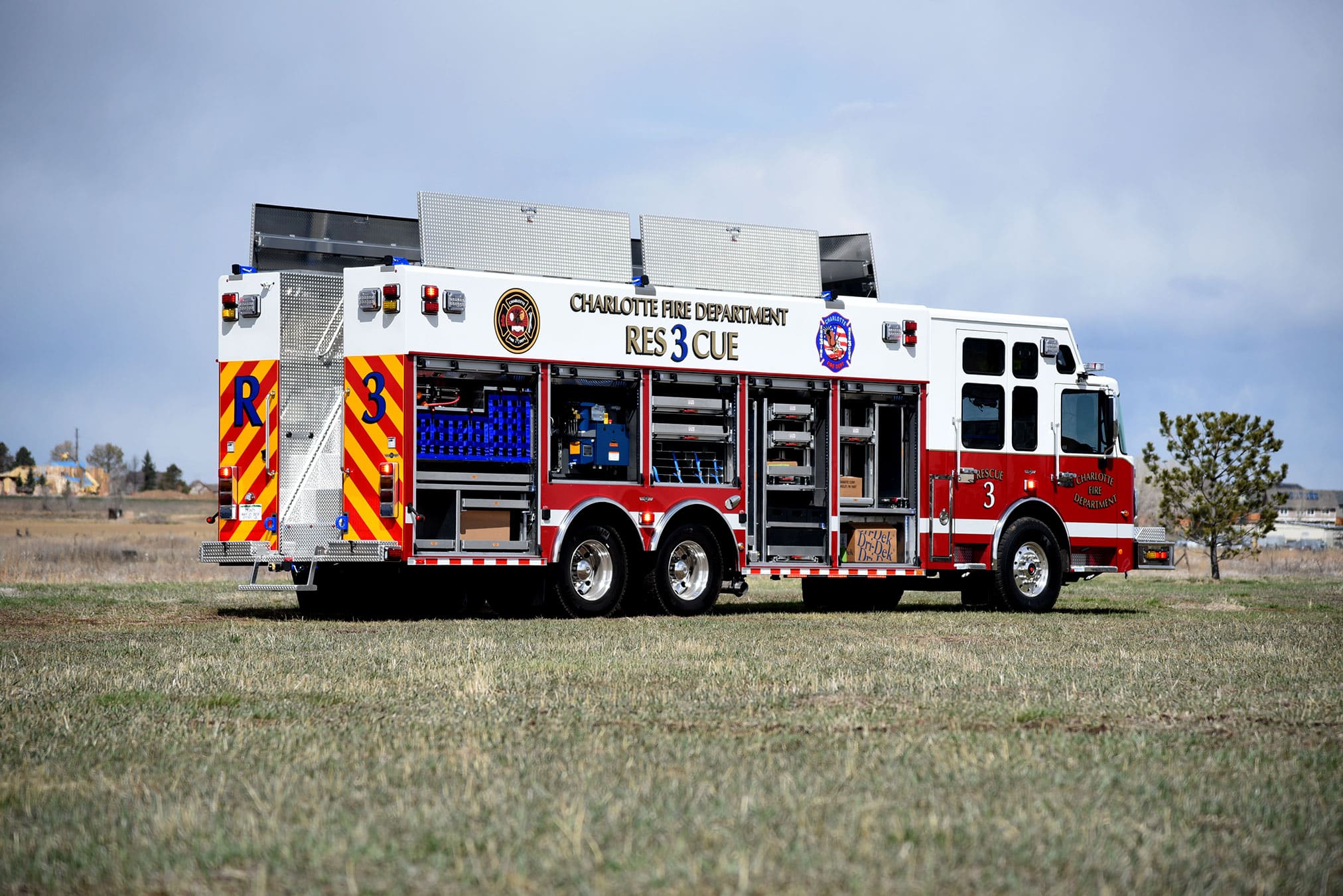

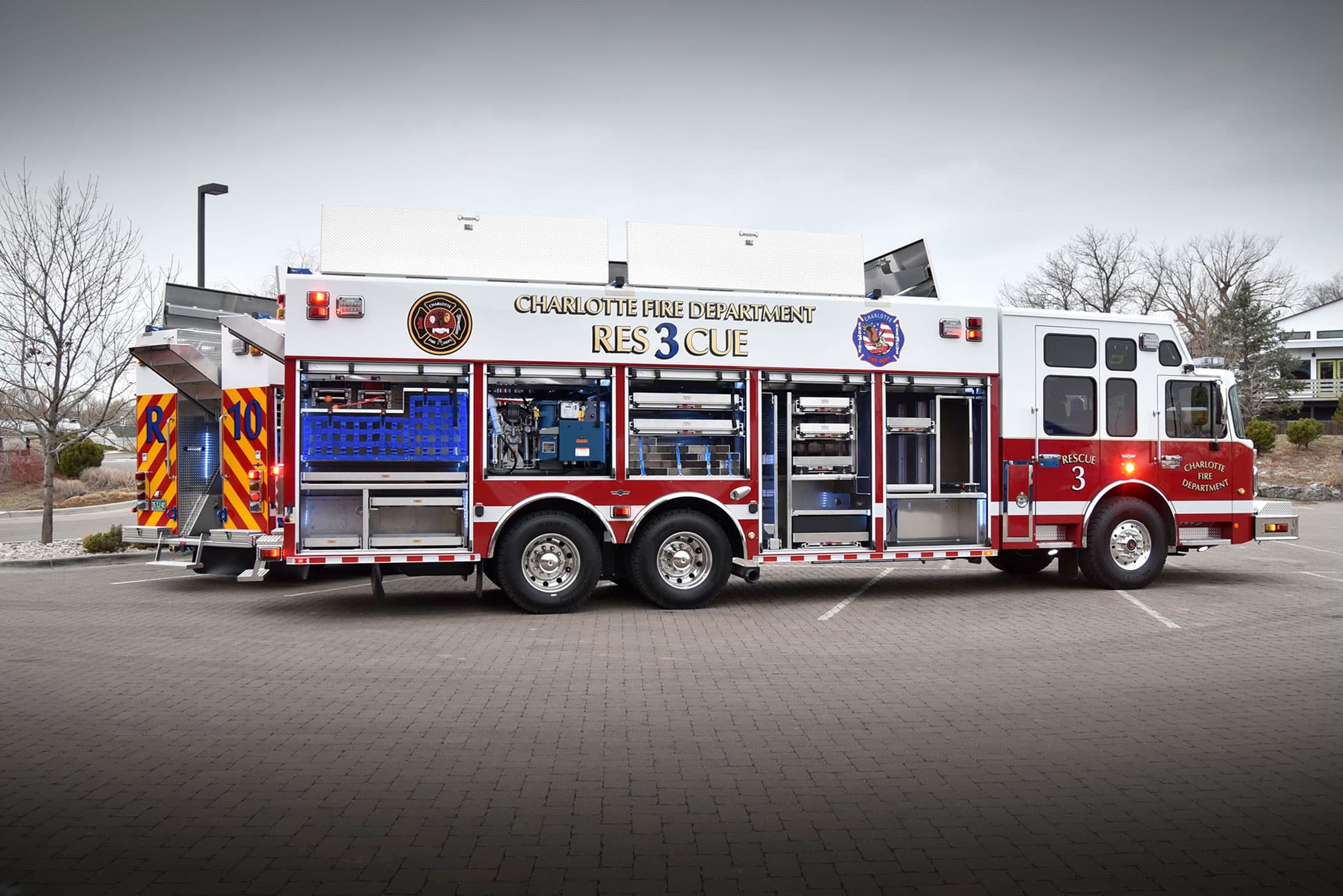

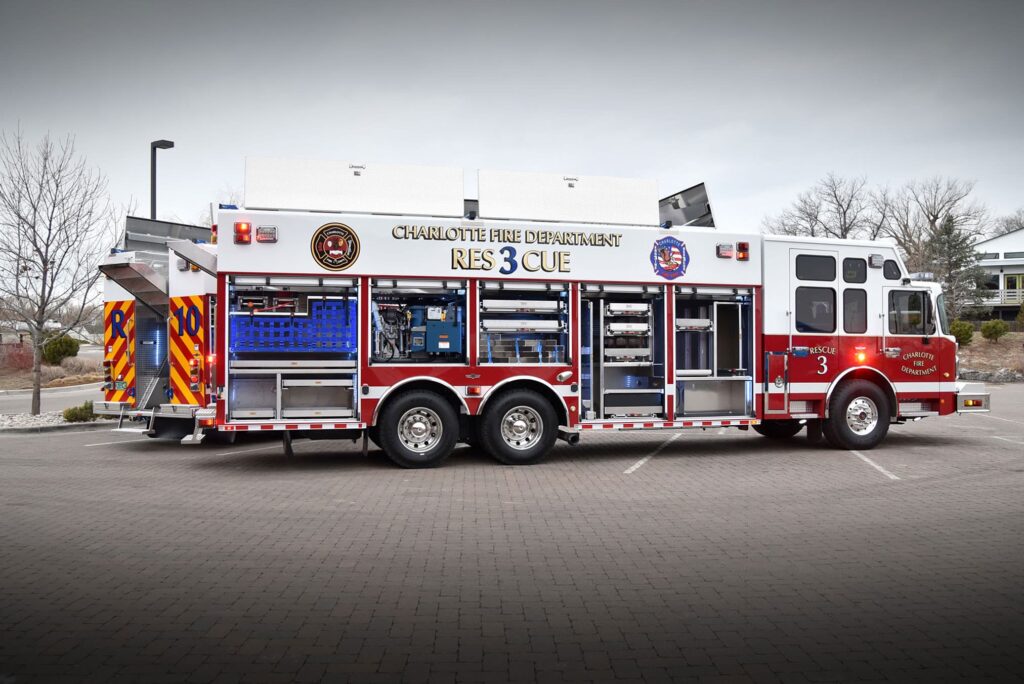

  • OnScene Aluminum Slide-Out Cargo Trays
  • Hannay 200′ Electric Cable Reels

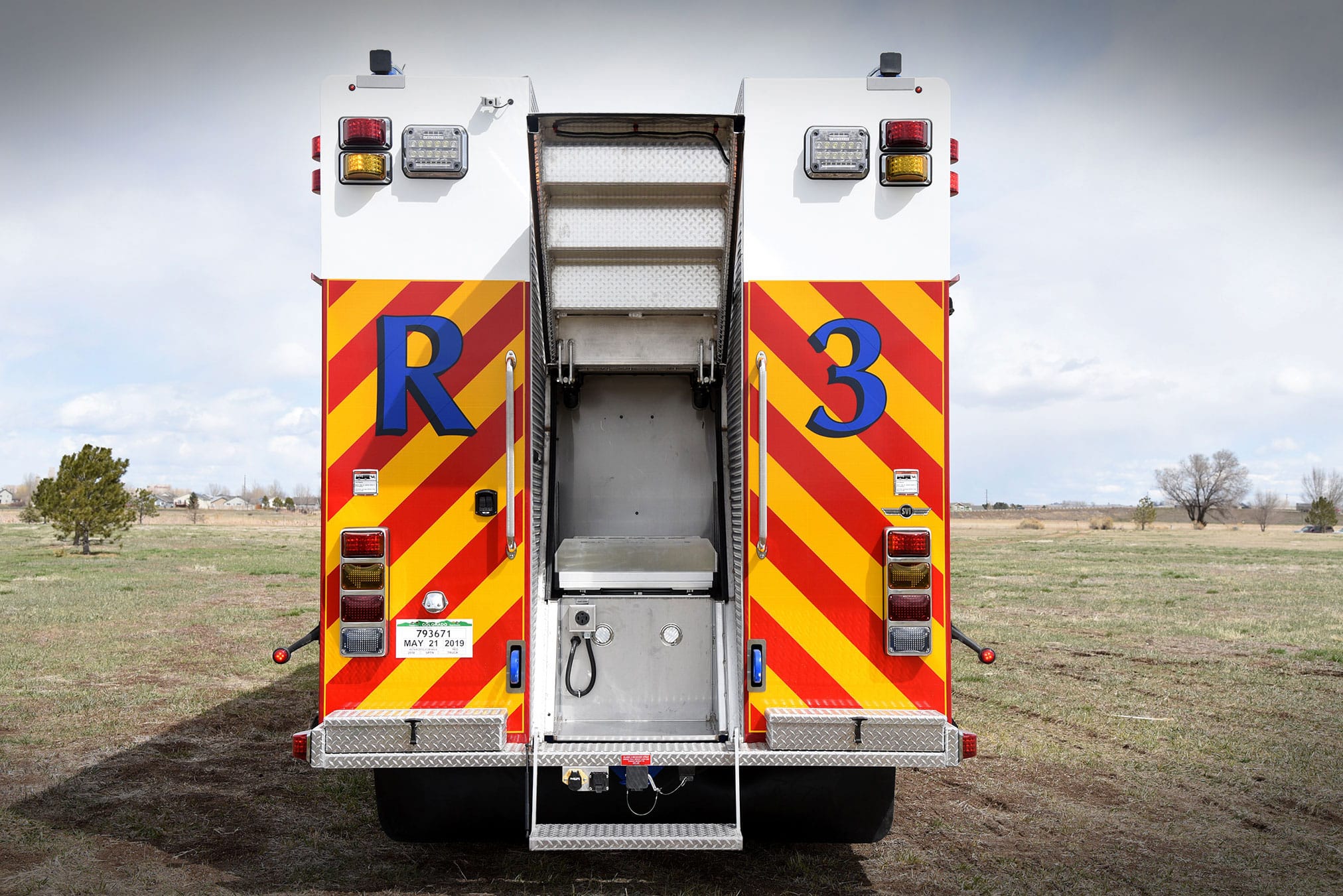

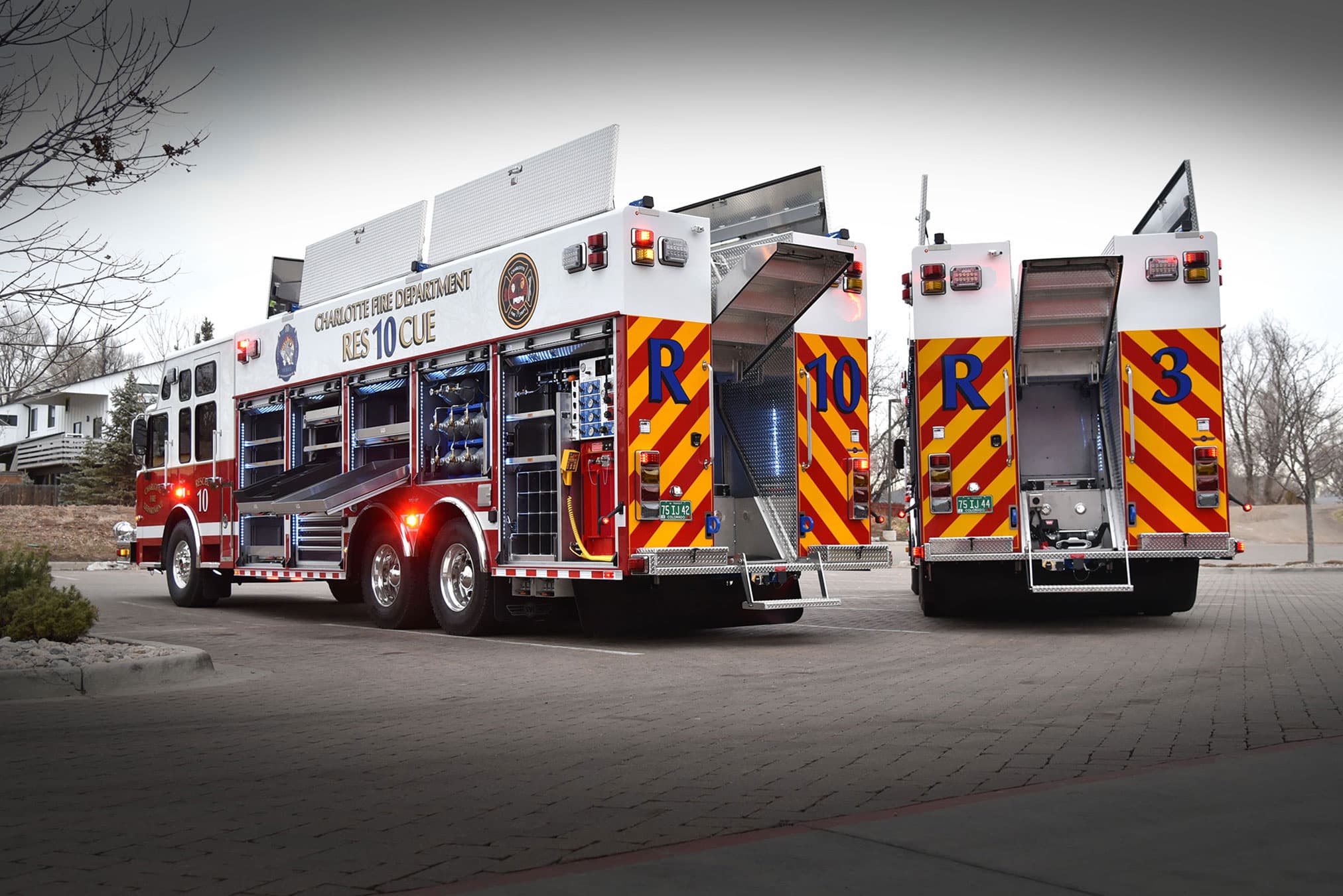

  • Walkway Step Compartment with Power Lift-Up Door
  • Bauer BP25, 25 CFM, 6,000 PSI Compressor
  • (8) UNI DOT 6,000 PSI Storage
  • V-MUX Vista IV Multiplex System Interface Displays

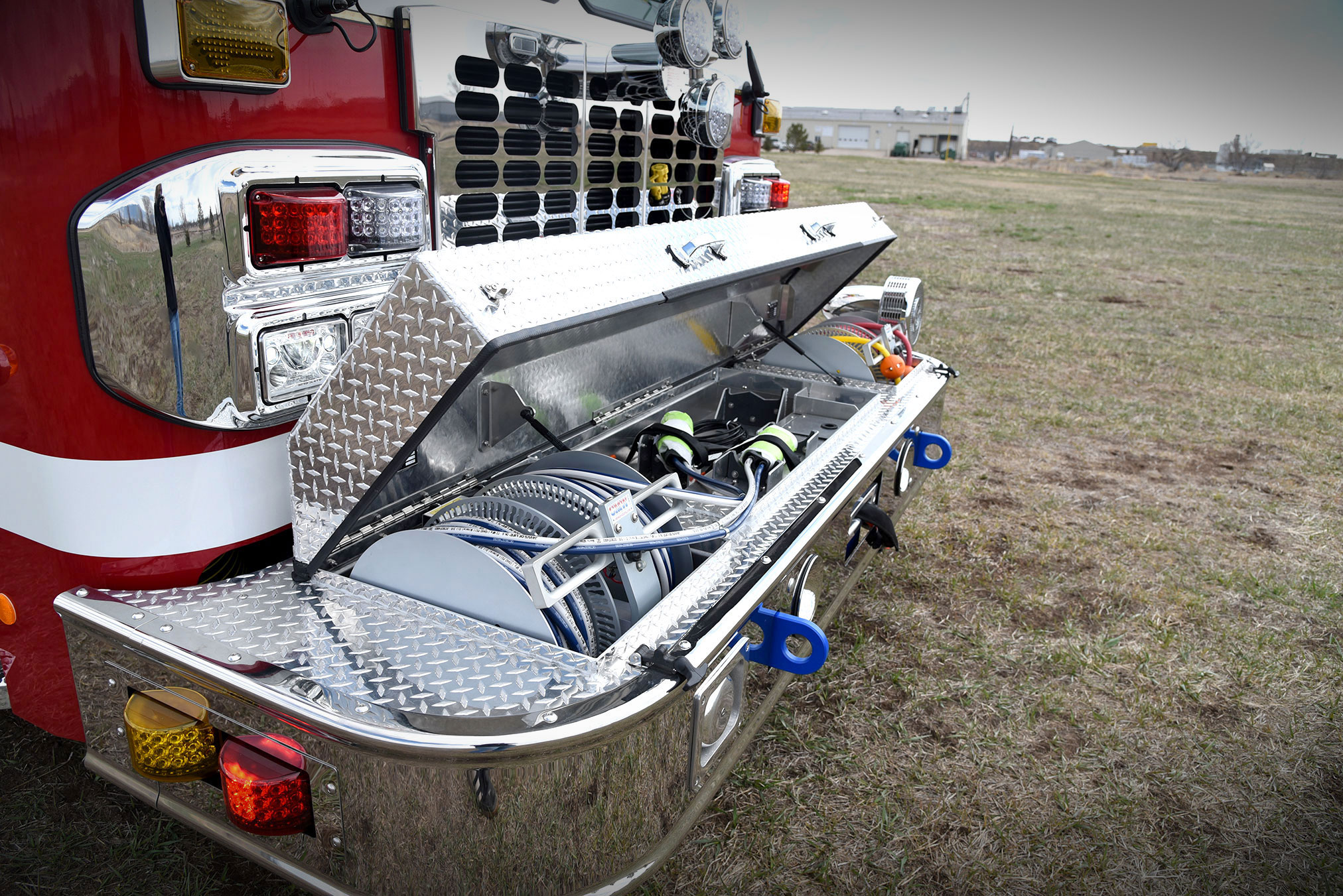

  • 9,000-lb. 12-Volt Electric Winch
