Elkhart Fire Department, IN Walk-Thru Heavy Rescue #1216

Elkhart Fire Department, IN Walk-Thru Heavy Rescue #1216

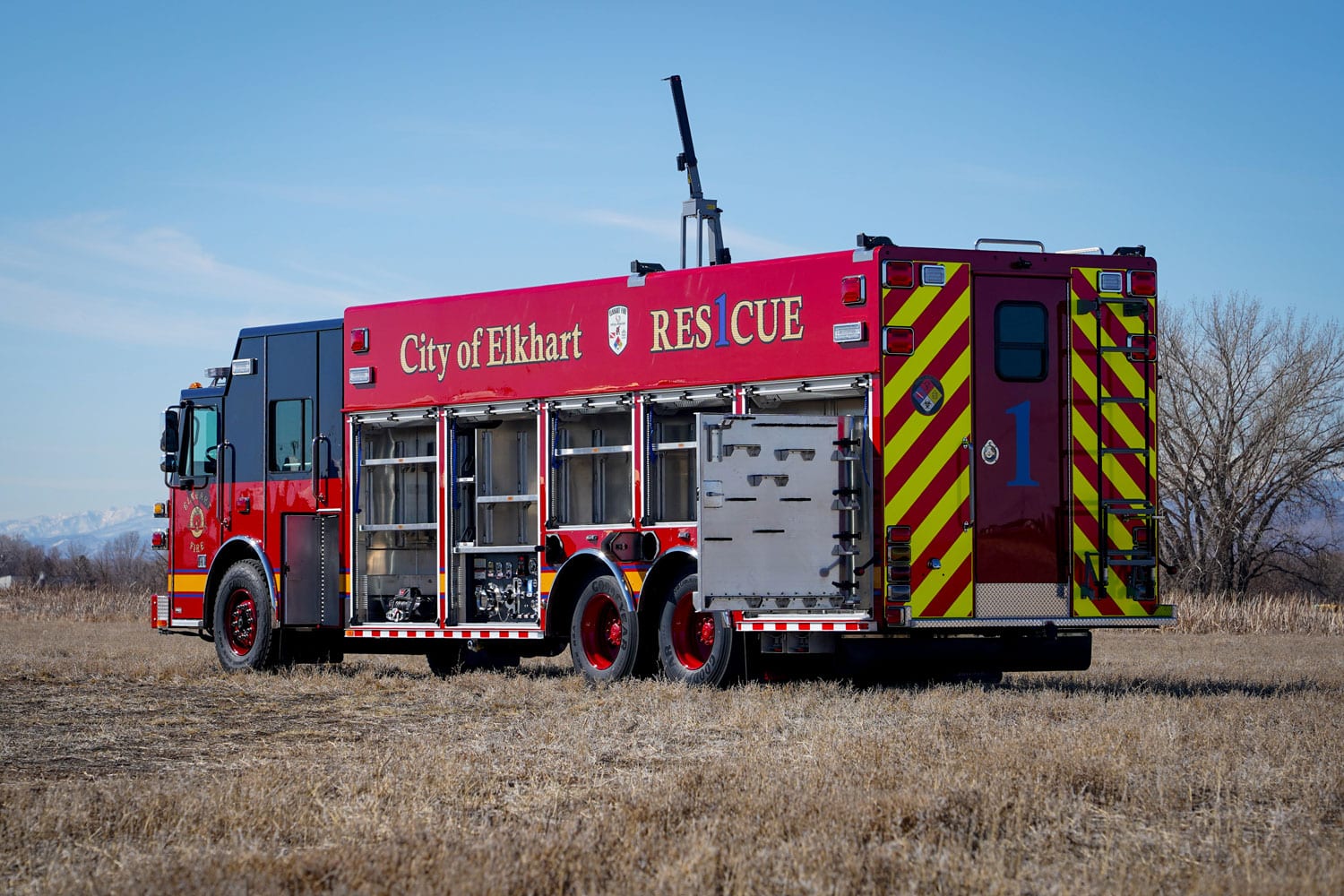

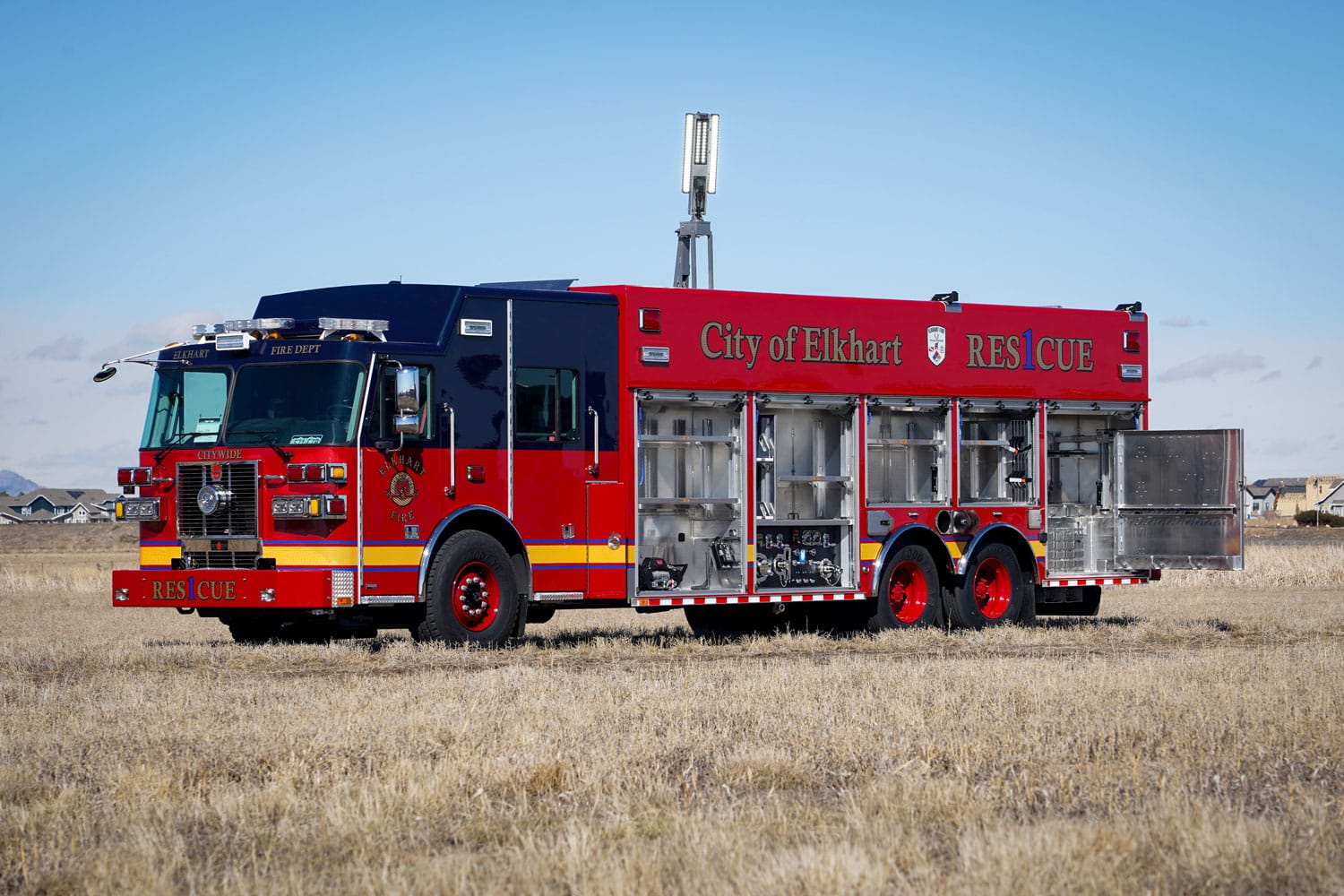

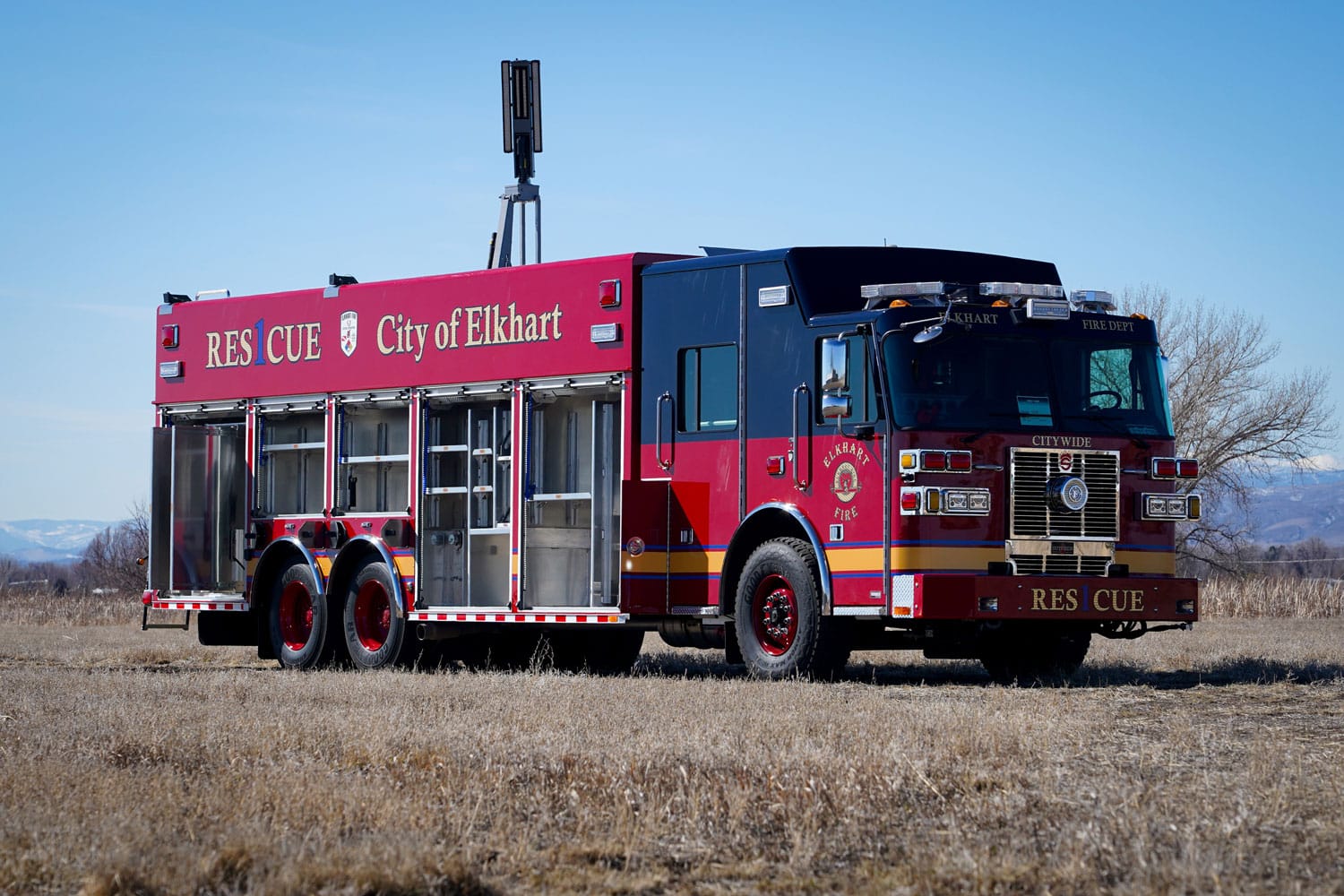

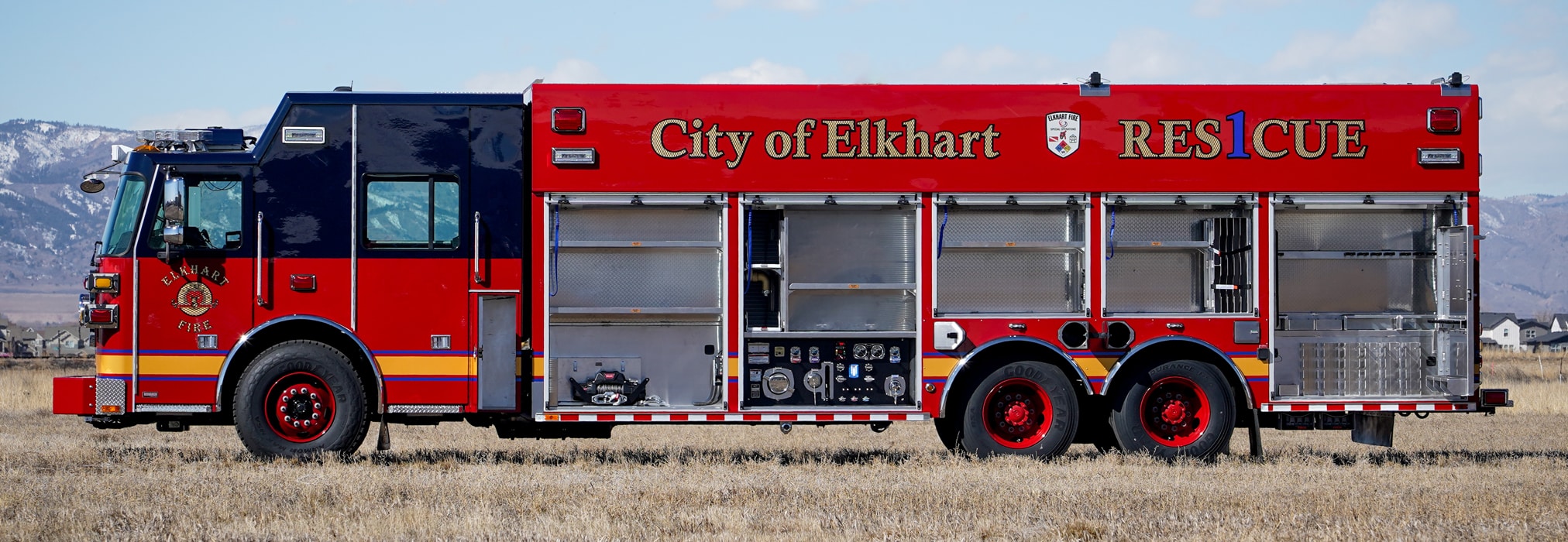

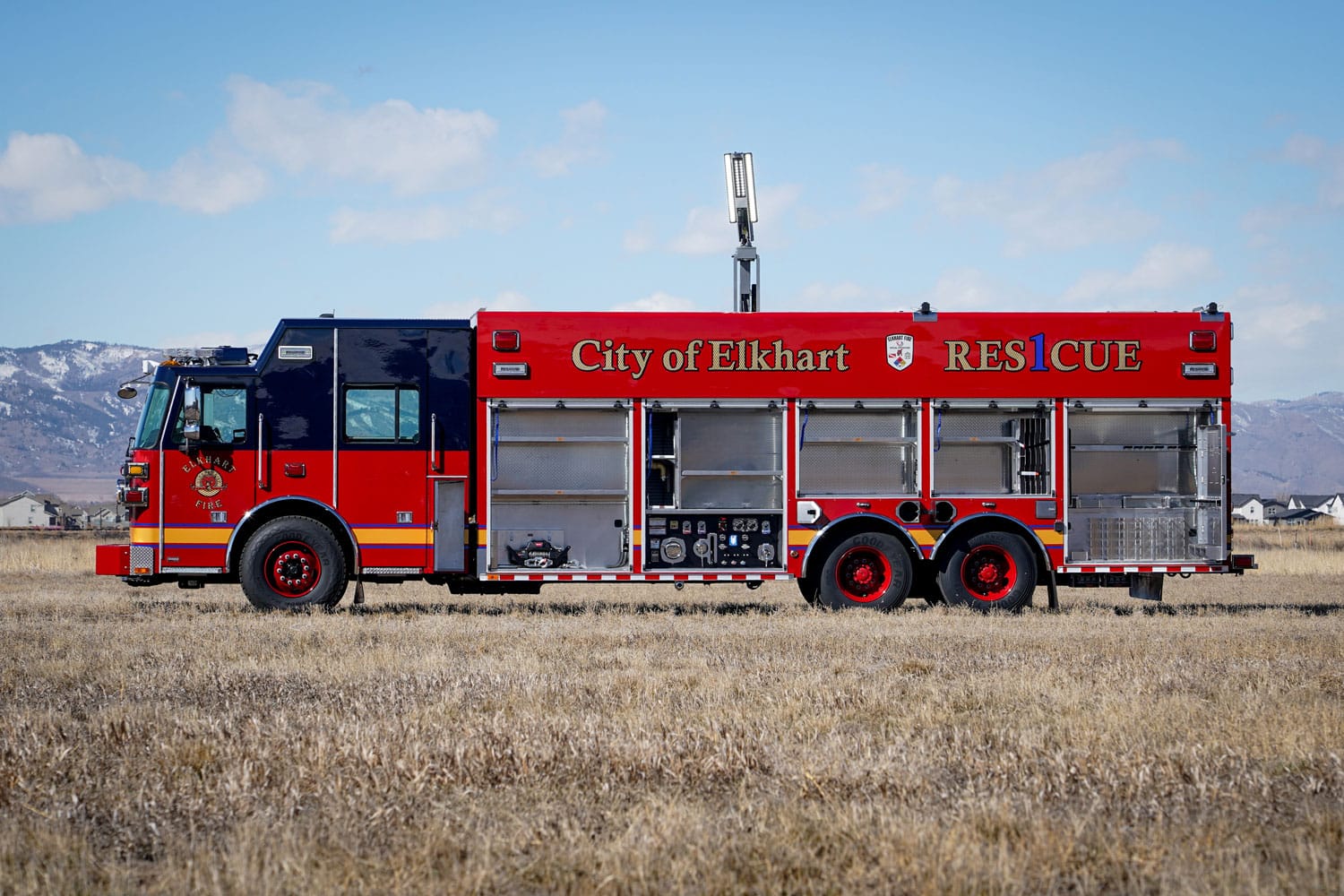

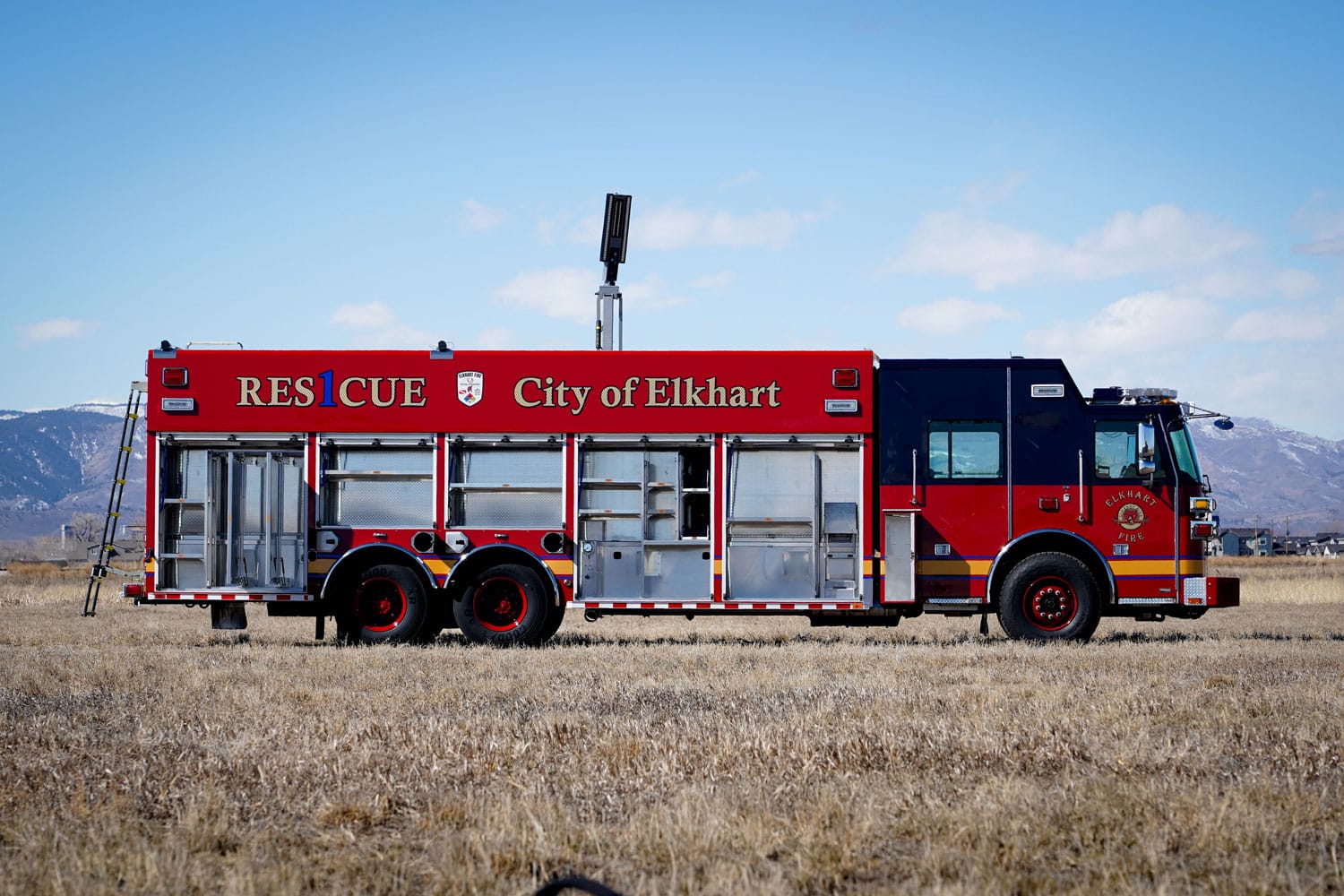

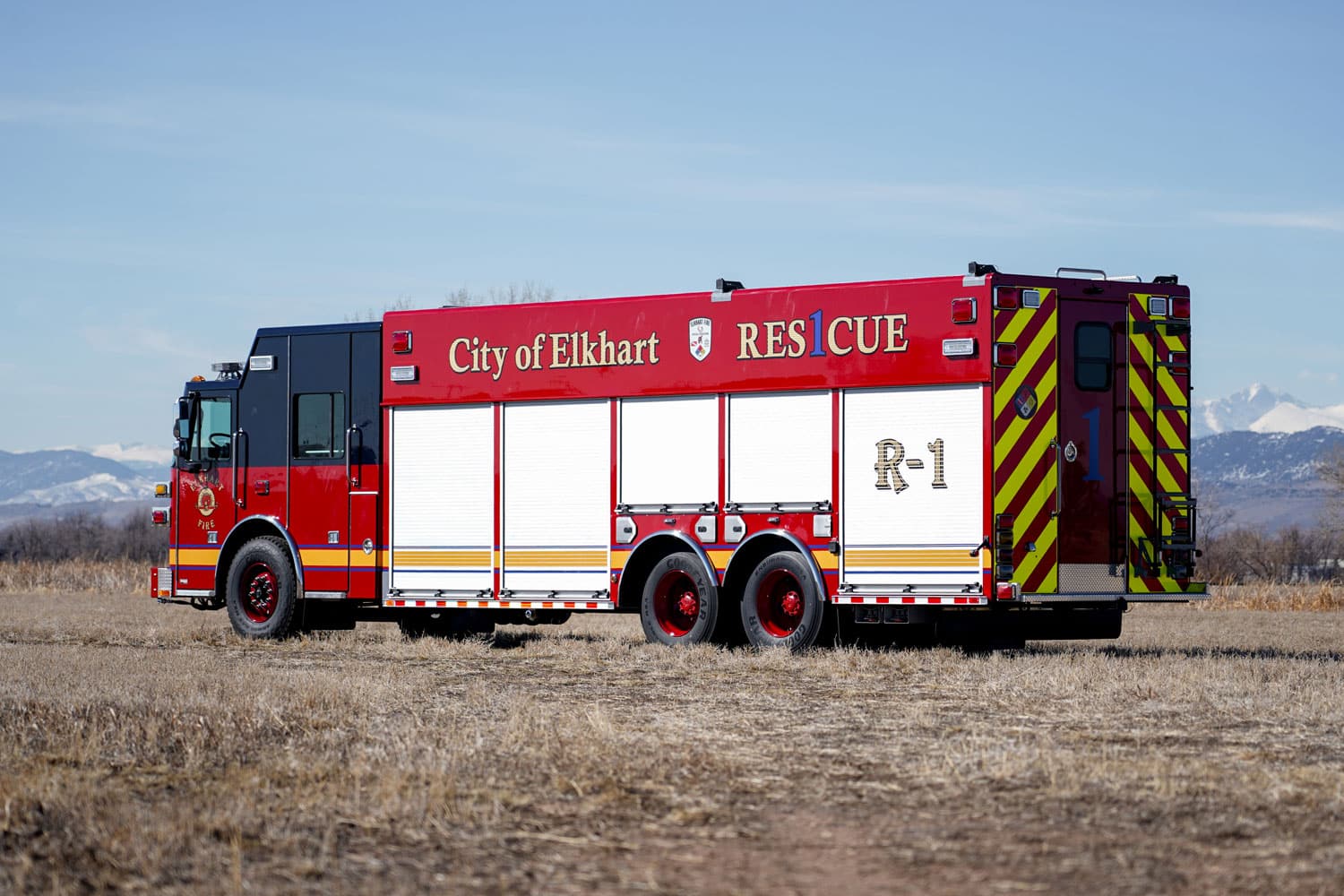

When spec’ing its new Heavy Rescue, Elkhart Fire Department chose a 26′ aluminum SVI body mounted on a Sutphen Monarch chassis, which houses an X12 Cummins engine and Allison 4000 6-speed transmission. This Heavy Rescue apparatus comes with a 750 GPM Hale MBP75-29 Pump Station, a 70″ x 60″ Swing-Out Tool Board, KL Slim Light Tower, and much more.

For more information about this apparatus, choose one of the options below or contact us for more details.



Cab: Sutphen Monarch, 20” RR
Engine: Cummins X12
Transmission: Allison 4000 EVS
Wheelbase: 263″


Material: Aluminum
Body Length: 26′
Overall Height: 11′-3”
Overall Length: 40’– 9″

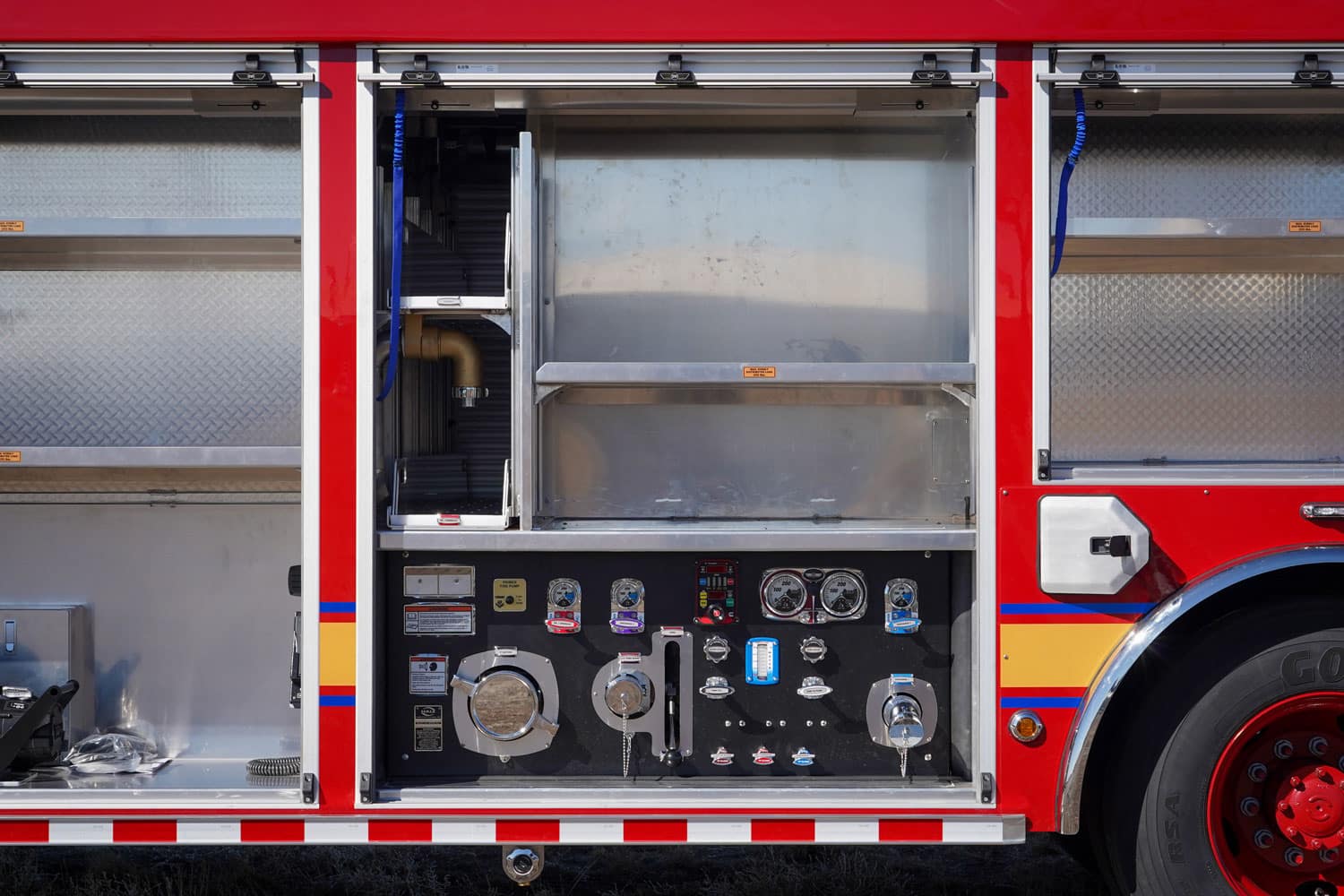

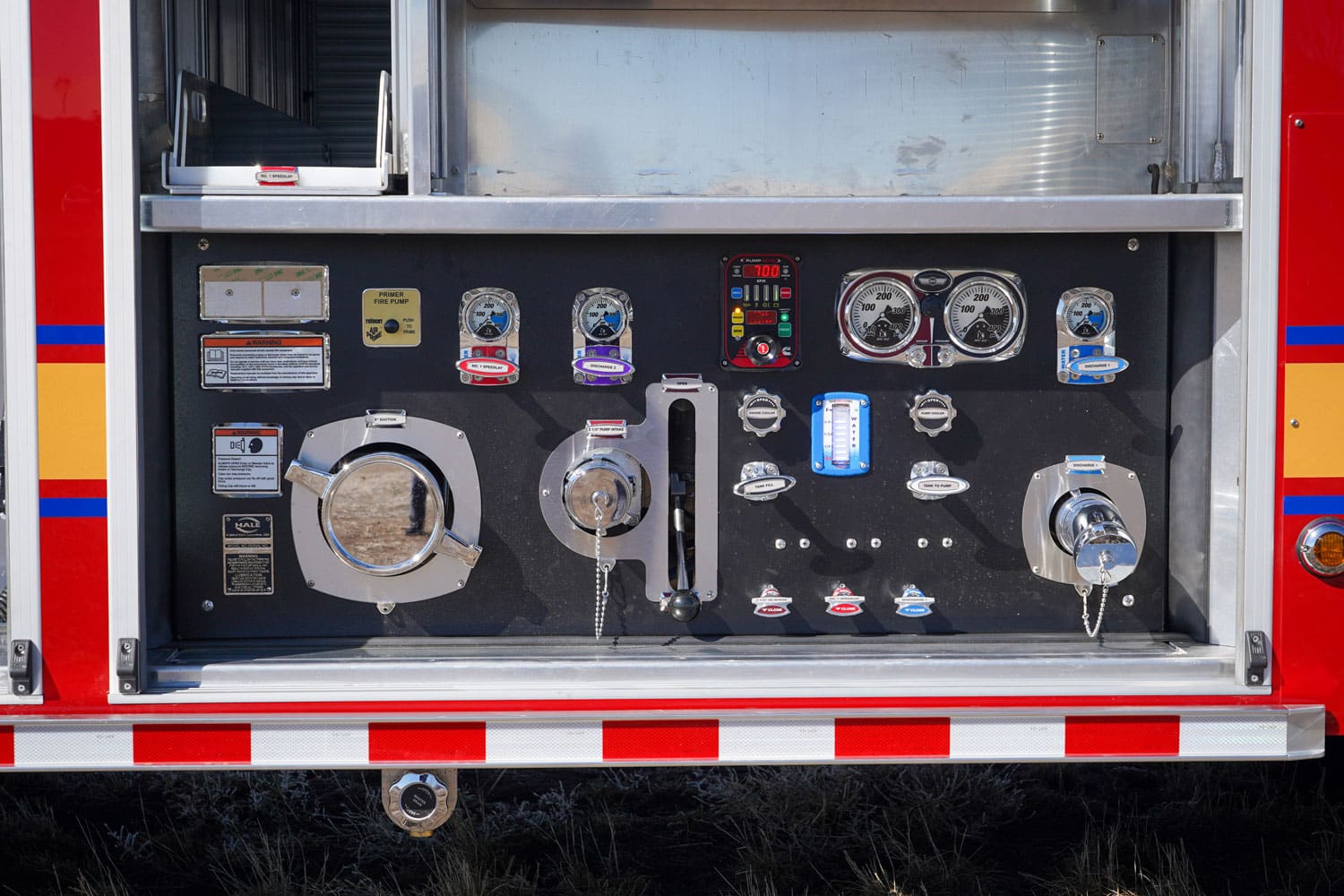

  • Hale MBP75-29 750 GPM Pump Station
  • 250-Gal.-Capacity Water Tank
  • 70” x 60”  Heavy-Duty Swing-Out Tool Board
  • (2) Aluminum Vertical Tool Boards
  • Pivot-Guided Boat Motor Storage
  • Portable Warn Zeon 8-S Winch
  • Removable Rope Anchors
  • Command Light KL Slim Light Tower
  • FRC Spectra Max Scene Lighting
  • OnScene Solutions Access LED Compartment Lighting

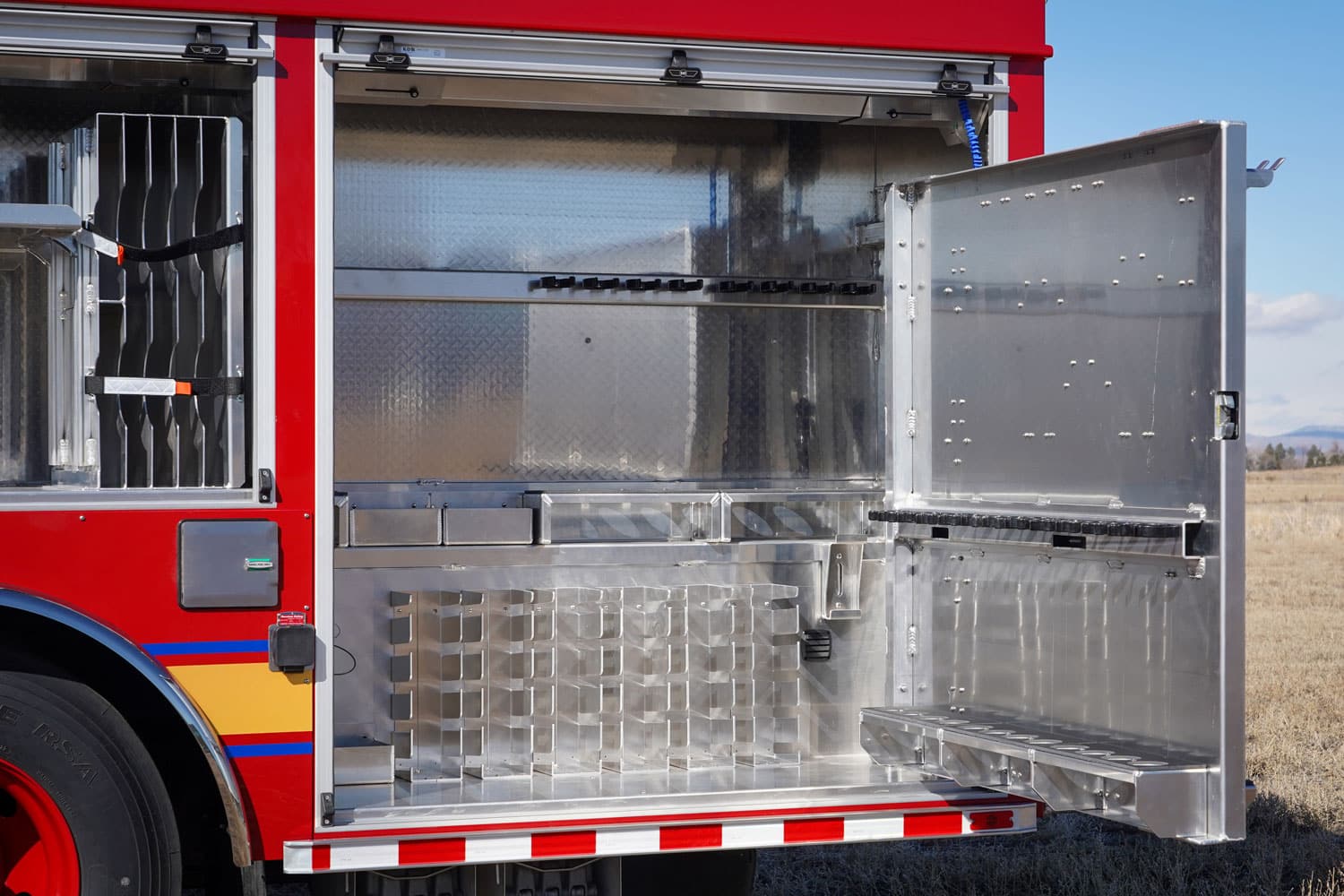

  • ROM Series IV Roll-Up Compartment Doors
