UC Berkeley PD-EOD Unit

UC Berkeley PD-EOD Unit

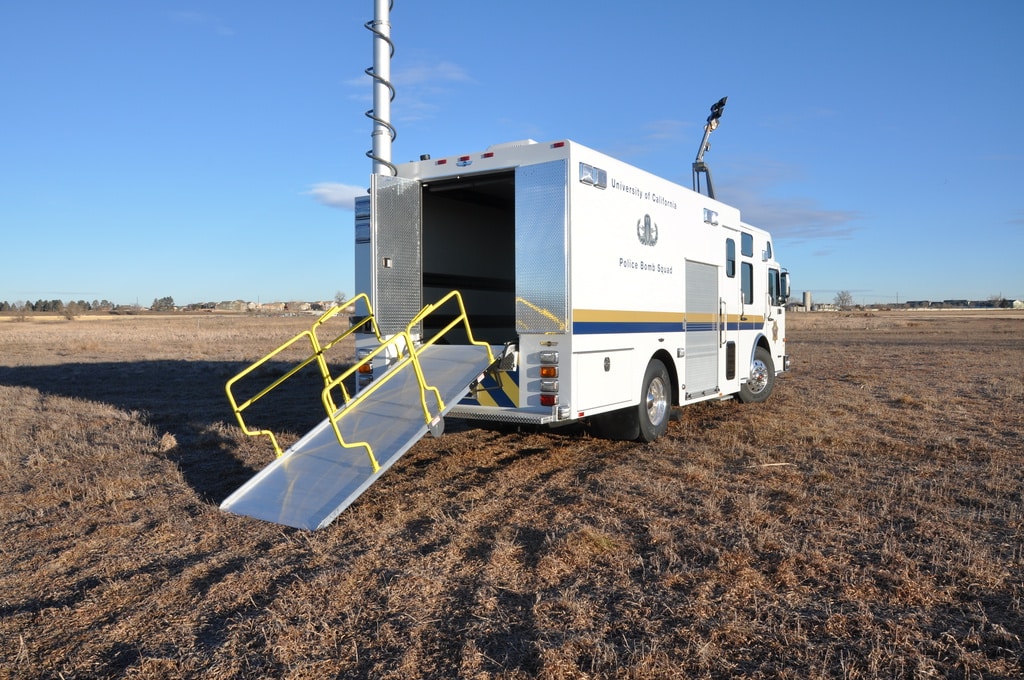

When the University of California at Berkeley needed an EOD (Explosive Ordinance Disposal) Unit, they knew to call SVI Trucks. Their new strong-bodied aluminum apparatus is mounted on a Metro Star chassis and houses a Cummins ISL 450-horsepower engine. The new EOD unit features a Command Light 3,000-watt light tower, a Pelco ES31C22-SN camera system mounted on a 40-foot telescopic mast, a 25kW Onan Protec PTO generator, and much more!

For more information about this apparatus, choose one of the options below or contact us for more details.

Chassis

Cab: Spartan Metro Star with 20″ RR
Engine: Cummins ISC8.3, 380 HP
Transmission: Allison Gen IV-E EVS 3000
Wheelbase: 190″

Body

Material: Aluminum
Body Length: 18′
Overall Height: 11′ – 6″
Overall Length: 31′ – 6″

Features

CL Command Light Series Tower
Pelco Camera System
40′ Telescopic Mast
25kW Onan Protec PTO generator

Detailed Specs

Drawings

UC_BERKELEY_CA_BMB_PCM1

Download Drawings
