Wilmar, CA Air/Light Unit #1185

Wilmar, CA Air/Light Unit #1185

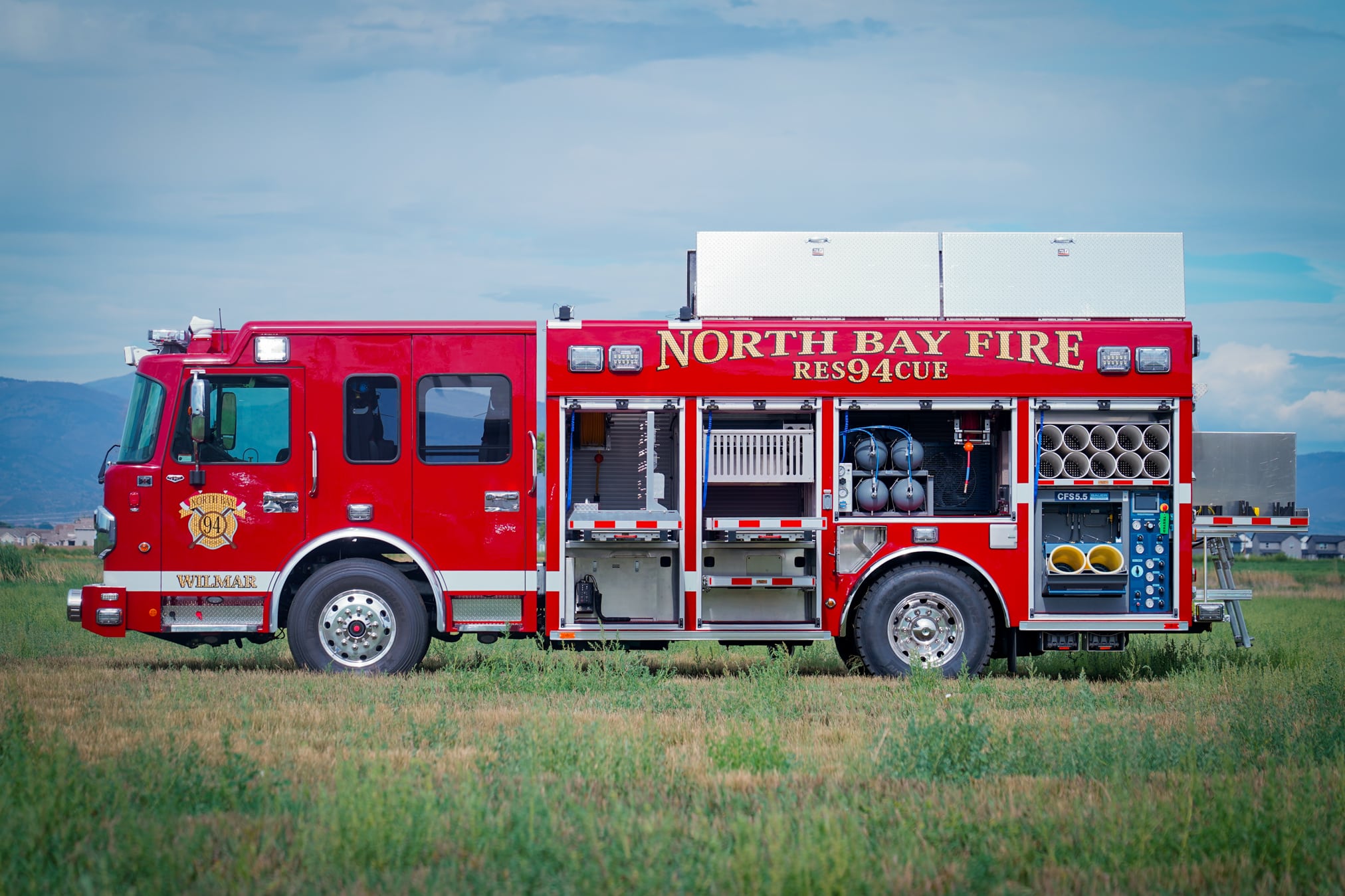

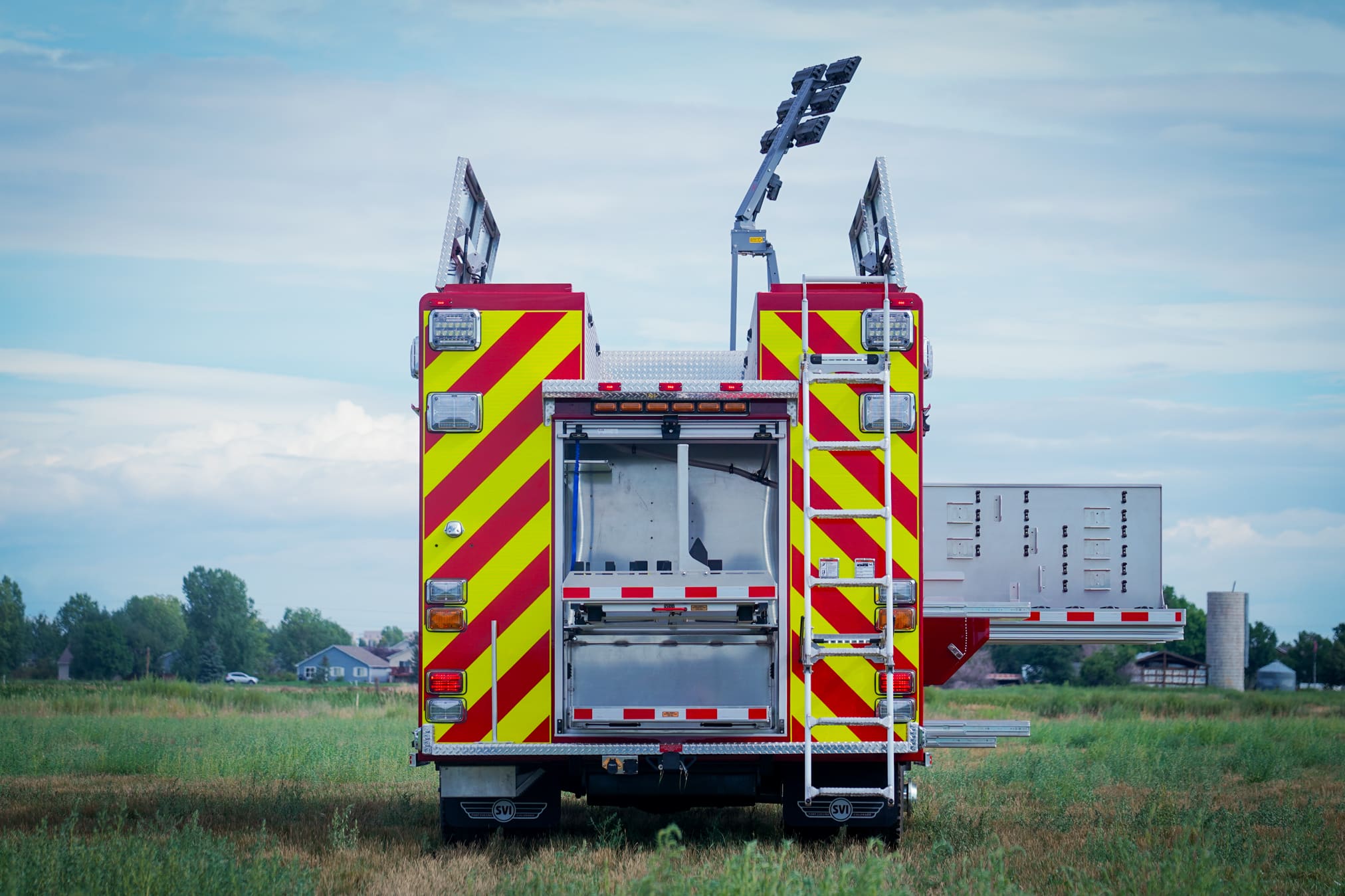

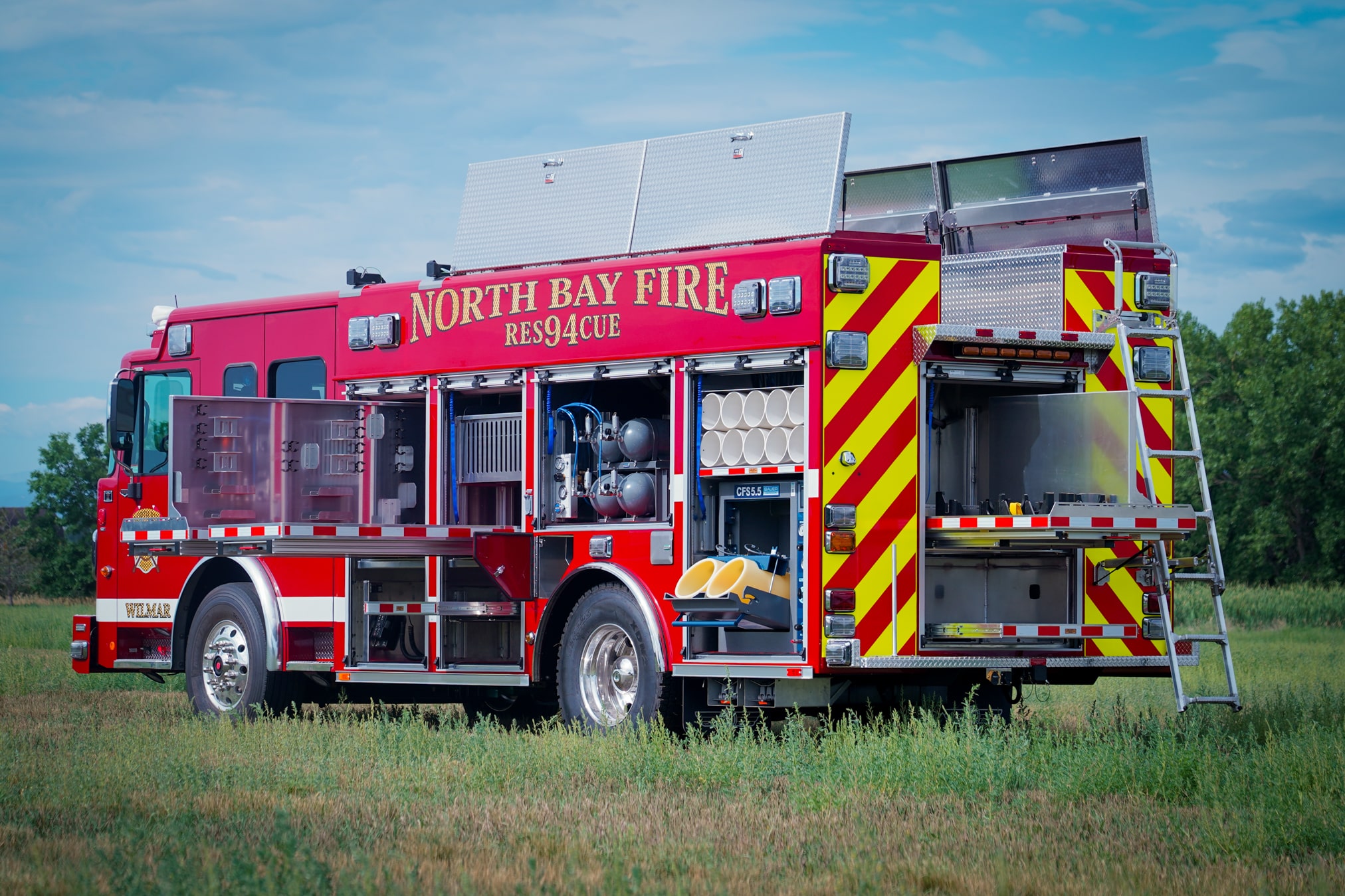

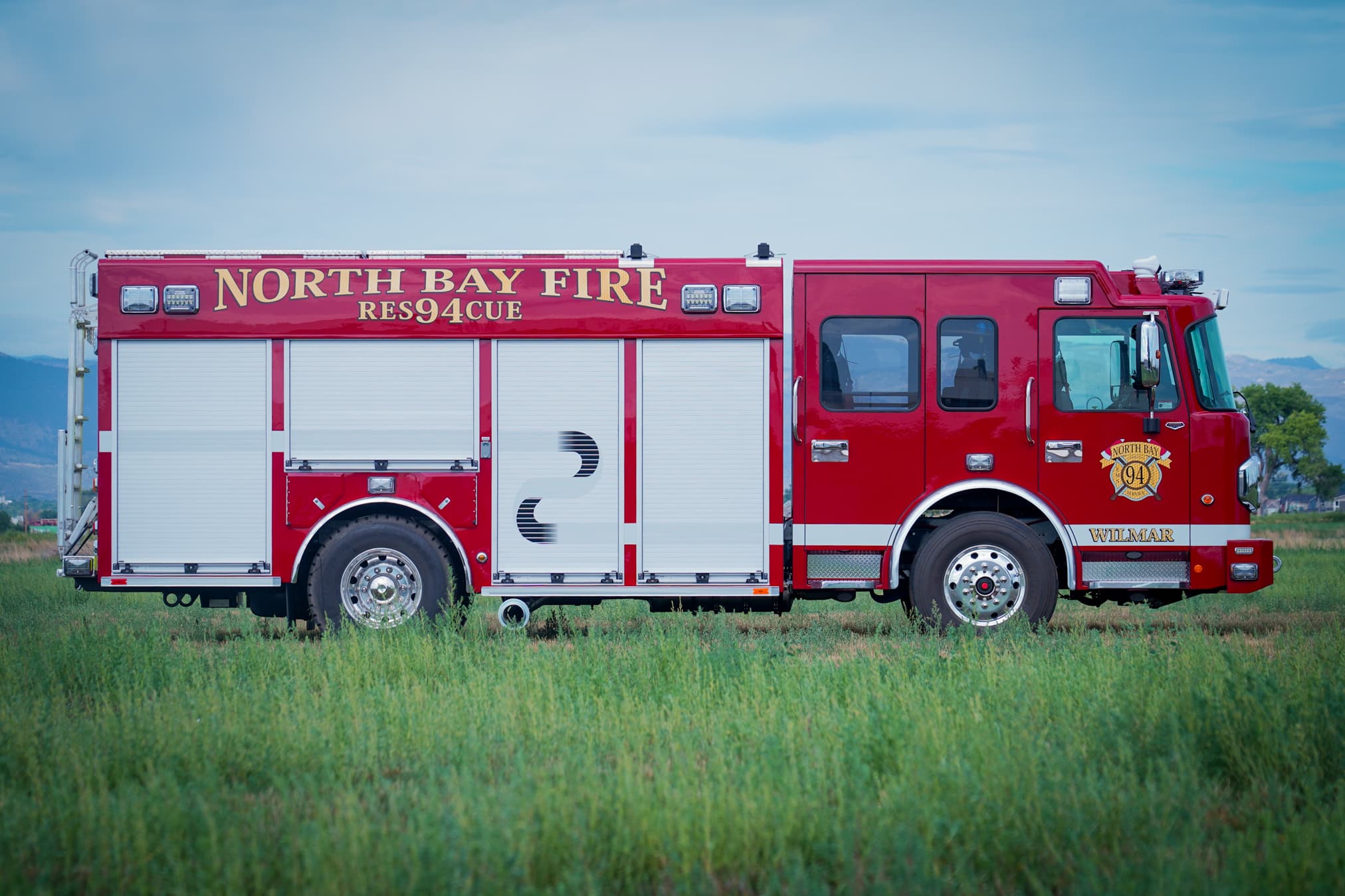

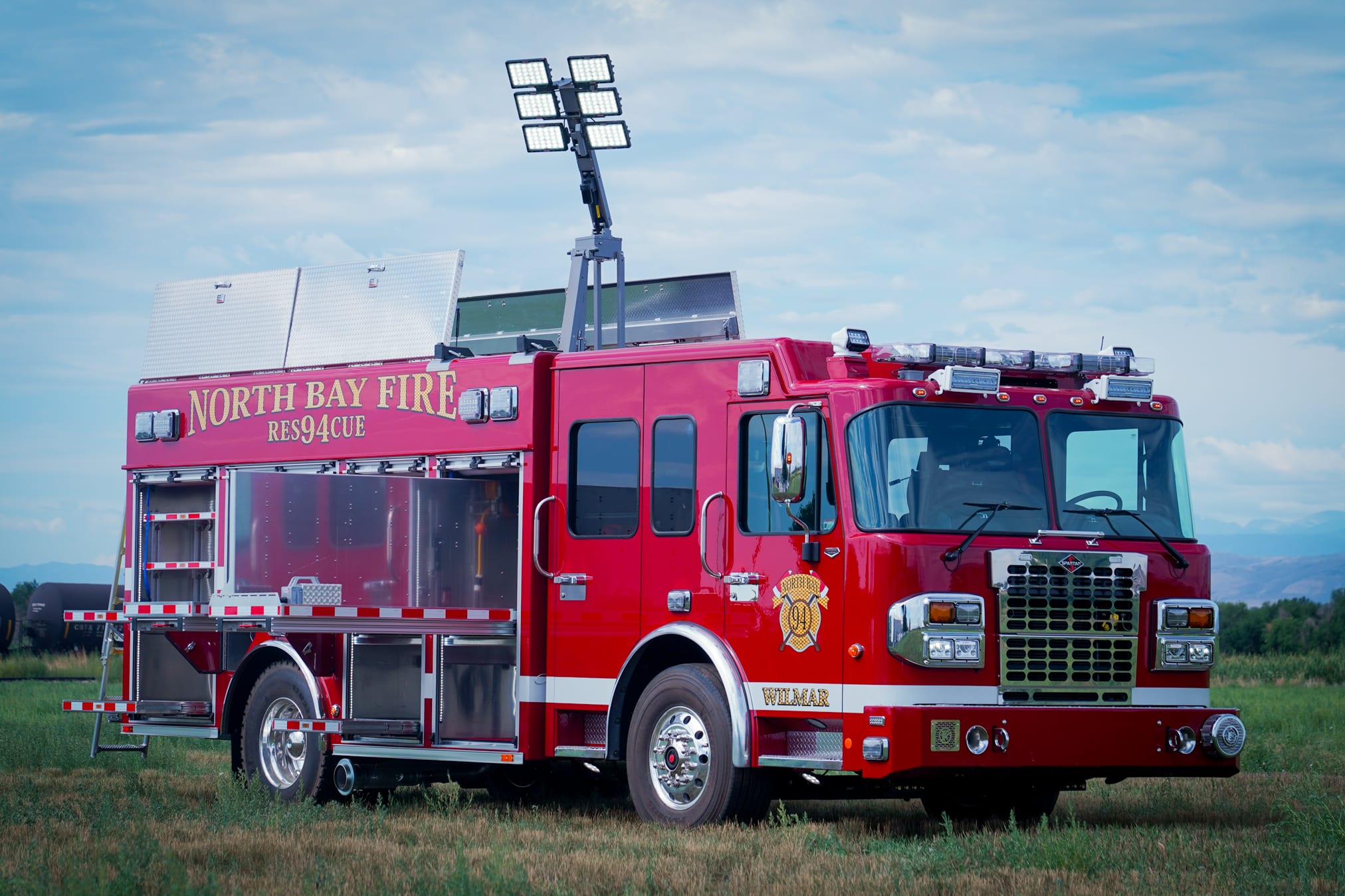

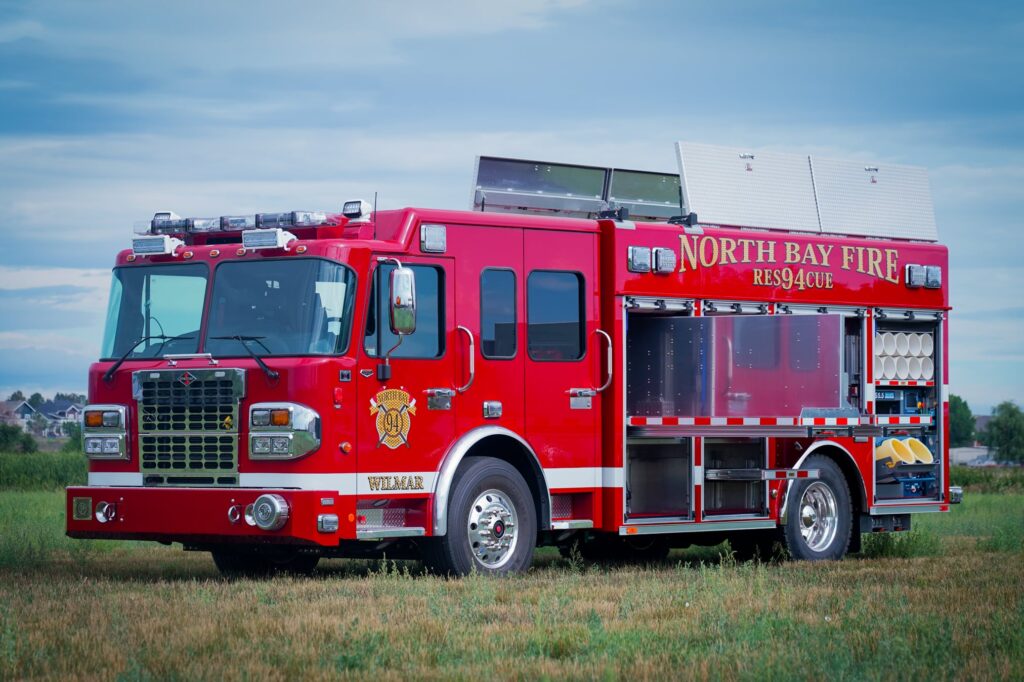

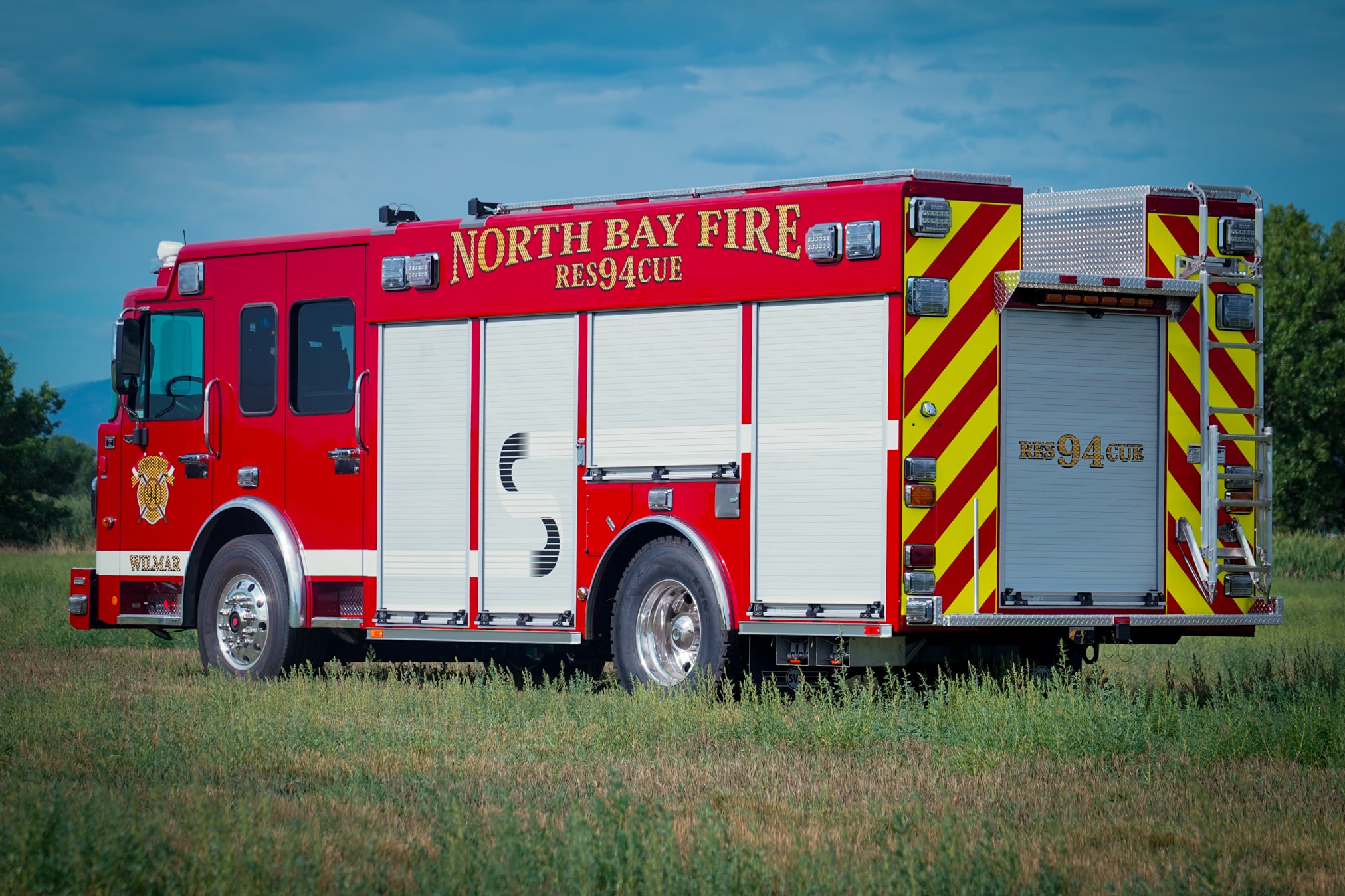

When spec’ing its new Air/Light Unit, North Bay Fire Rescue and the Wilmar Volunteer Fire Department chose a 16′ aluminum SVI body, mounted on a Spartan Metro Star MFD chassis with four doors and 10″ raised roof. The chassis houses a Cummins L9 450HP diesel engine. This apparatus comes with a Bauer BP-13H-E3 air compressor, CFS5.5 2M cylinder filling station, 32,000-watt generator and much more.

For more information about this apparatus, choose one of the options below or contact us for more details.

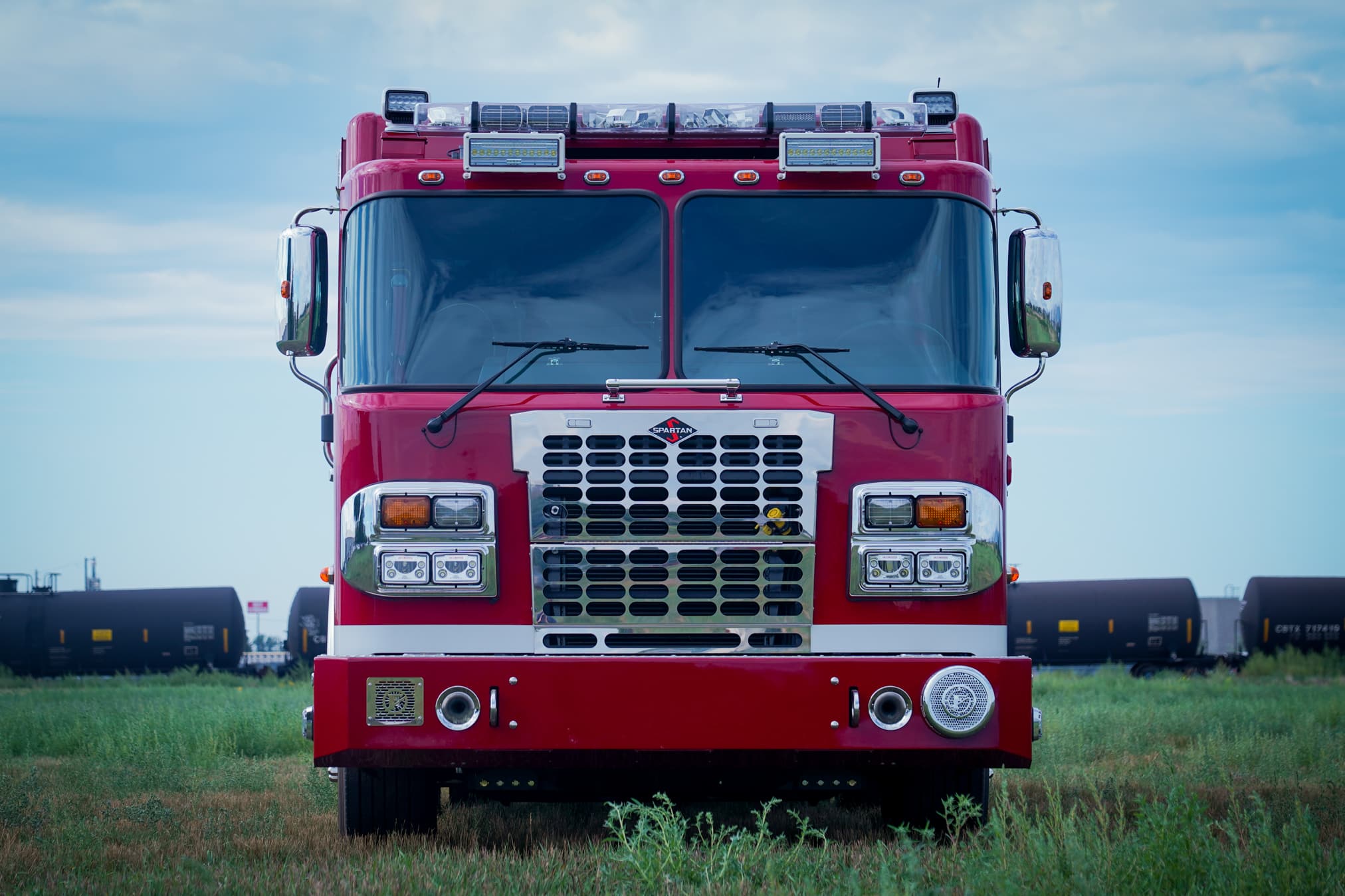

Cab: Spartan Metro Star MFD 10”
Engine: Cummins L9 450HP Diesel
Transmission: Allison EVS 3000
Wheelbase: 172”


Material: Aluminum
Body Length: 16′
Overall Height: 122”
Overall Length: 29′ 7”


  • Bauer BP-13H-E3 Air Compressor

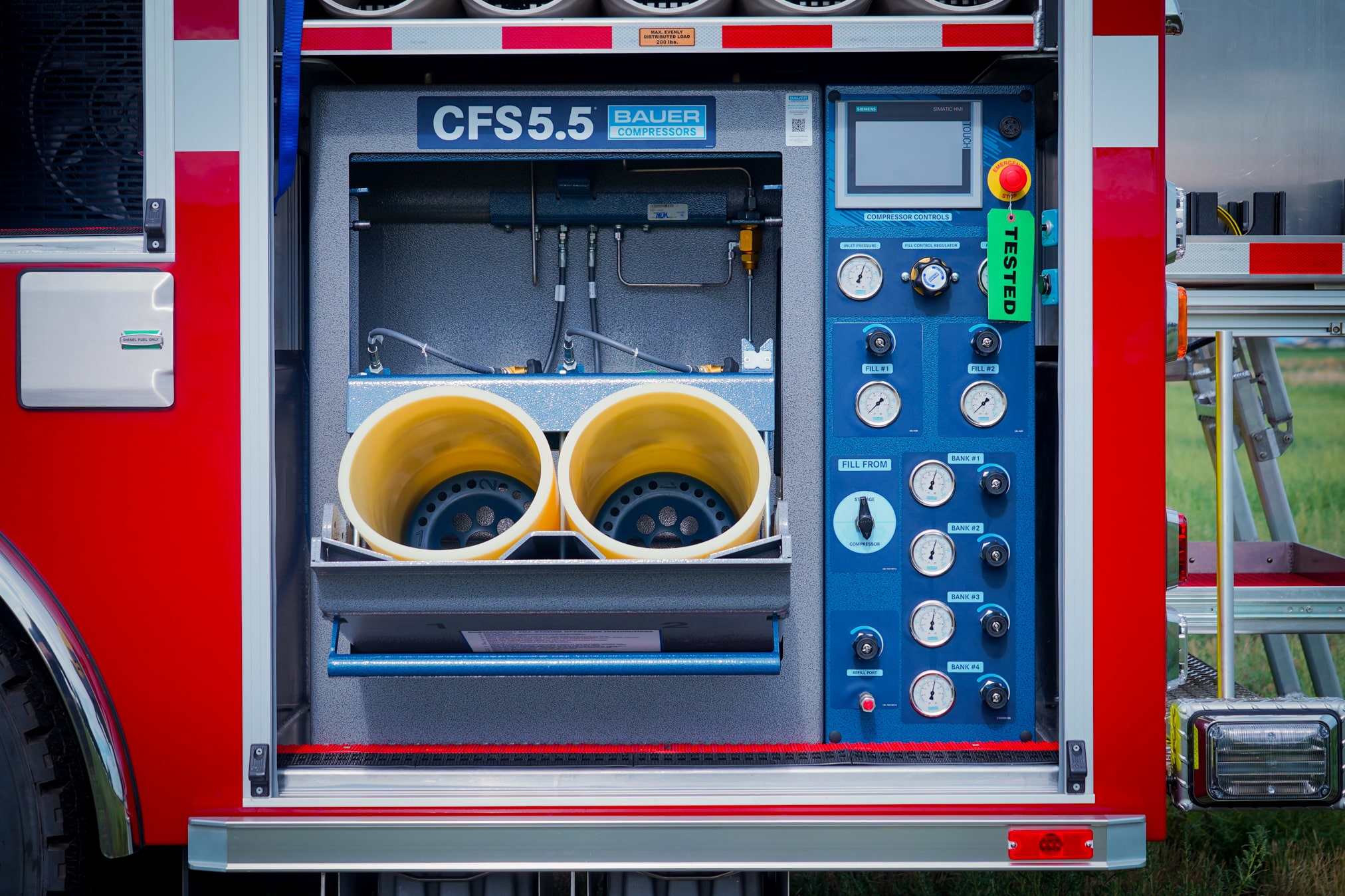

  • Bauer CFS5.5 2M Cylinder Filling Station

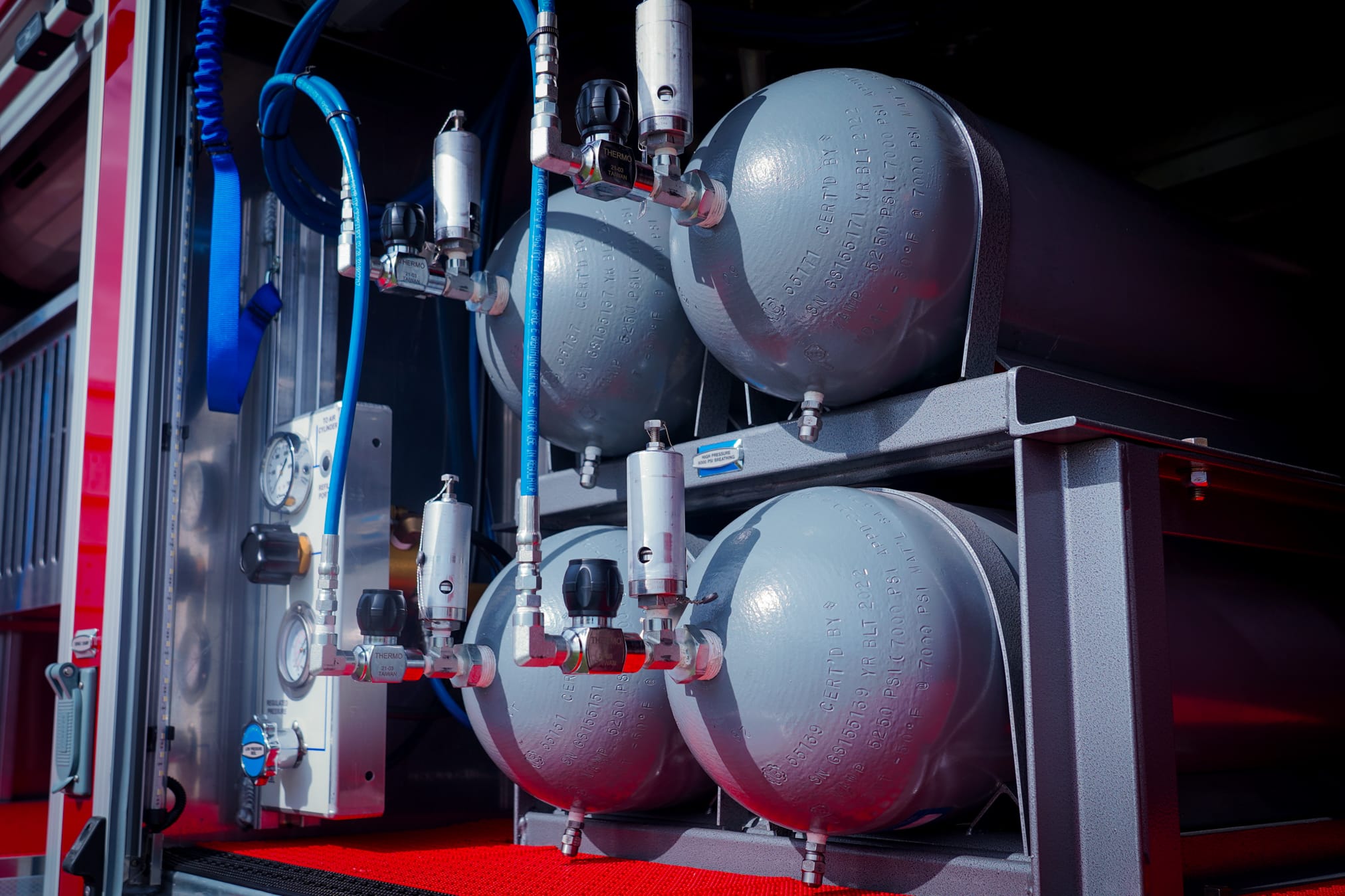

  • (4) ASME 491 SCF @ 6,000 PSI Air Storage
  • 32,000-Watt Onan Protec PTO Generator

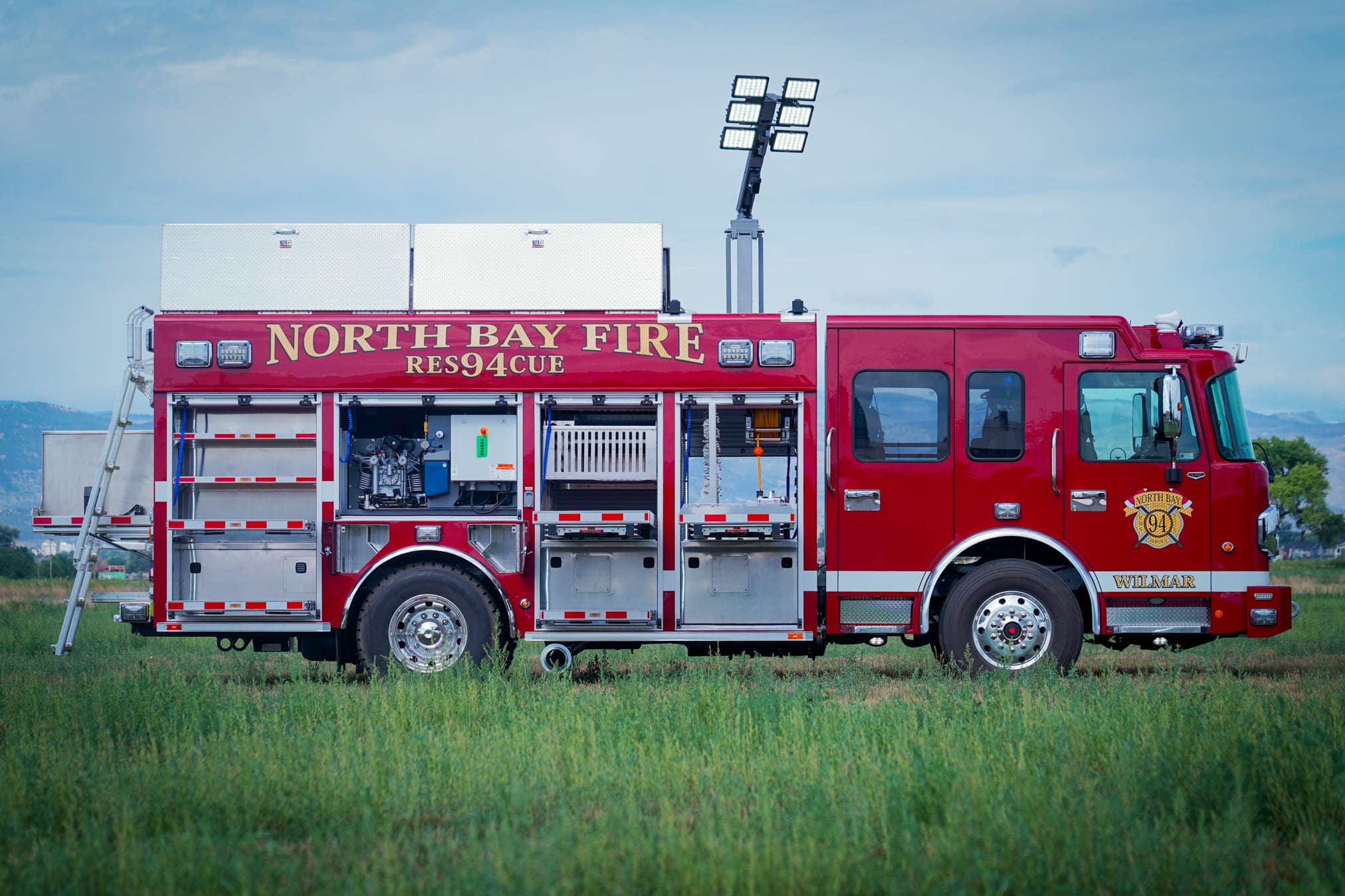

  • Command Light Knight Series Light Tower
  • Tool Mounting for Holmatro Equipment and Paratech
  • OnScene Solutions Access LED lights
  • OnScene Solutions Transverse Heavy-Duty Cargo Slide
  • Hannay EF1514-17-18 Low-Pressure Air Hose Reel
  • Hannay ECR1616-17-18 Electric Cable Reel
